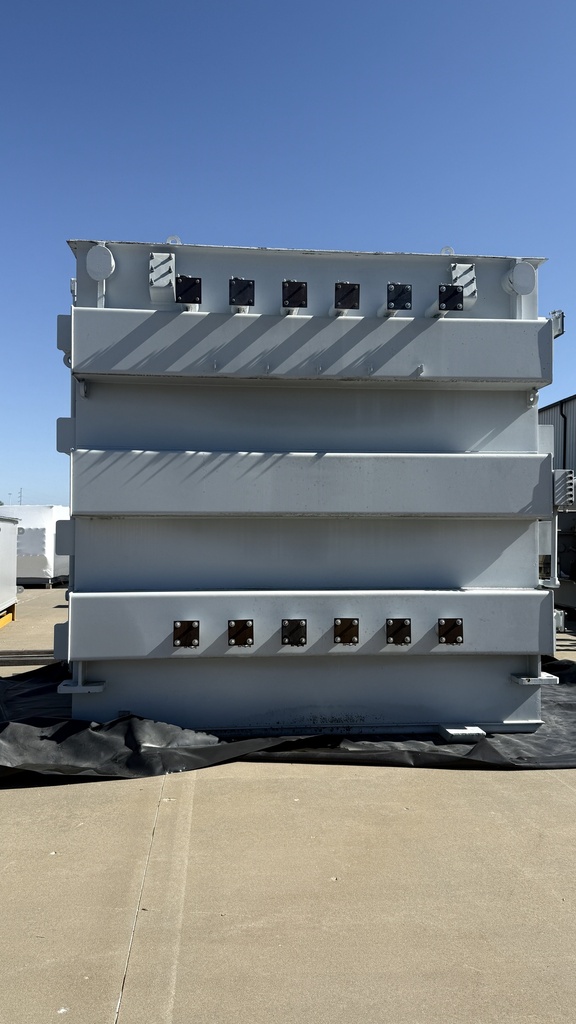

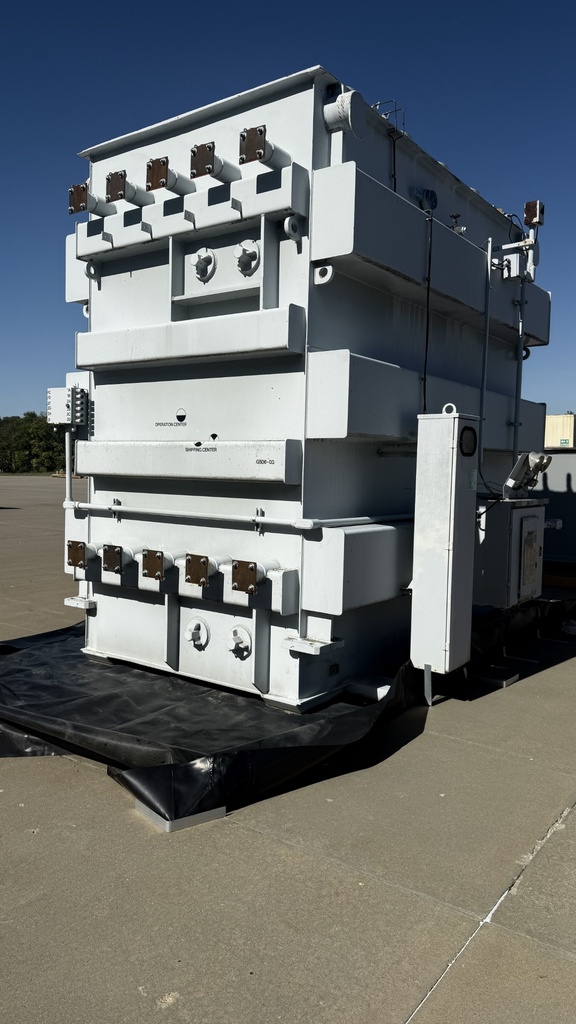

36MVA 69000GrdY x 138000GrdY - 13800D GE Prolec Substation Transformer
Product Number:
047124
Full Product Description
T-6349

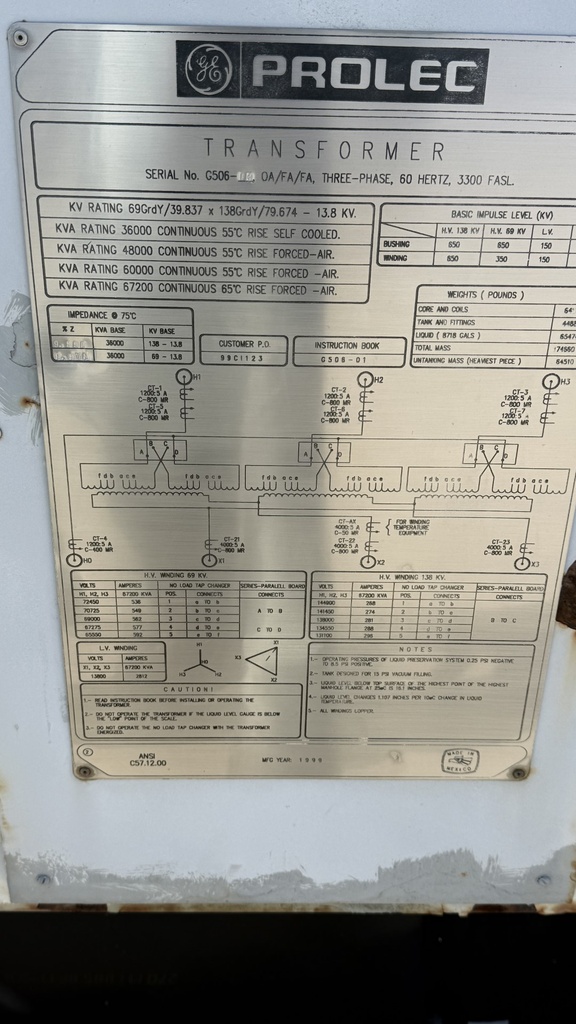

One (1) 36/48/60/67.2 MVA GE Prolec Dual Primary Substation Transformer
3 ph, 60 Hz, OA/FA/FA, 55/65 Deg C Rise,
All Copper Windings, 9.99% Impedance, Liquid Level Gauge,
Liquid Temp Gauge, Vacuum Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Top-Top Bushings
HV1: 69000 Grd Wye BIL: 650 KV
HV2: 138000 Grd Wye BIL: 650 KV
LV: 13800 Delta BIL: 150 KV
HV1 Taps: 72450-70725-69000-67275-65550
HV2 Taps: 144900-141450-138000-134550-131100
Taps run parallel
CORE & COIL WEIGHT lb
TANK & FITTINGS WEIGHT lb
FLUID WEIGHT lb
FLUID GALLONS 8718 gal (US)
TOTAL WEIGHT 174660 lb
Dimensions: Coming Soon
