  2. 114MVA 230000GrdY - 13800D GE Substation Transformer with 13800D Tertiary

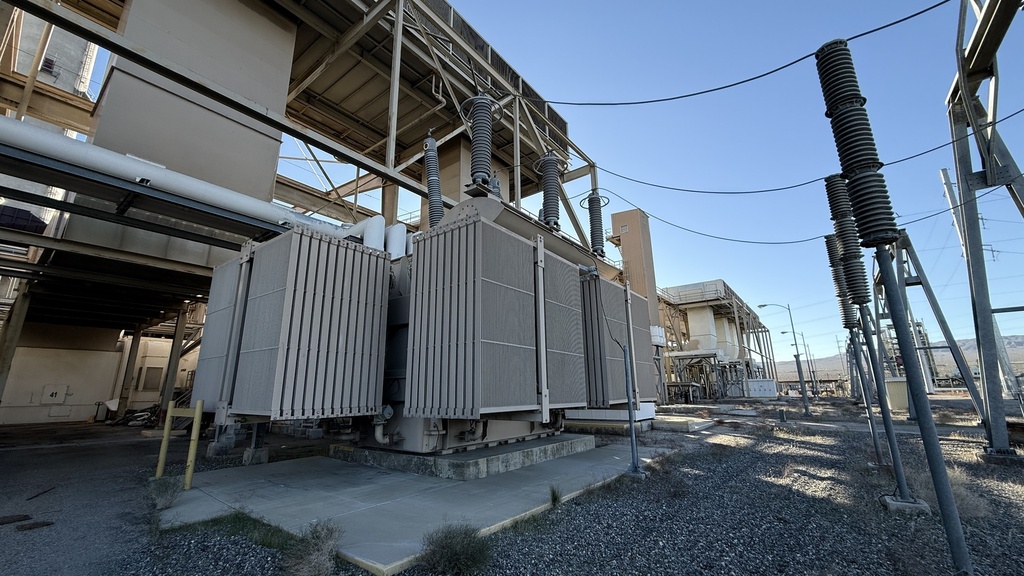

114MVA 230000GrdY - 13800D GE Substation Transformer with 13800D Tertiary

https://belyeapower.redstormlabs.com/web/image/product.template/36708/image_1920?unique=632d99c

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 047103
    Request Quote

    Full Product Description

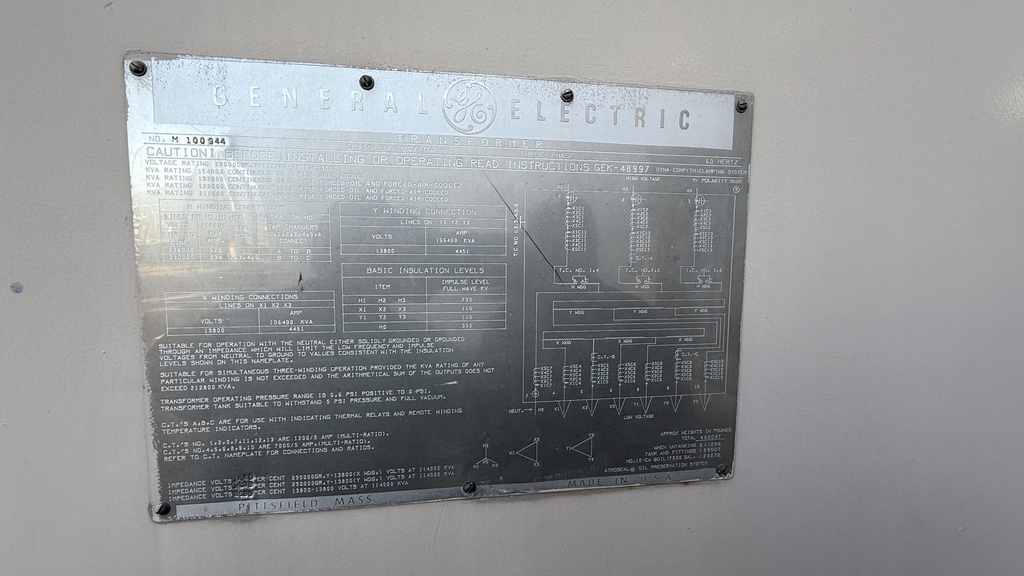

    ONE (1) 114/152/190/212.6 MVA GE Substation Transformer, with 13800D Tertiary
    3 Ph, 60HZ, 55/65 Degree C Rise, 14.40% Impedance, OA/FOA/FOA,
    Top-Top bushings, Vacuum Pressure Relay, Pressure Relief Valve,
    Liquid Temp Gauge, Liquid Level Gauge, D&S Valve

    HV: 230000 GrdWye HV BIL: 750kV
    LV: 13800 Delta LV BIL: 110kV
    Tertiary: 13800 Delta BIL: 110kV
    TAPS: 236000-230000

    TOTAL WEIGHT: 463067 LBS
    CORE & COILS: 211288 LBS
    TANK & FITTS: 122507 LBS
    LIQUID : 129272 LBS (17352 GAL)
