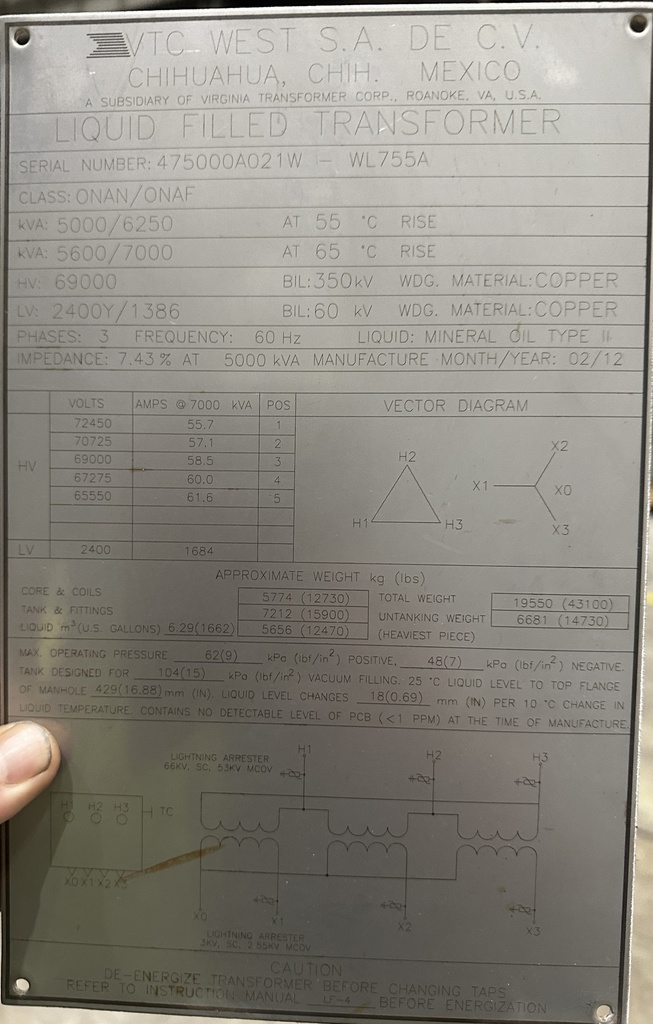

5 MVA 69000D - 2400Y Virginia Substation Transformer

ONE (1) 5/5.6/6.25/7 MVA Virginia Substation Transformer,
3 Ph, 60HZ, 55/65 Degree C Rise, 7.43% Impedance, ONAN/ONAF,
Top-Top bushings, Vacuum Pressure Relay, Pressure Relief Valve,
Liquid Temp Gauge, Liquid Level Gauge, D&S Valve

HV: 69000 Delta HV BIL: 350kV
LV: 2400 Wye LV BIL: 60kV
TAPS: 72450-70725-69000-67275-65550

TOTAL WEIGHT: 19550 LBS
CORE & COILS: 12730 LBS
TANK & FITTS: 15900 LBS
LIQUID : 12470 LBS (1662 GAL)
