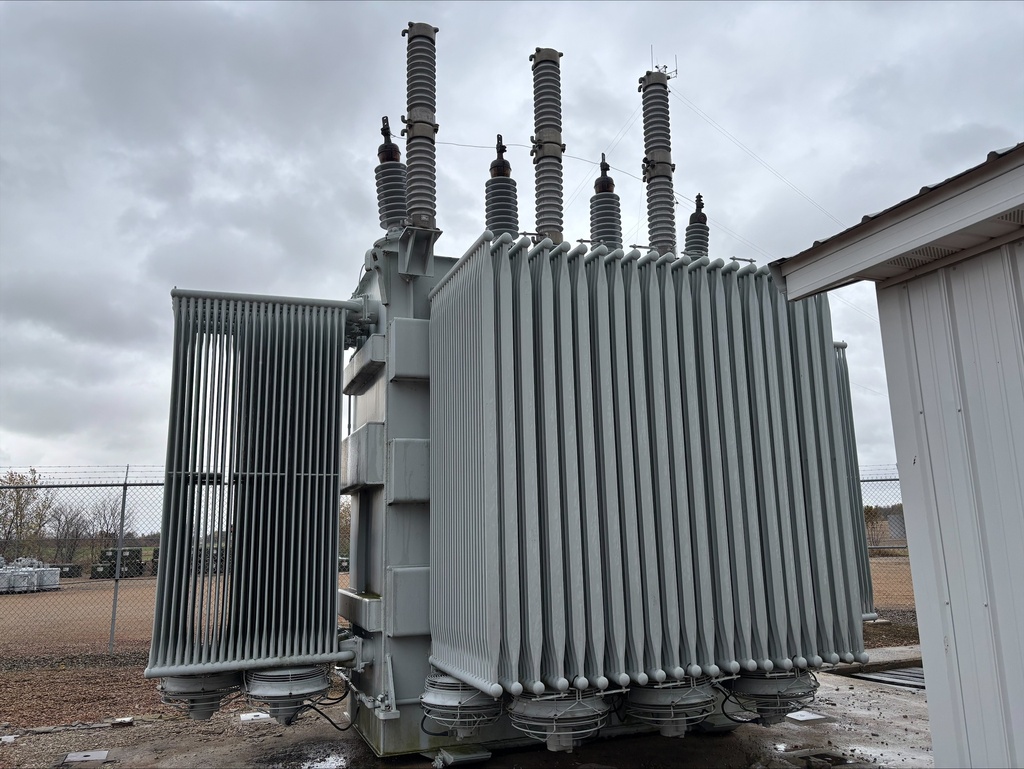

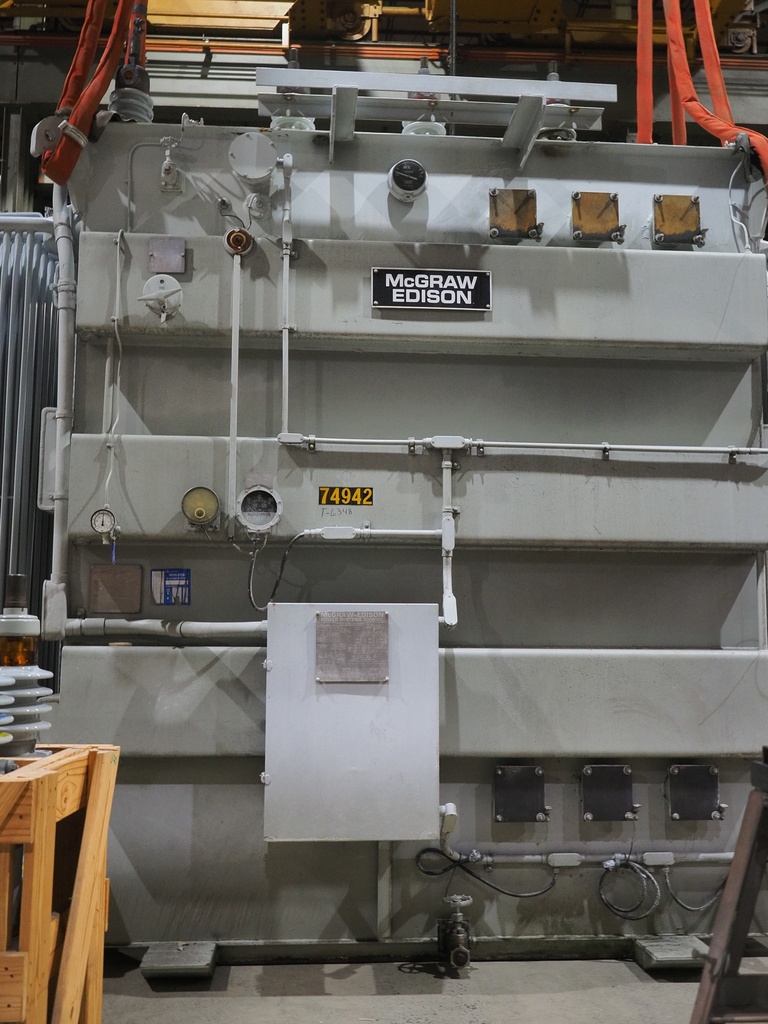

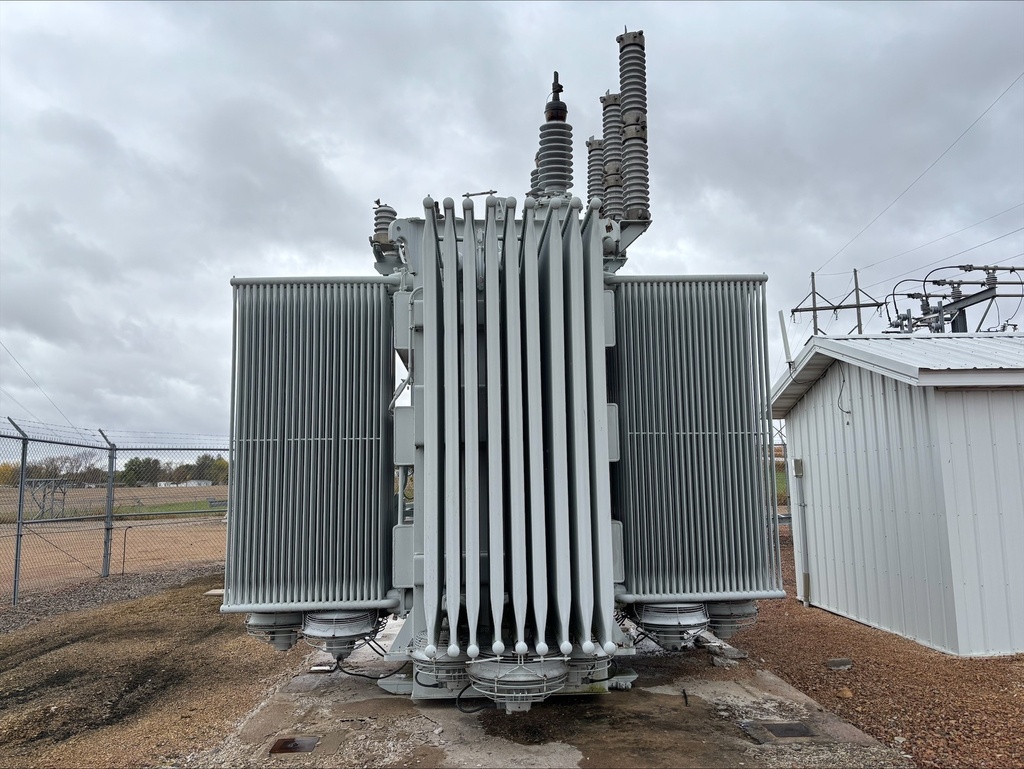

15 MVA 69000Y - 13800Y McGraw-Edison Substation Transformer, with 2400D Tertiary

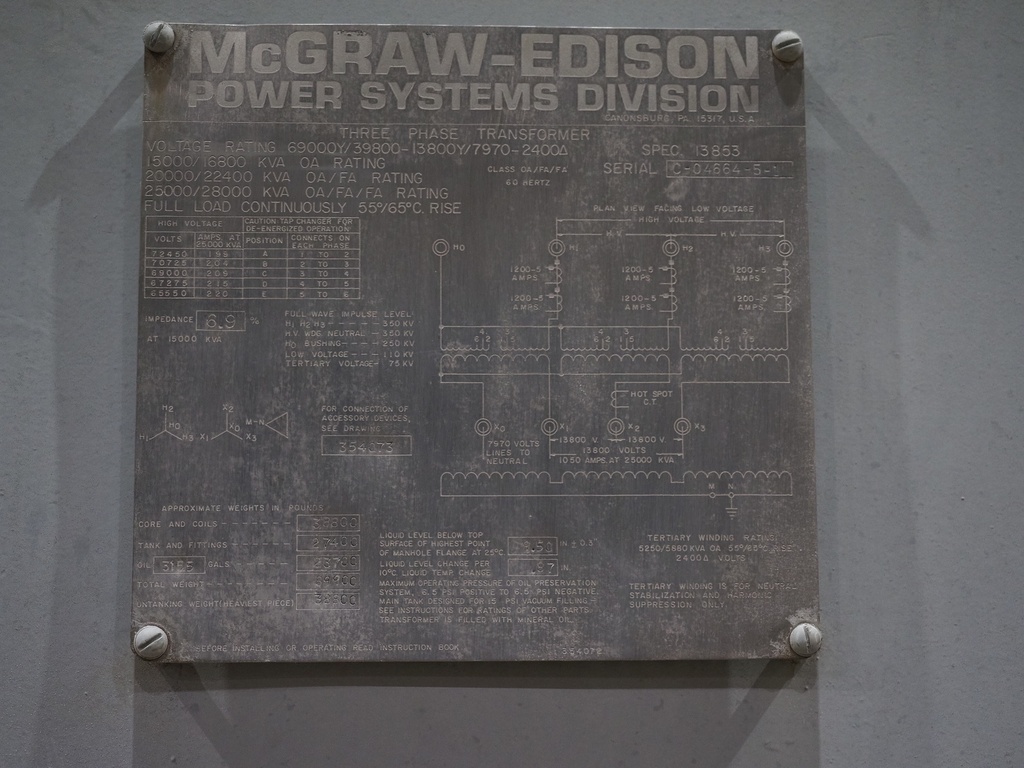

ONE (1) 15/20/25/28 MVA McGraw-Edison Substation Transformer, with 2400D Tertiary
3 Ph, 60HZ, 55/65 Degree C Rise, 6.9% Impedance, OA/FA/FA,
Top-Top bushings, Vacuum Pressure Relay, Pressure Relief Valve,
Liquid Temp Gauge, Liquid Level Gauge, D&S Valve

HV: 69000 Wye HV BIL: 350kV
LV: 13800 Wye LV BIL: 110kV
Tertiary: 2400 Delta BIL: 75kV
TAPS: 72450-70725-69000-67275-65550

TOTAL WEIGHT: 89900 LBS
CORE & COILS: 38800 LBS
TANK & FITTS: 27400 LBS
LIQUID : 23700 LBS (3155 GAL)
