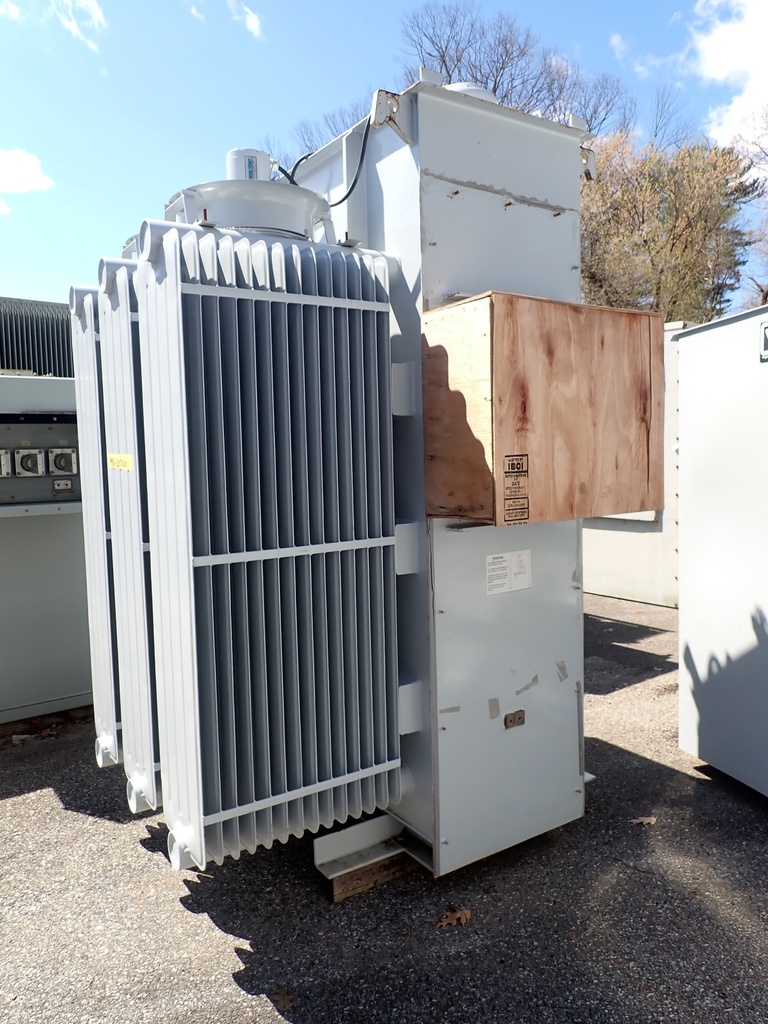

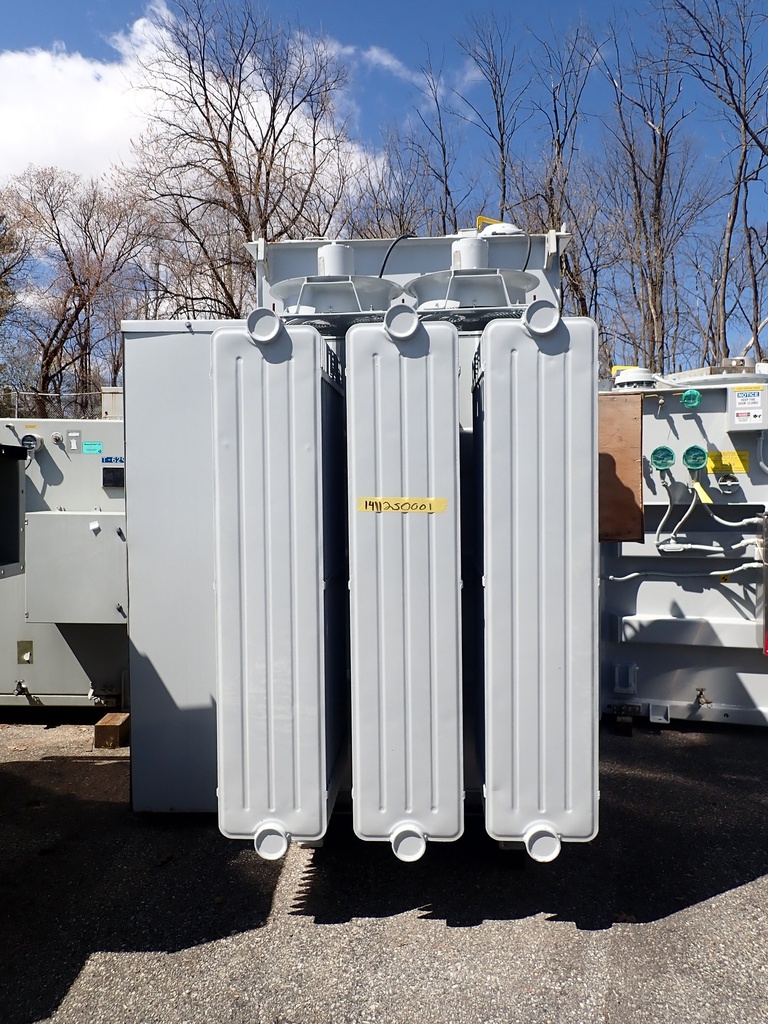

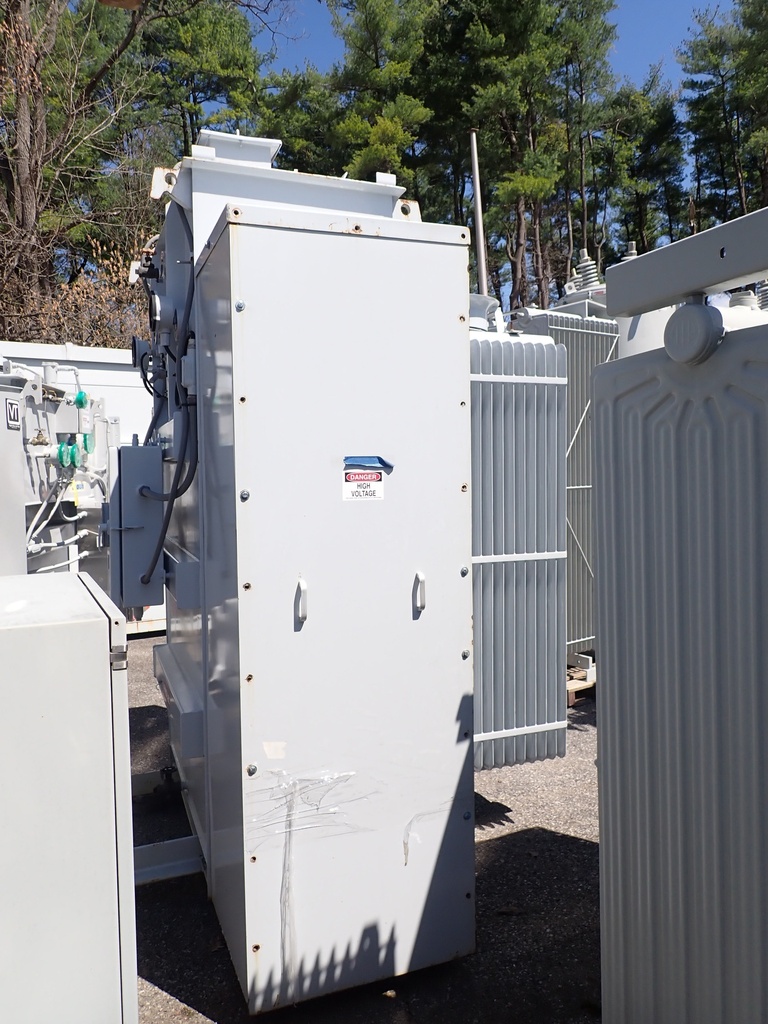

1500/1680/1725/1932 KVA 4160 Delta 480/277 GE Substation Transformer
Substation Transformer
Product Number:
047050
Full Product Description
1500/1680/1725/1932 KVA General Electric Substaion Transformer

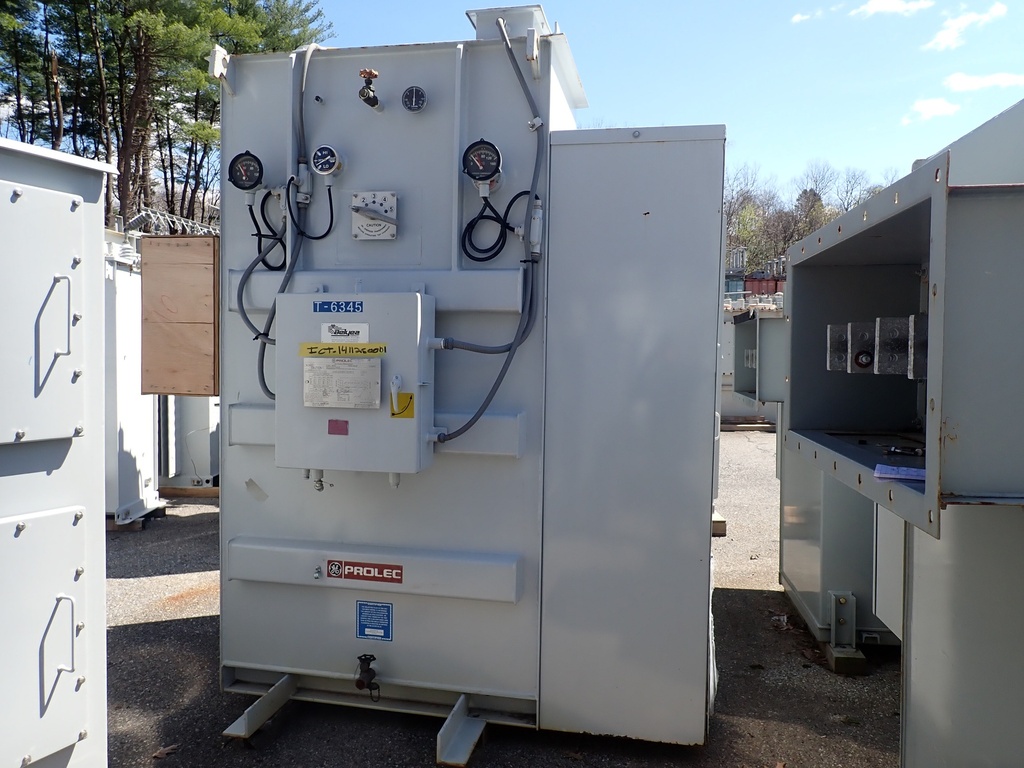

55/65 Deg C Rise, All Copper Windings, Class OA/FA, Liquid Temp Gauge
Liquid Level Gauge, Winding Temp Gauge, Vacuum Pressure Gauage, Pressure
Relief Device, Side x Side, Tap Changer, Drain and Sample valve

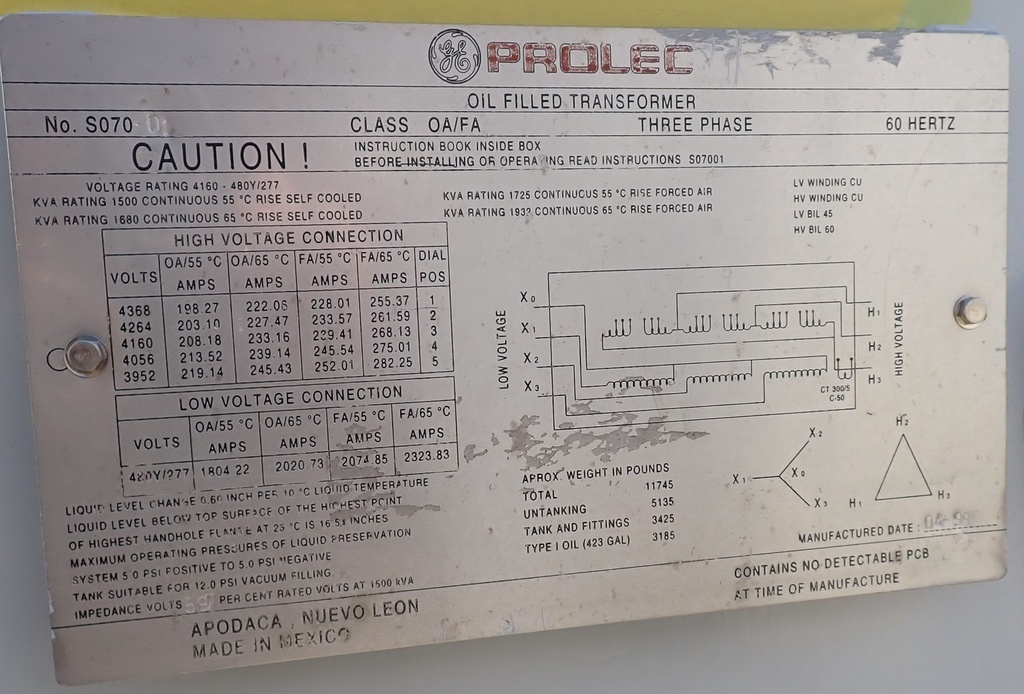

HV: 4160 Delta 60 kV BIL
LV: 480Y/277 WYE 45 kV BIL
TAPS: 4368-4264-4160-4056-3952
Total Weight: 11745 LBS
Core & Coils: 5135 LBS
Tank & Fittings: 3425 LBS
Liquid (Oil): 3185 LBS (423 GAL)
