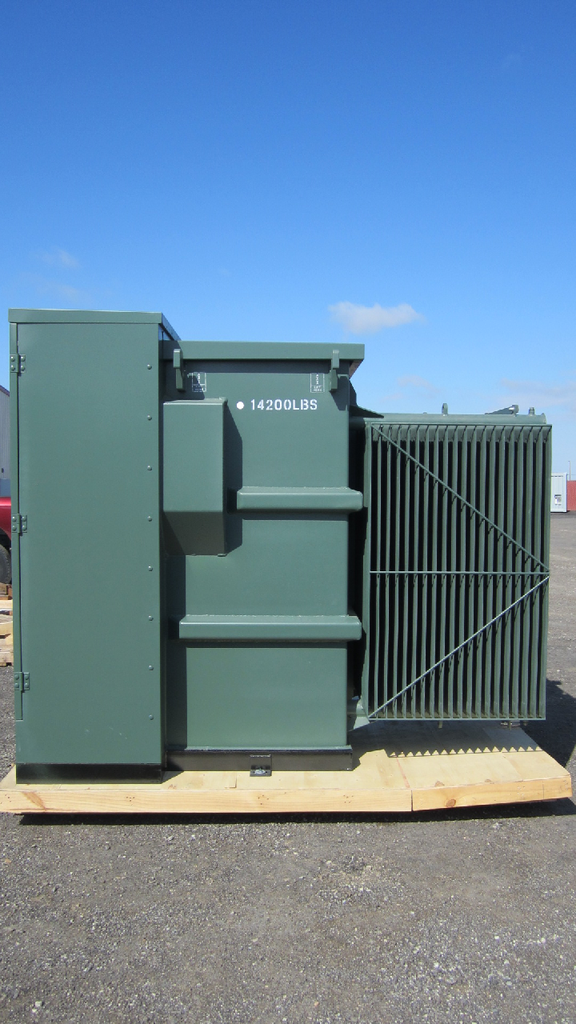

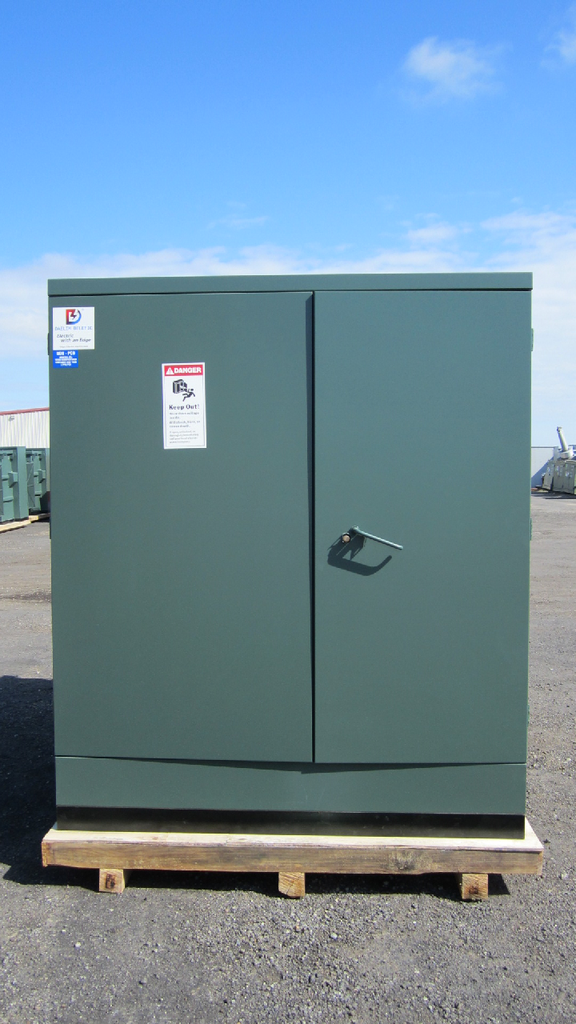

2550 kVA 13200D - 480GrdY Daelim Electric Padmount Transformer with J-Taps
Product Number:
047029
Full Product Description

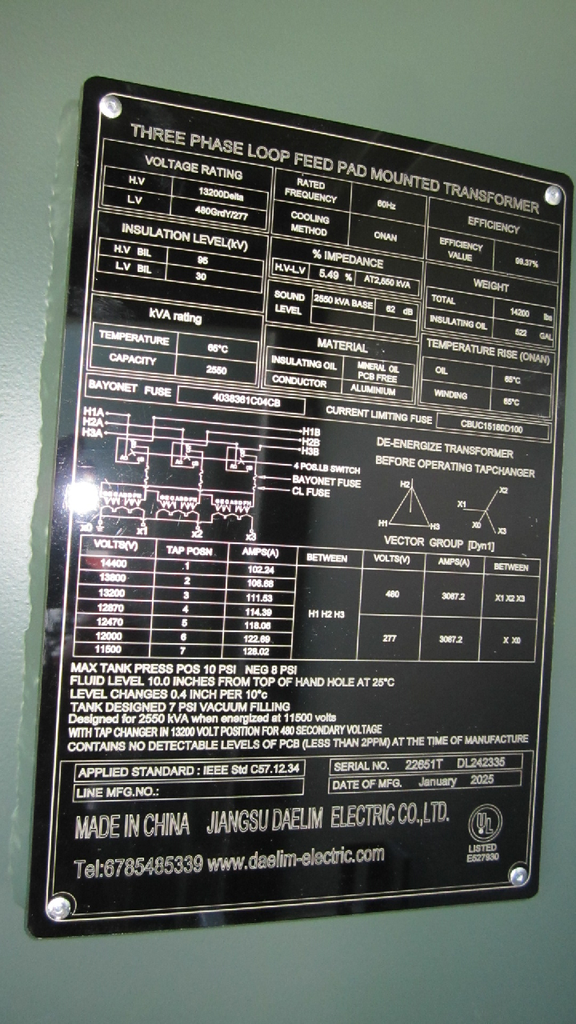

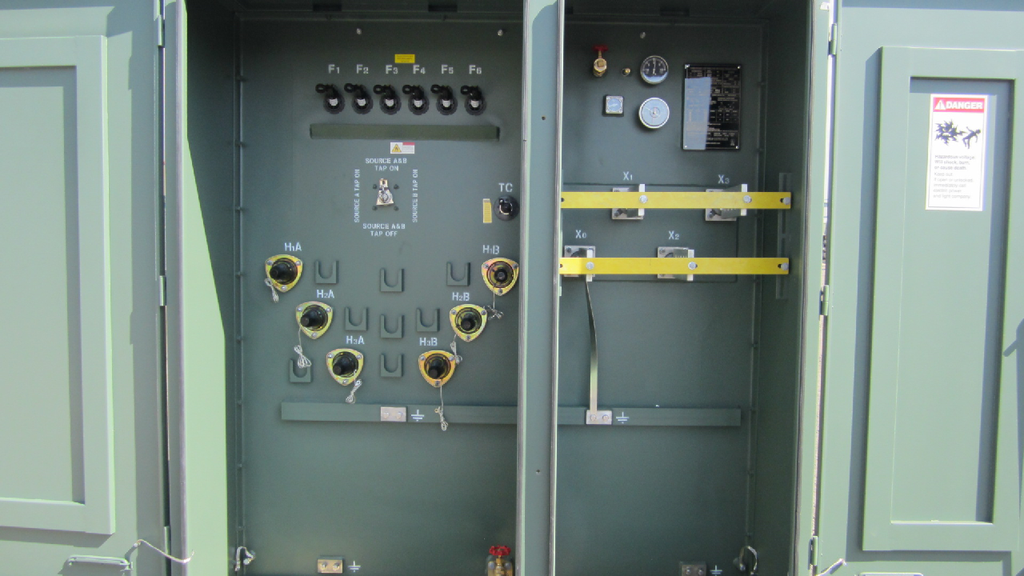

ONE (1) 2550 KVA Daelim Pad-mount Transformer, ONAN, 3 Ph, 60HZ,
65 Degree C Rise, 5.49% Imopedance, Live Front, Loop Feed,
AL Windings, Bayonet Fuses
HV: 13200D HV BIL: 95kV
LV: 480GrdY/277 LV BIL: 30kV
TAPS: 14400-13800-13200-12870-12470-12000-11500
TOTAL WEIGHT: 14200 LBS
CORE & COILS: LBS
TANK & FITTS: LBS
LIQUID : LBS (522 GAL)
