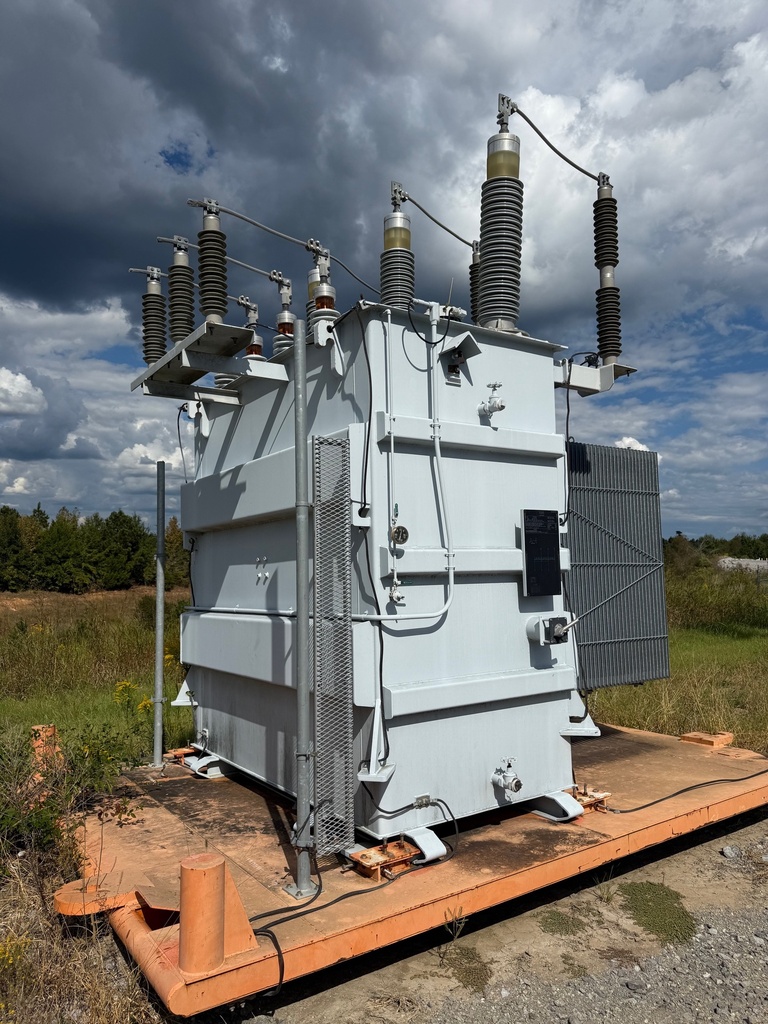

10/11.2 MVA 115000D - 22900Y/13221 ABB Substation Transformer

One (1) 10/11.2 MVA ABB Substation Transformer
3 ph, 60 Hz, ONAN, 55/65 Deg C Rise,

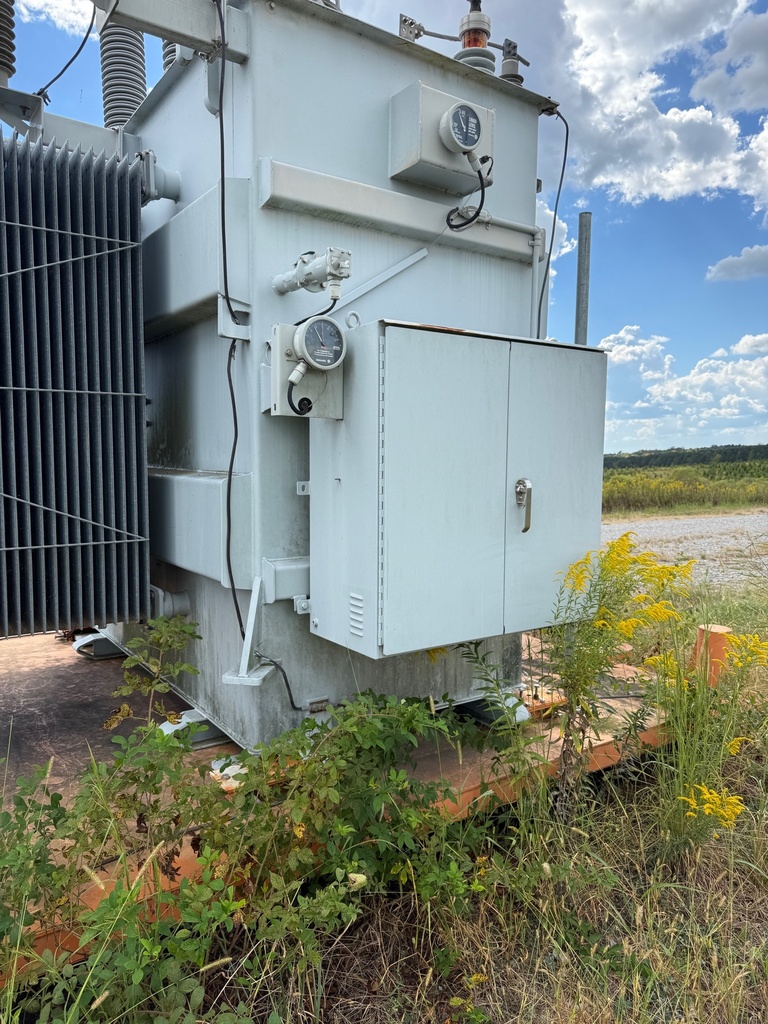

All Copper Windings, 7.76% Impedance, Liquid Level Gauge,
Liquid Temp Gauge, Vacuum Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Top-Top Bushings

HV: 115000 Deta BIL:4500 KV
LV: 22900 Wye BIL: 150 KV
Taps: 120750-117875-115000-112125-109250

CORE & COIL WEIGHT 26561 lb
TANK & FITTINGS WEIGHT 13430 lb
FLUID WEIGHT 15732 lb
FLUID GALLONS 2098 gal (US)
TOTAL WEIGHT 61500 lb

Dimensions: Coming Soon
