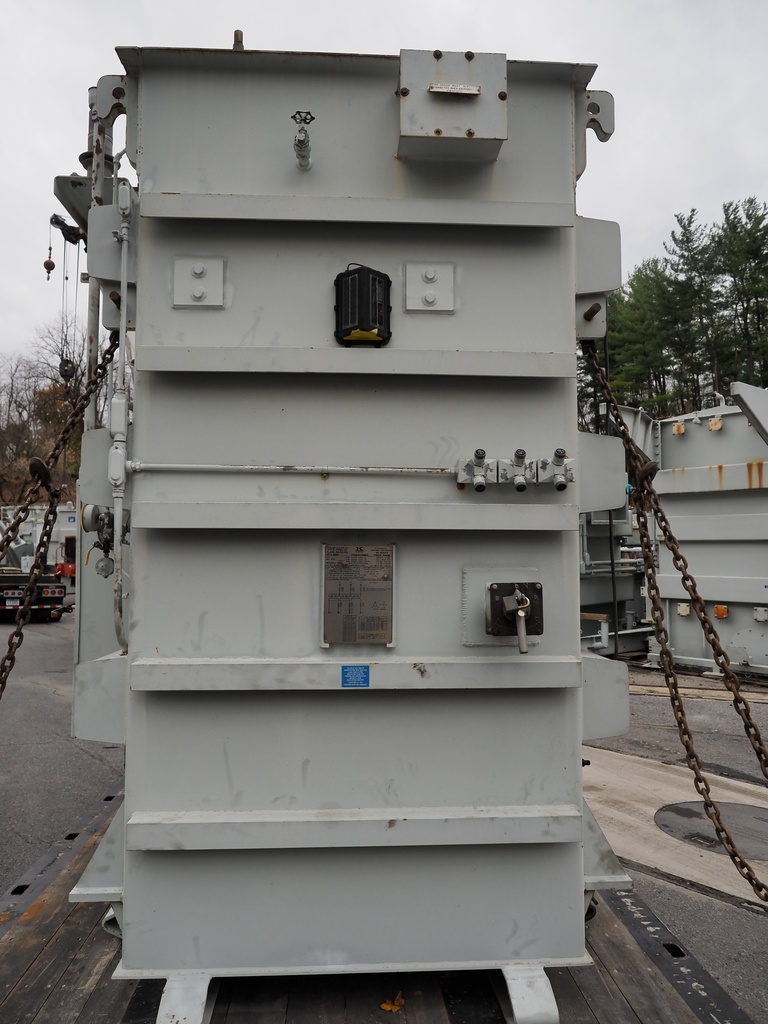

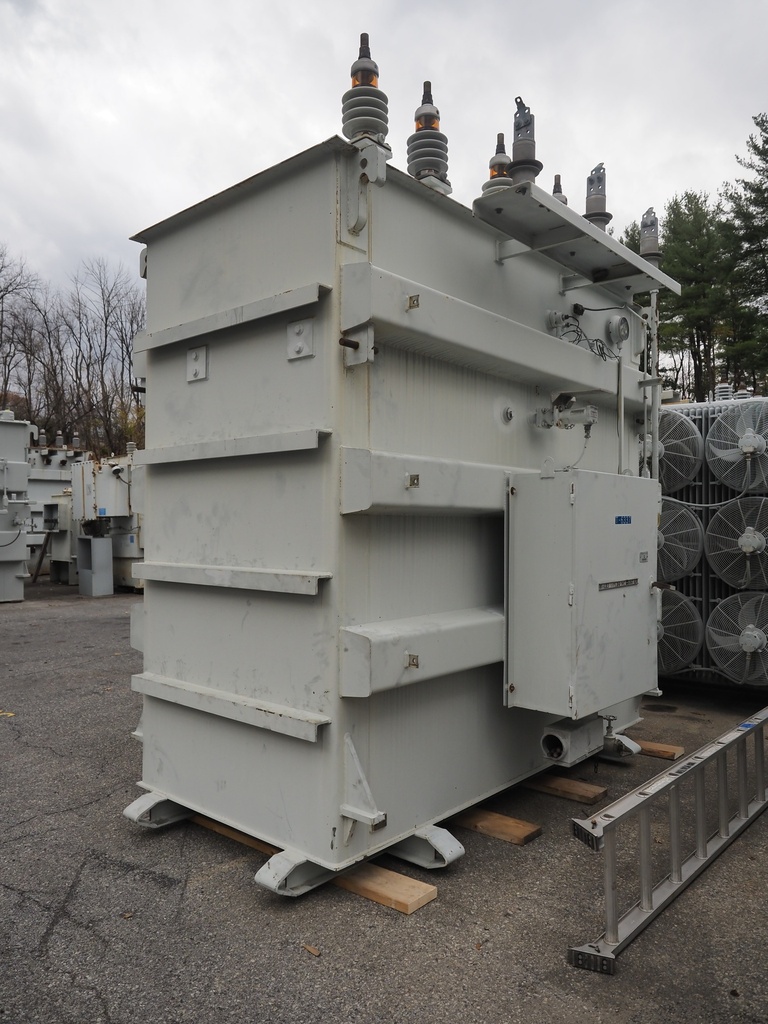

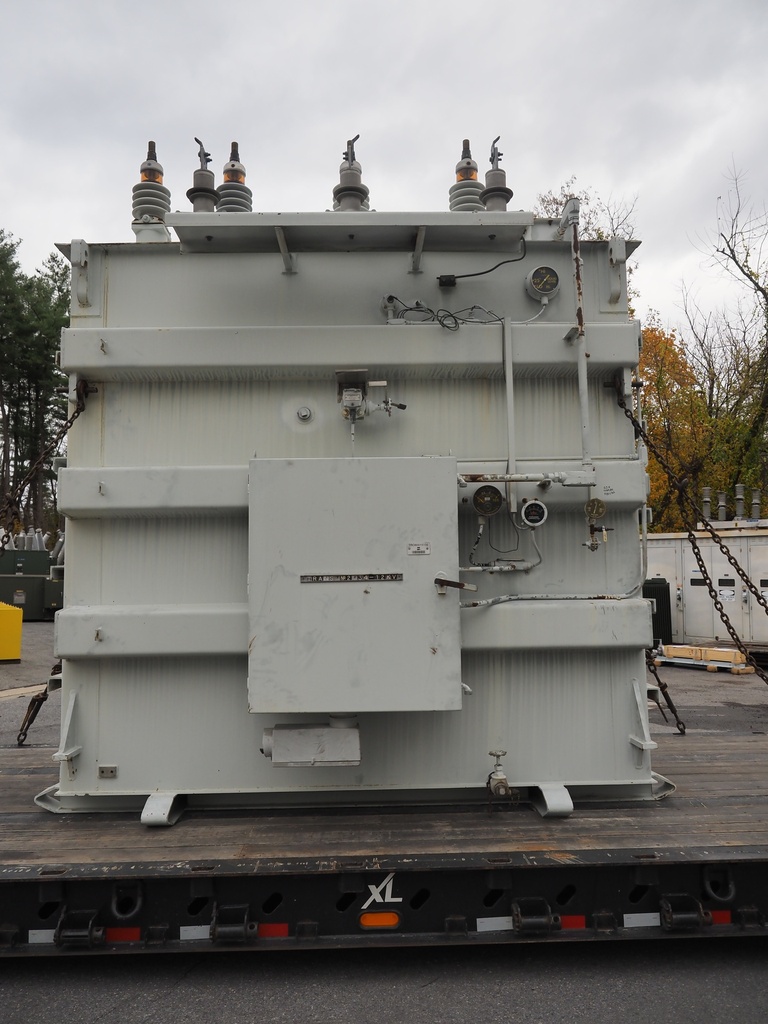

12MVA 34400D - 13090Y Kuhlman Substation Transformer

T-6336

One (1) 12/16/20 MVA Kuhlman Substation Transformer
3 ph, 60 Hz, ONAN/ONAF/ONAF, 65 Deg C Rise, Oil Conservation System,
All Copper Windings, 6.97% Impedance, Liquid Level Gauge,
Liquid Temp Gauge, Vacuum Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Top-Top Bushings

HV: 34400 Deta BIL: 200 KV
LV: 13090 Wye BIL: 110 KV
Taps: 36120-35260-34400-33540-32680

CORE & COIL WEIGHT 38750 lb
TANK & FITTINGS WEIGHT 12274 lb
FLUID WEIGHT 16376 lb
FLUID GALLONS 2183 gal (US)
TOTAL WEIGHT 67400 lb

Dimensions: Coming Soon
