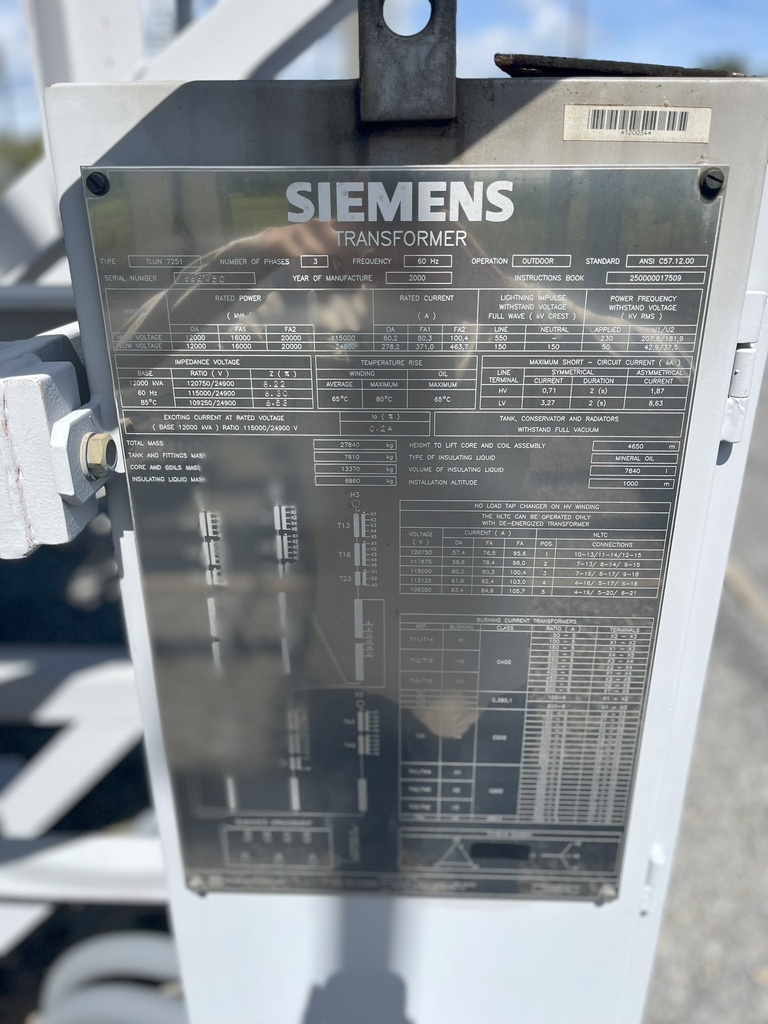

12MVA Siemens 115000D - 24900Y Siemens Substation Transformer

https://belyeapower.redstormlabs.com/web/image/product.template/36561/image_1920?unique=632d99c

Substation Transformer

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 046956
    Request Quote

    Full Product Description


    ONE (1) 12/16/20 MVA Siemens Substation Transformer, 3 PHASE,
    60 HZ, OA/FA1/FA2, 65 Degree C RISE, 8.22% Impedance,
    All CU Windings, Oil filled, Top-Top bushings, Oil Conservation System

    HIGH VOLTAGE: 115000 Delta BIL: 550 KV
    LOW VOLTAGE 1: 24900 WYE BIL: 150 KV
    HV TAPS: 120750-117875-115000-112125-109250

    TOTAL WEIGHT: 61377 LBS.
    CORE & COILS: 29475 LBS.
    TANK & FIT.: 16777 LBS.
    OIL: 15123 LBS. (2071 GAL)

    SHIPPING DIMS: TBD
