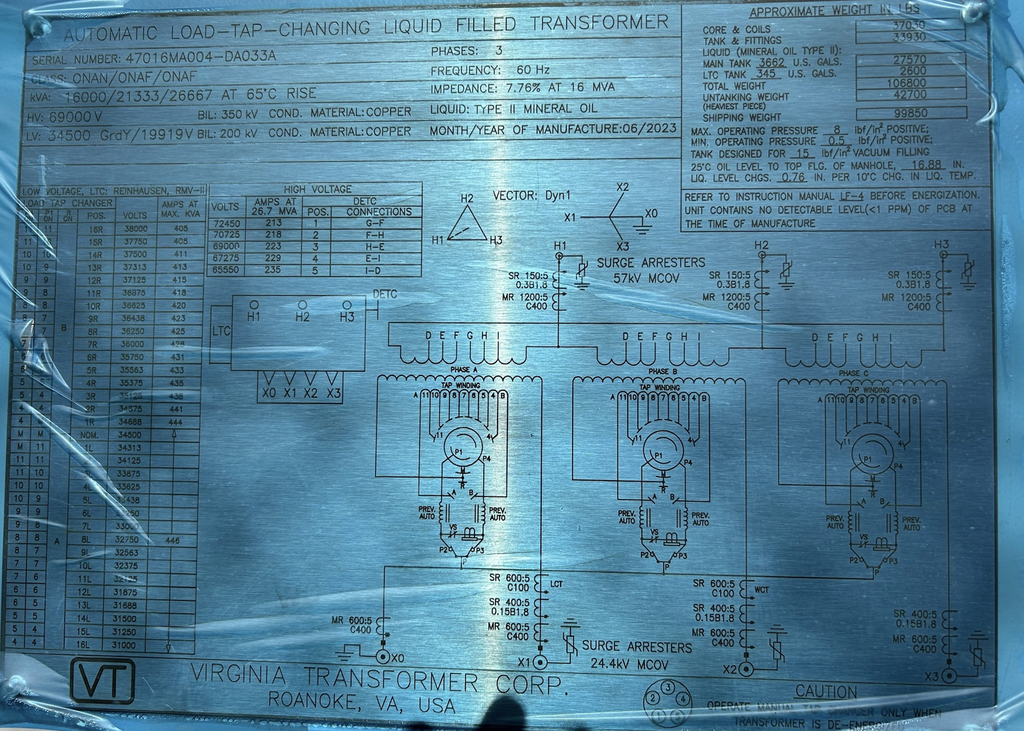

16MVA 69000D - 34500Y VA LTC Substation Transformer

ONE (1) UNUSED 16/21.3/26.7 MVA VA TRANSFORMER LTC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF/ONAF, 65 DEGREE C RISE, 7.76% IMPEDANCE, ALL COPPER
WINDINGS

HIGH VOLTAGE: 69000 DELTA BIL: 350 KV
LOW VOLTAGE: 34500 WYE BIL: 200 KV
LV TAPS: +/- 0.625% IN 32 STEPS

TOTAL WEIGHT: 106,800 LBS.
CORE & COILS: 37,030 LBS.
TANK & FIT.: 33,930 LBS.
OIL: LBS. ( GAL)

SHIPPING DIMS: TBD
