72 MVA 138000GrdY - 13800D X 13800D Waukesha Substation Transformer

https://belyeapower.redstormlabs.com/web/image/product.template/36547/image_1920?unique=632d99c

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 046942
    Request Quote

    Full Product Description

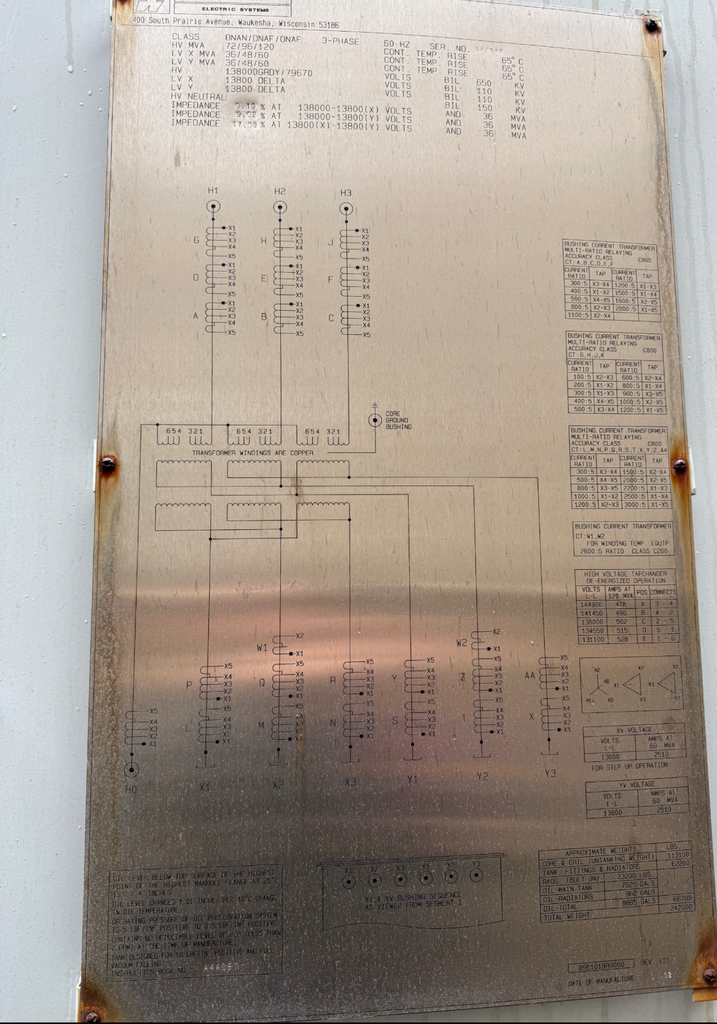

    ONE (1) 72/96/120 MVA Waukesha Substation Transformer, 3 Ph,
    60 HZ, ONAN/ONAF/ONAF, 65 Degree C Rise, 8.10% Impedance,
    CU Windings, Mineral Oil Filled, Dual Secondary,

    HV: 138000 Grd Wye BIL: 650 KV
    LV1: 13800 Delta BIL: 110 KV
    LV2: 13800 Delta BIL: 110 KV

    TOTAL WEIGHT: 242,000 LBS.
    CORE & COILS: 113,100 LBS.
    TANK & FIT.: 62,200 LBS.
    OIL: 66,700 LBS. (8885 GAL)

    SHIPPING DIMS: TBD
