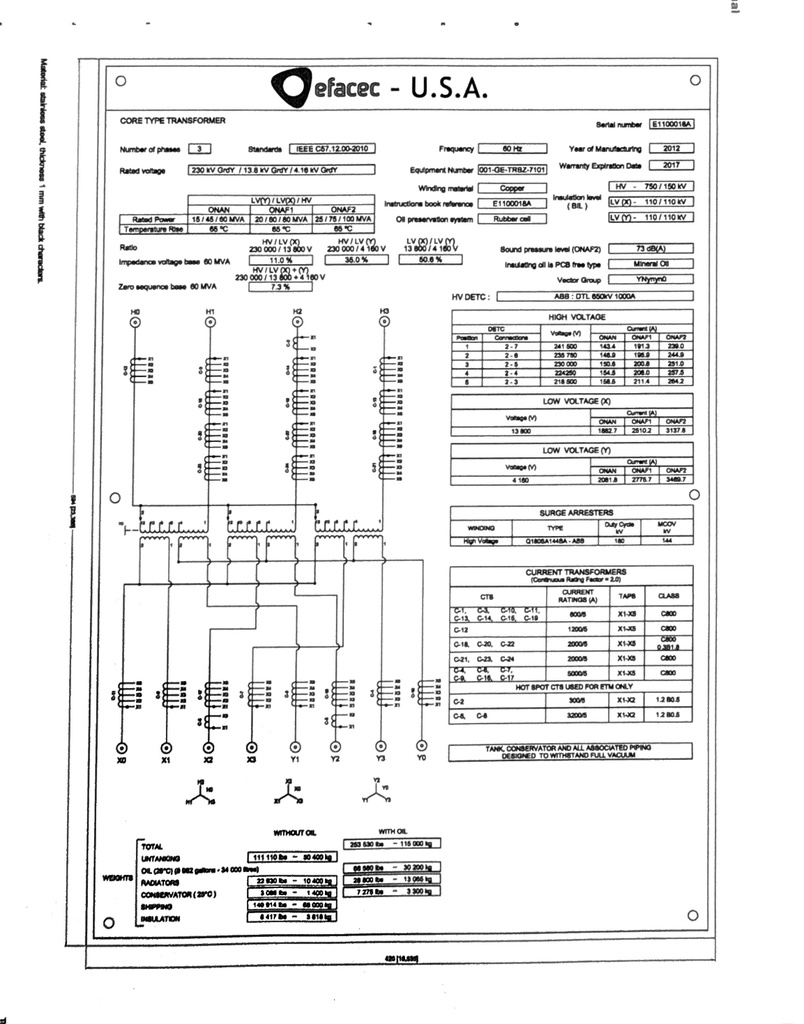

60 MVA 230000Y - 13800Y x 4160Y efacec Core Type Transformer

https://belyeapower.redstormlabs.com/web/image/product.template/36538/image_1920?unique=632d99c

0.00 0.0 USD 0.00

0.00

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 046933


    Full Product Description


    ONE (1) 60/80/100 MVA efacec Core Type Transformer, 3 PHASE,
    60 HZ, ONAN/ONAF1/ONAF2, 65 Degree C RISE, 11/35/50.6% Impedance,
    All CU Windings, Oil filled, Top-Top bushings, Oil Conservation System

    HIGH VOLTAGE: 230000 WYE BIL: 750 KV
    LOW VOLTAGE 1: 13800 WYE BIL: 110 KV
    LOW VOLTAGE 1: 4160 WYE BIL: 110 KV
    HV TAPS: 241500-235750-230000-224250-218500

    TOTAL WEIGHT: 253,530 LBS.
    CORE & COILS: LBS.
    TANK & FIT.: LBS.
    OIL: LBS. ( GAL)

    SHIPPING DIMS: TBD
