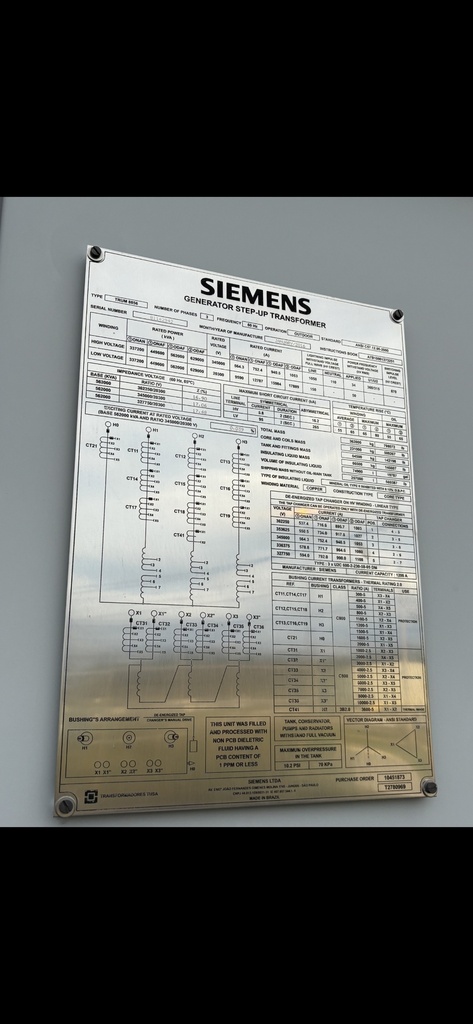

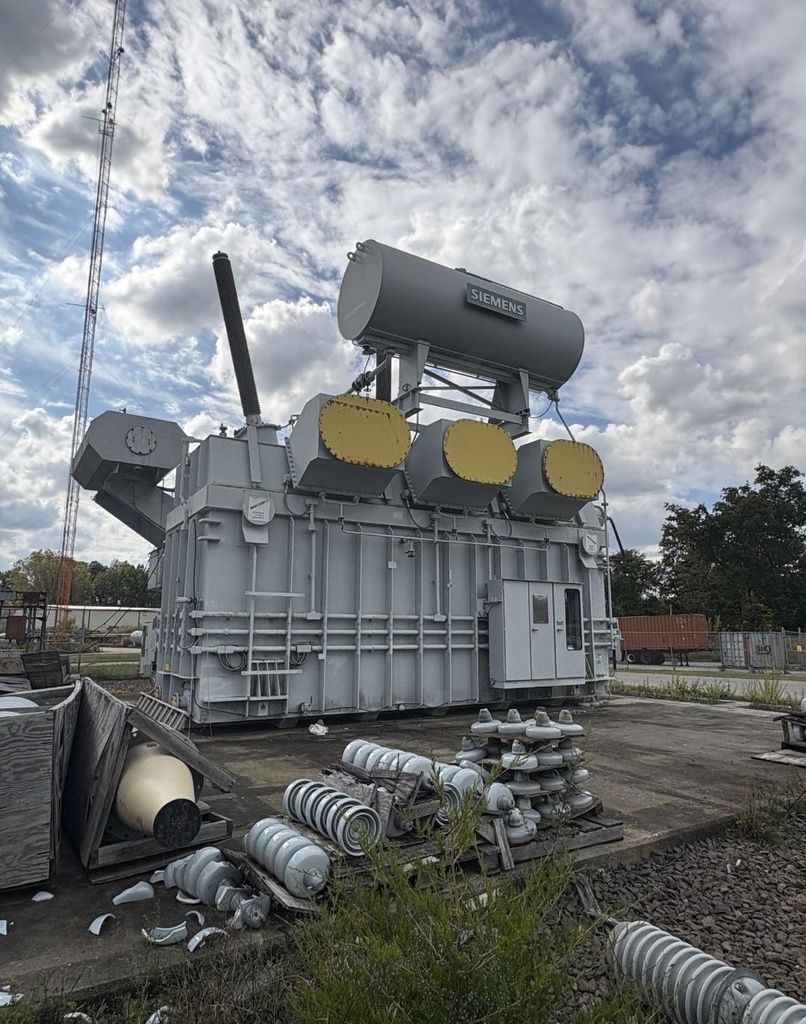

337/449/562/629 MVA Siemens GSU, 345000 Wye, 20300D

kVA: 337/449/562/629 MVA
Manufacturer: Siemens
Primary - First: 345000 V
Primary - First Vector: Wye
Secondary - First: 20300 V
Secondary - First Vector: Delta
Type: GSU
Phase: 3
HERTZ: 60
CLASS: ONAN/ONAF/ODAF/ODAF
TEMPERATURE RISE: 55/65 °C
IMPEDANCE: 16.9/17.06/17.48
Primary - First BIL: 1050 kV
Secondary - First BIL: 150 kV
STANDARD TAPS: 362250-353625-345000-336375-327750
GENERATOR STEP-UP: Yes
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Side
CORE & COIL WEIGHT: 509267 lb
TANK & FITTINGS WEIGHT: 142198 lb
FLUID WEIGHT: 146607 lb
FLUID GALLONS: 19787 gal (US)
TOTAL WEIGHT: 798072 lb
SHIPPING DIMENSIONS: 362"L x 152"W x 188"
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
Conservator: Yes
Manufacture Date: 2016
