15MVA 12470 D - 4160Y GE Prolec Substation Transformer
Product Number:
046858
Full Product Description

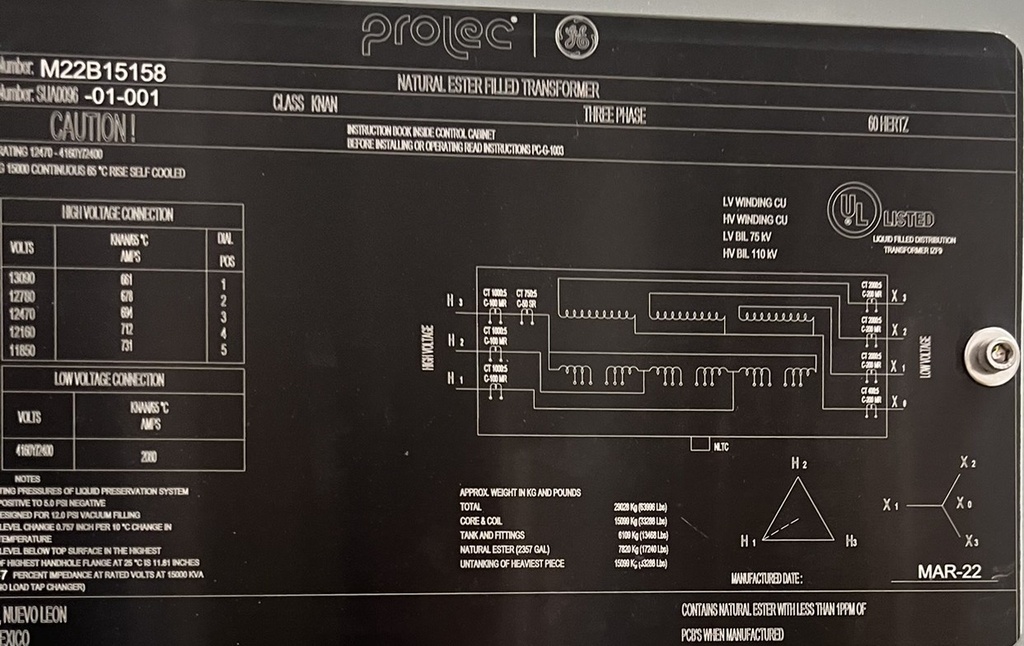

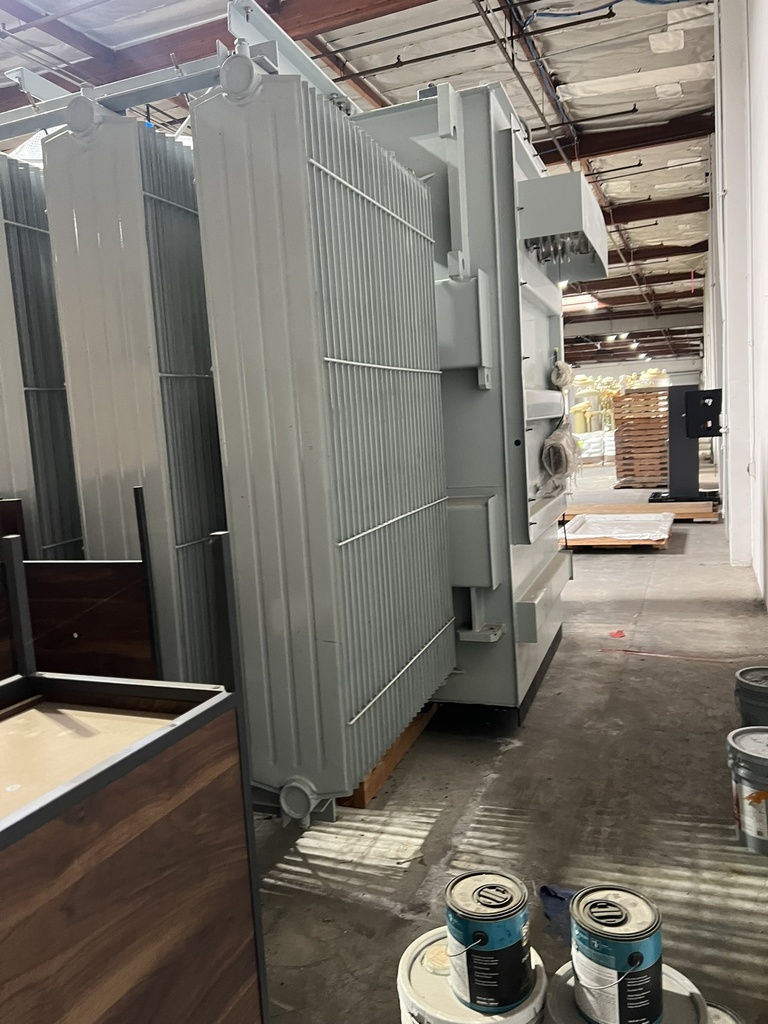

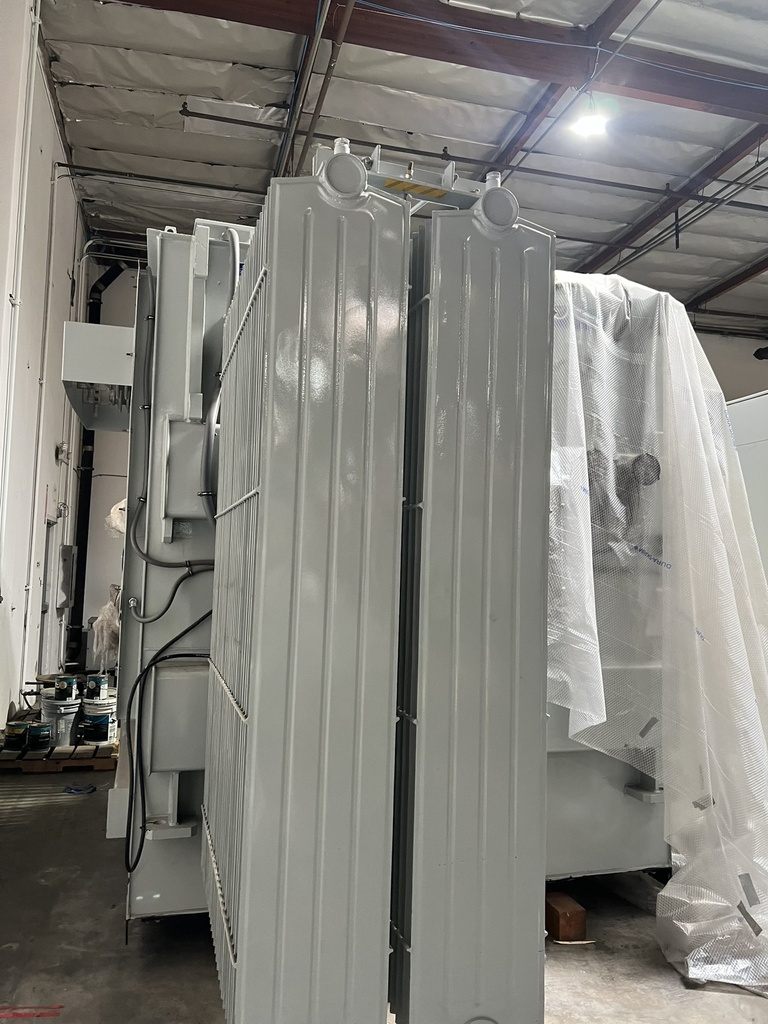

ONE (1) UNUSED 15 MVA GE PROLEC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS KNAN, 65 DEGREE C RISE, % IMPEDANCE, ALL COPPER
WINDINGS, NATURAL ESTER FILLED
HIGH VOLTAGE: 12470 DELTA BIL: 110 KV
LOW VOLTAGE: 4160 WYE BIL: 75 KV
TAPS: 13090-12780-12470-12160-11850
TOTAL WEIGHT: 63,996 LBS.
CORE & COILS: 33,288 LBS.
TANK & FIT.: 13,468 LBS.
OIL: 17,240 LBS. (2357 GAL)
SHIPPING DIMS: TBD
