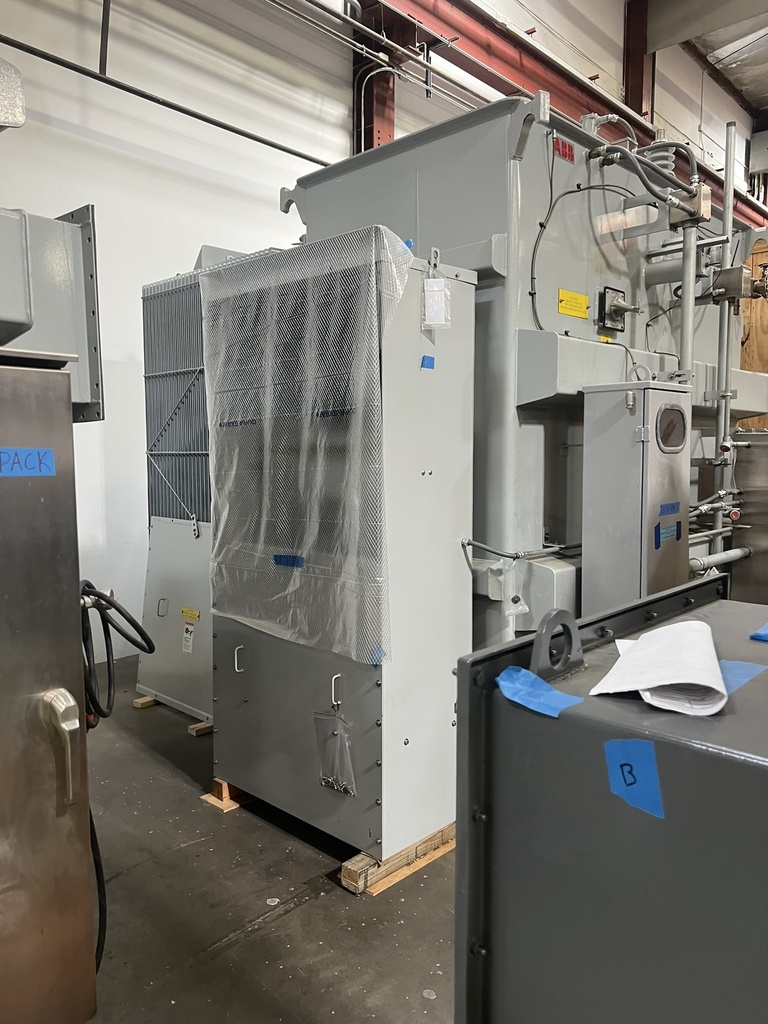

15MVA 12470 D - 4160Y ABB Substation Transformer

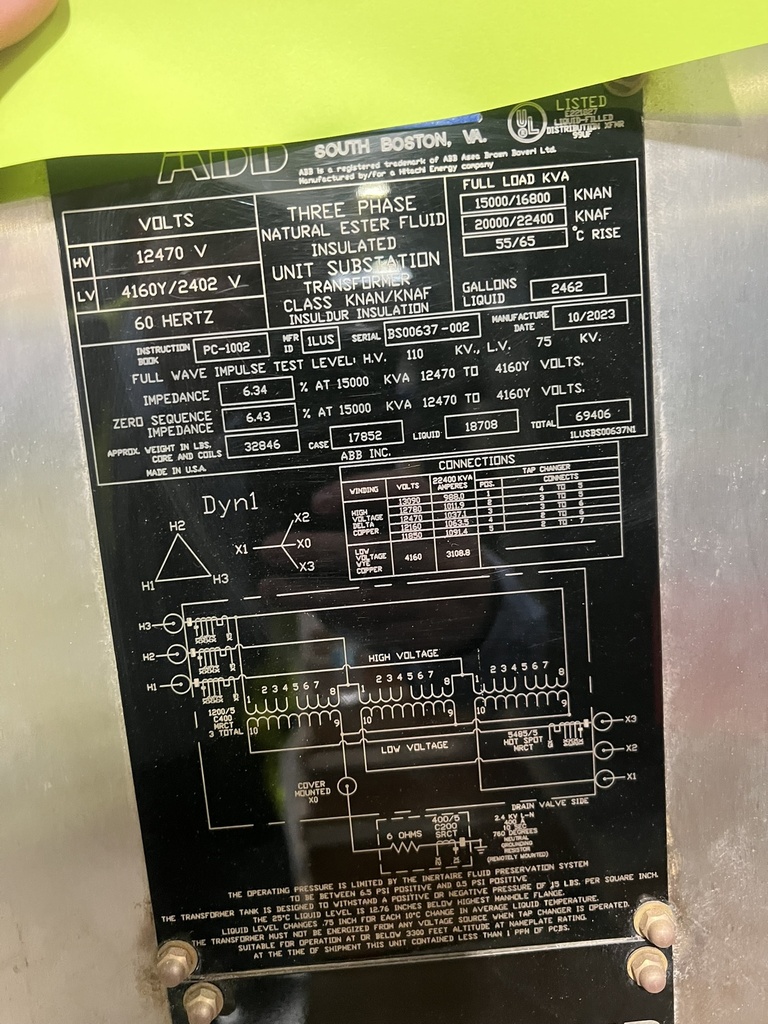

ONE (1) UNUSED 15/16.8/20/22.4 MVA ABB SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS KNAN/KNAF, 55/65 DEGREE C RISE, 6.34% IMPEDANCE, ALL COPPER
WINDINGS

HIGH VOLTAGE: 12470 DELTA BIL: 110 KV
LOW VOLTAGE: 4160 WYE BIL: 75 KV
TAPS: 13090-12780-12470-12160-11850

TOTAL WEIGHT: 69,406 LBS.
CORE & COILS: 32,846 LBS.
TANK & FIT.: 17,852 LBS.
OIL: 18,708 LBS. (2462 GAL)

SHIPPING DIMS: TBD
