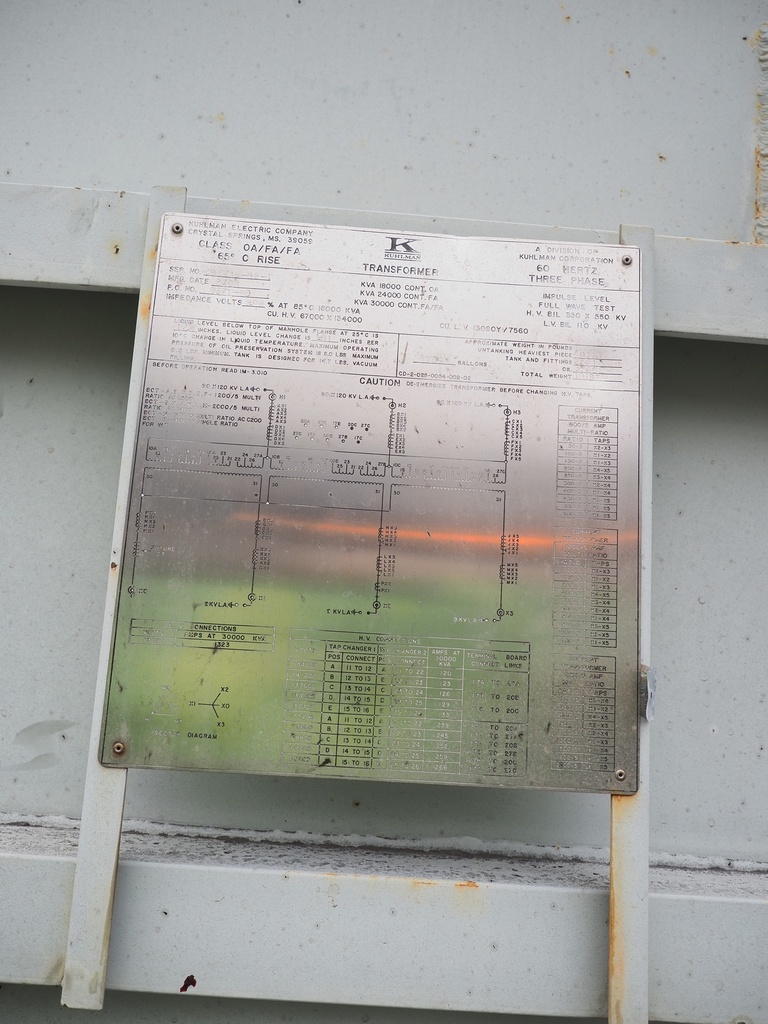

18/24/30 MVA 67000D x 134000D - 13090Y Kuhlman Substation Transformer

ONE (1) 18/24/30 MVA KUHLMAN SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA/FA, 65 DEGREE C RISE, 9.09% IMPEDANCE,
ALL COPPER WINDINGS, OIL FILLED, TOP-TOP BUSHINGS

HIGH VOLTAGE: 67000 DELTA BIL: 350 KV
HIGH VOLTAGE: 138000 DELTA BIL: 550 KV
LOW VOLTAGE: 13090 WYE BIL: 110 KV
TAPS: 72400-70600-68800-67000-65200
TAPS: 144800-141200-137600-134000-130400

TOTAL WEIGHT: 101,874 LBS.
CORE & COILS: 40,770 LBS.
TANK & FIT.: 25,412 LBS.
OIL: 35,692 LBS. (4759 GAL)

SHIPPING DIMS: 141" x 95" x 170"
