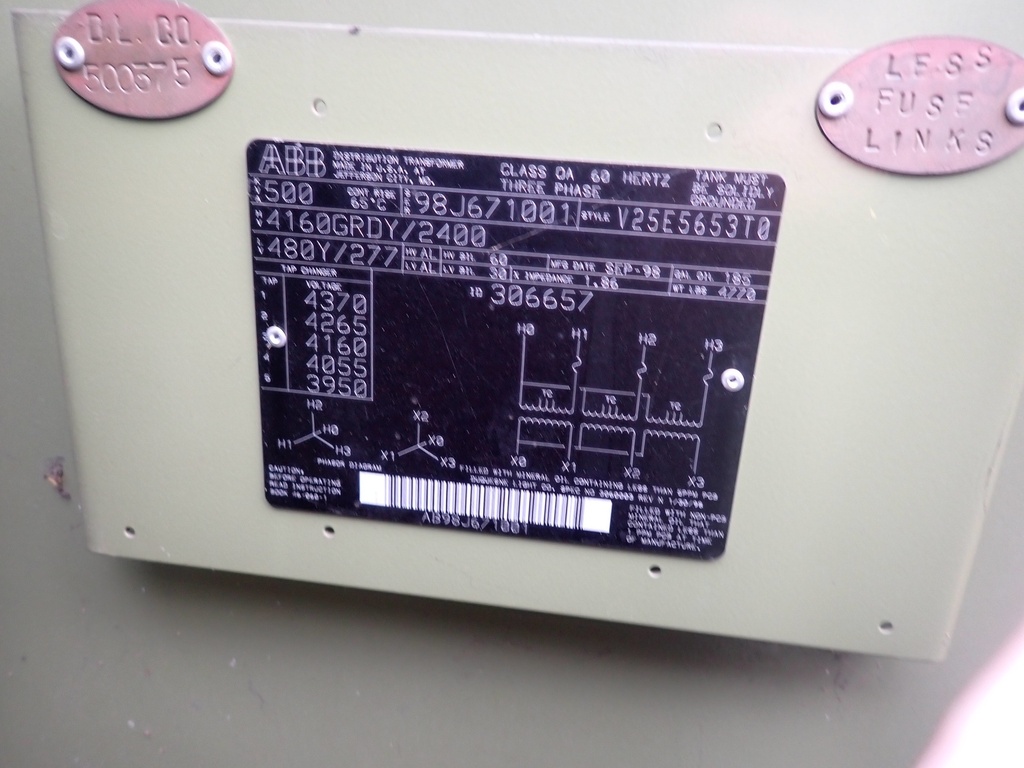

500, kVA, 4160/2400 V, Wye, 480/277, V, Wye
Pad-mount Transformer
Product Number:
046779
Full Product Description
500 KVA ABB Padmount Transformer, 3 Ph, 60 Hz, 65 Deg C Rise,
Dead Front, Radial Feed, Liquid Level Gauge, Drain and Sample Valve,
Tap Changer, Pressure Relief Valve, LV 600:5 CTs, 8.3 kV Load Break Fuses,
All AL windings, Class OA, 1.896% Imp
Taps: 4370-4265-4160-4055-3950
HV: 4160GRDY/2400 60 kV BIL
LV: 480WYE/277 30 kV BIL
Total Weight: 4470 LBS
Oil: 185 GAL
