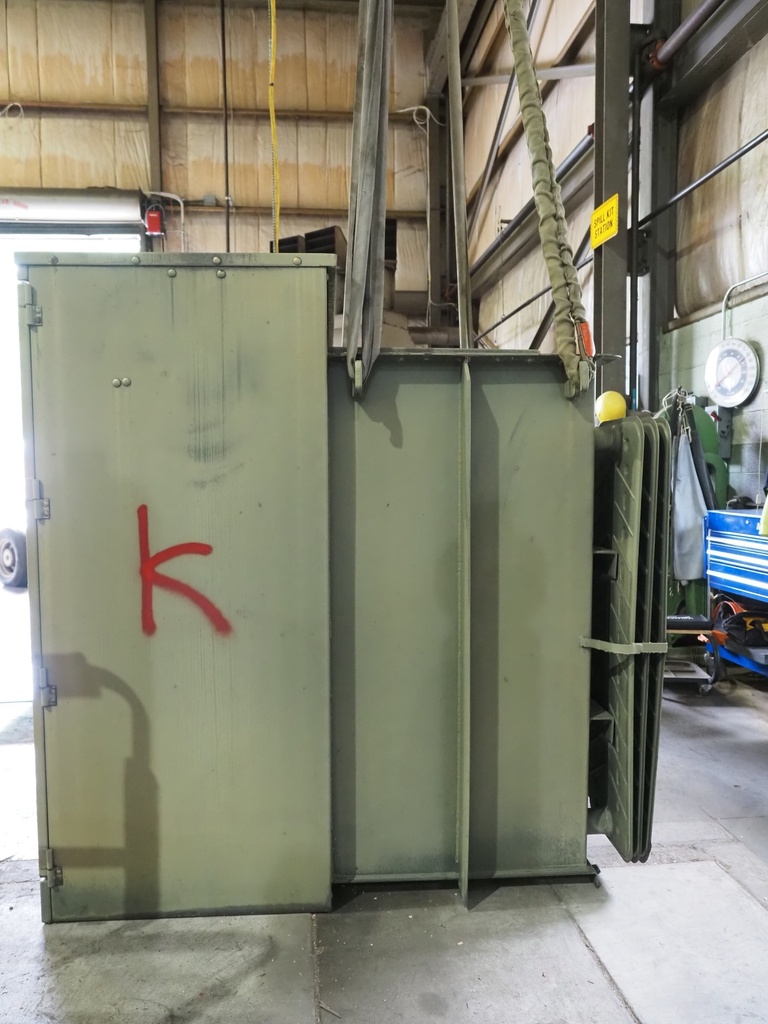

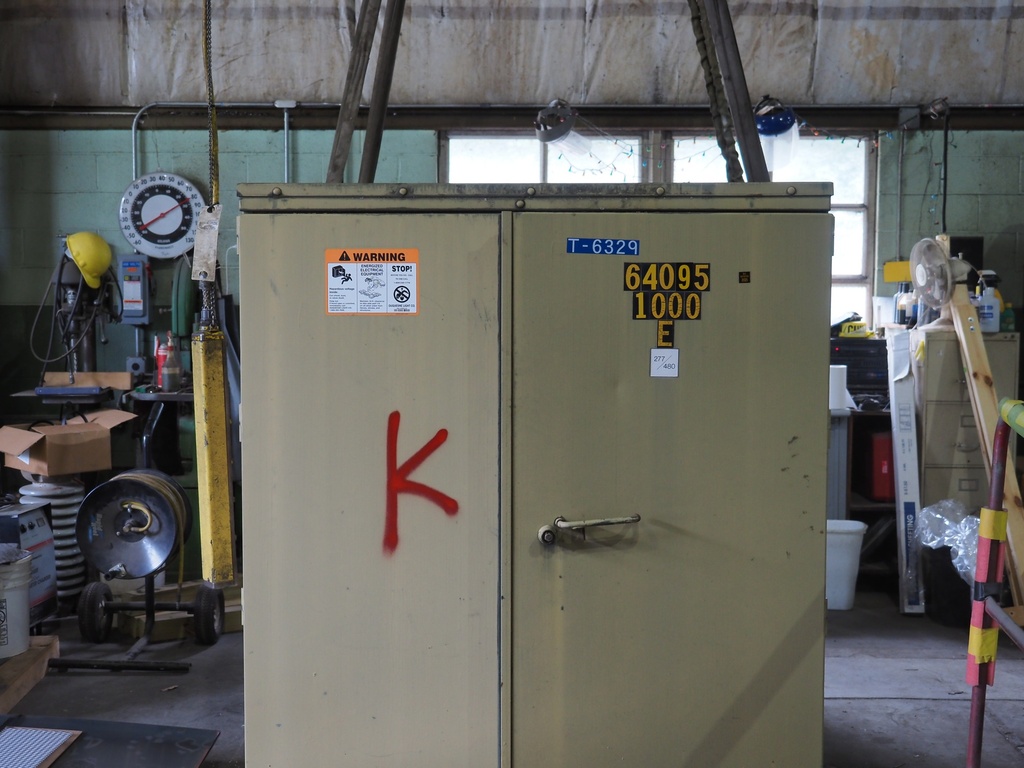

1000 KVA 24940GRDY/14400-480Y/277 GE Padmount Transformer
Pad-Mount Transformer
Product Number:
046778
Full Product Description

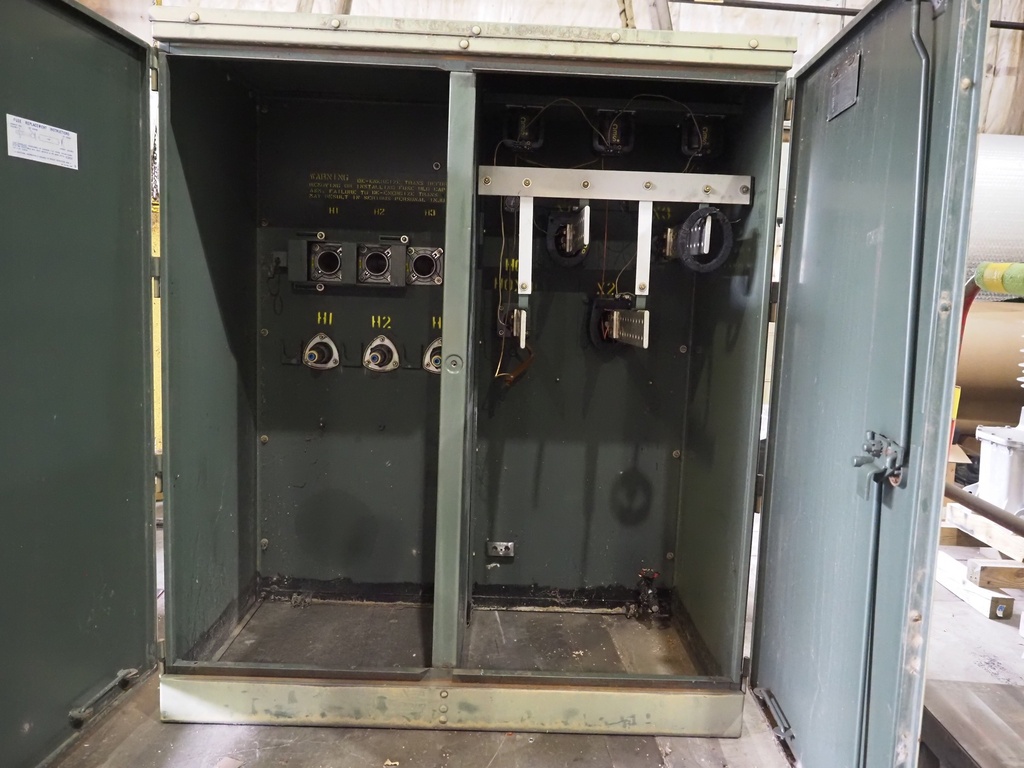

1000 KVA General Electric Pad Mount Transformer, 65 Deg C Rise, Class OA,

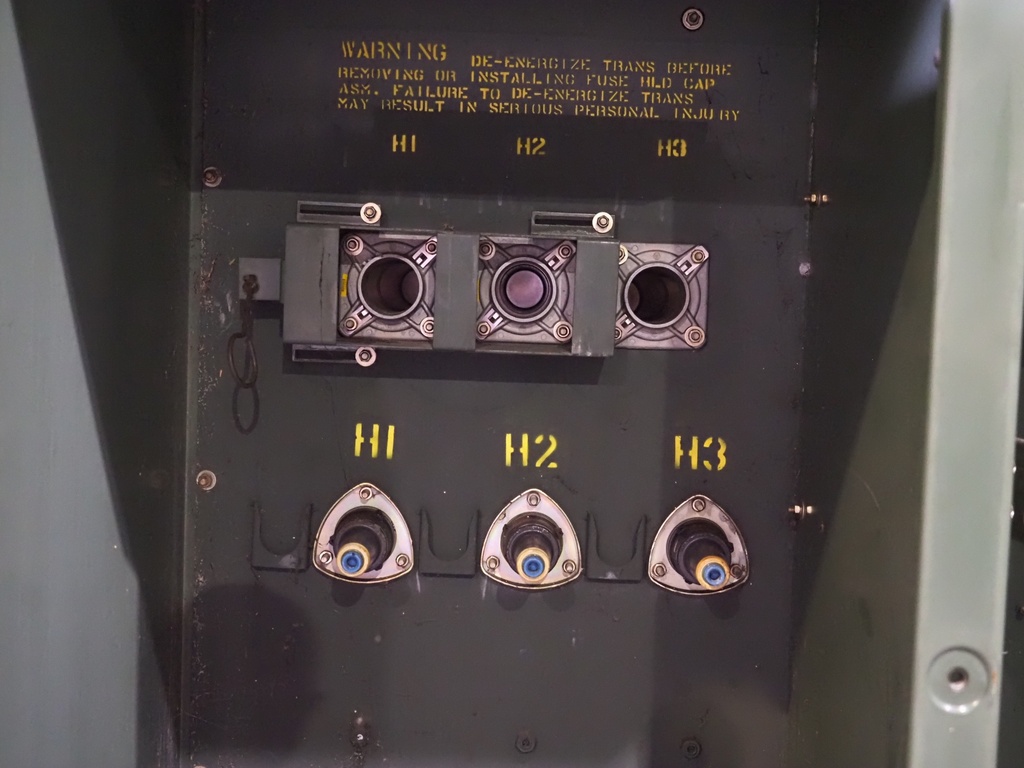

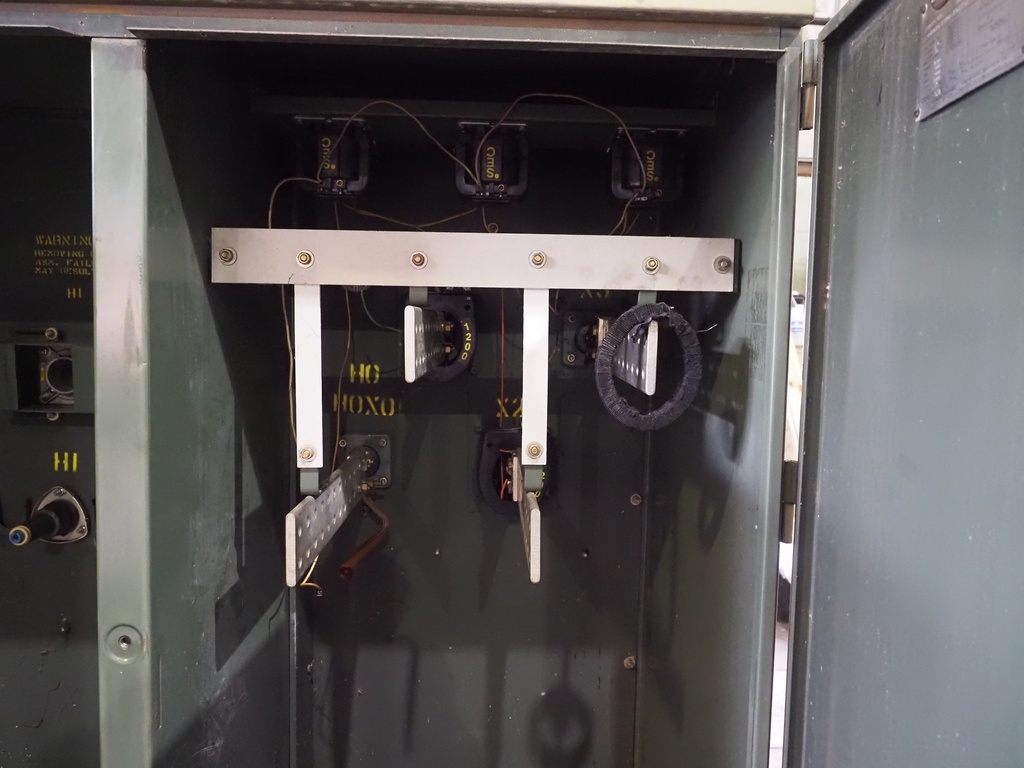

Dead Front, Radial Feed, Pressure Relief Valve, LV 1200:5 CTs, Fuse Holders,
Drain and Sample Valve, Tap Changer, Al HV Windings, CU LV Windings, 5.51% IMP

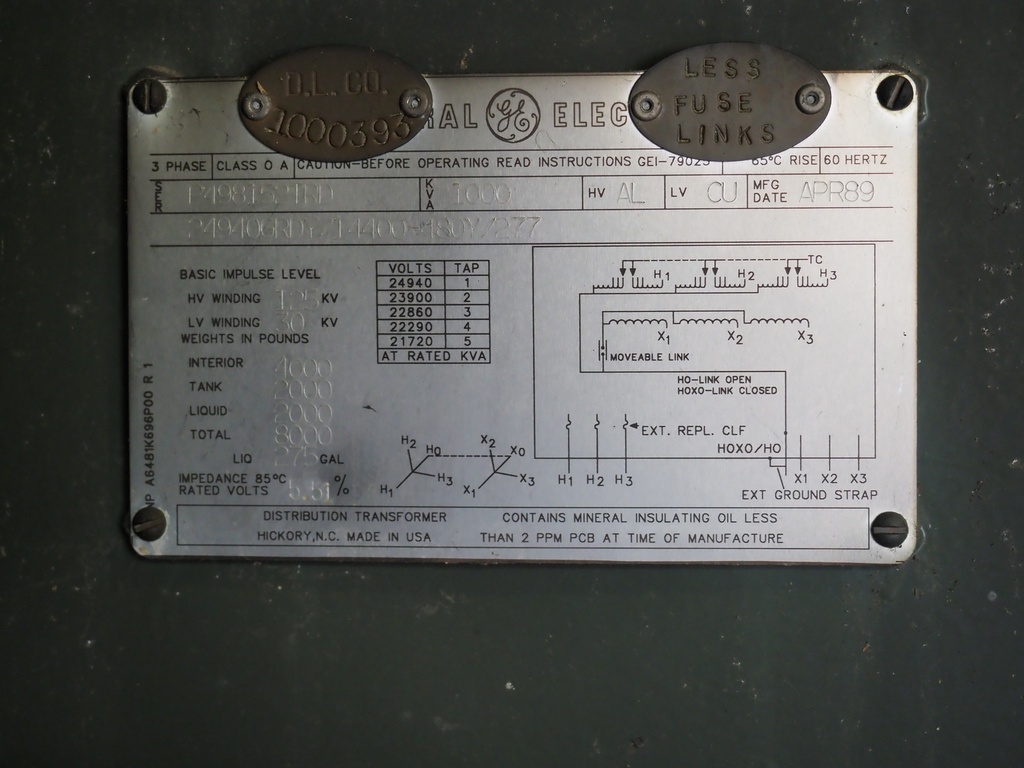

Taps: 24940-23900-22860-22290-21720
HV: 24940GRDY/14400 125 kV BIL
LV: 480Y/277 30 kV BIL
Total Weight: 8000 LBS
Core and Coils: 4000 LBS
Tank & Fittings: 2000 LBS
Liquid (Oil): 2000 LBS (275 GAL)
