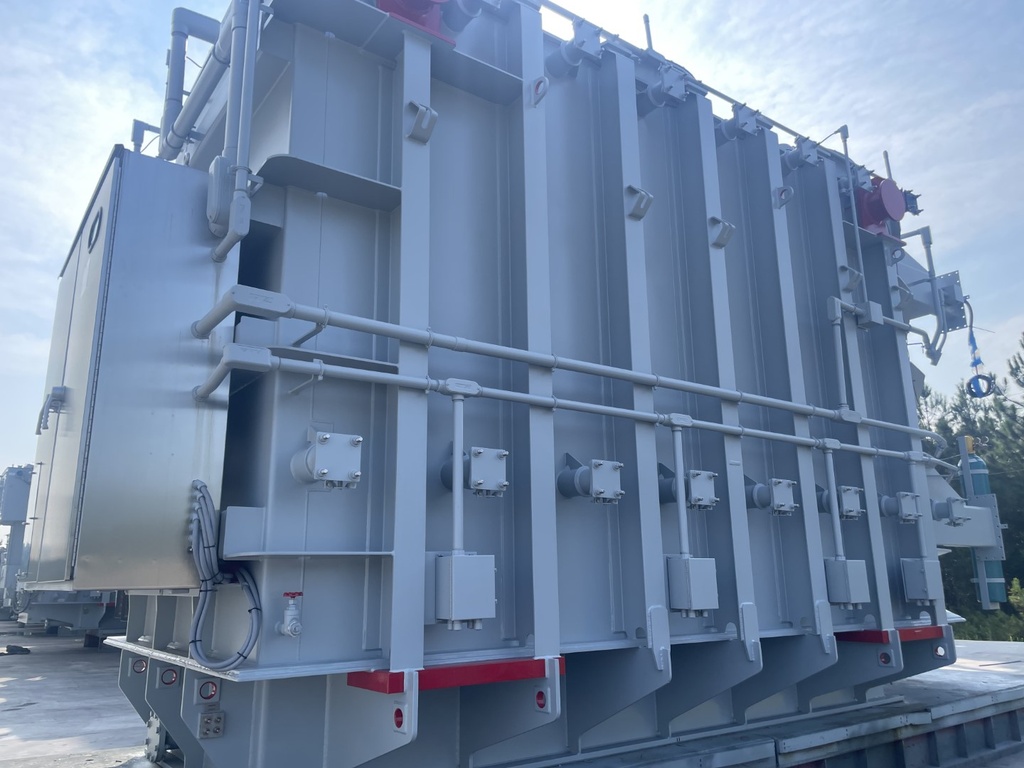

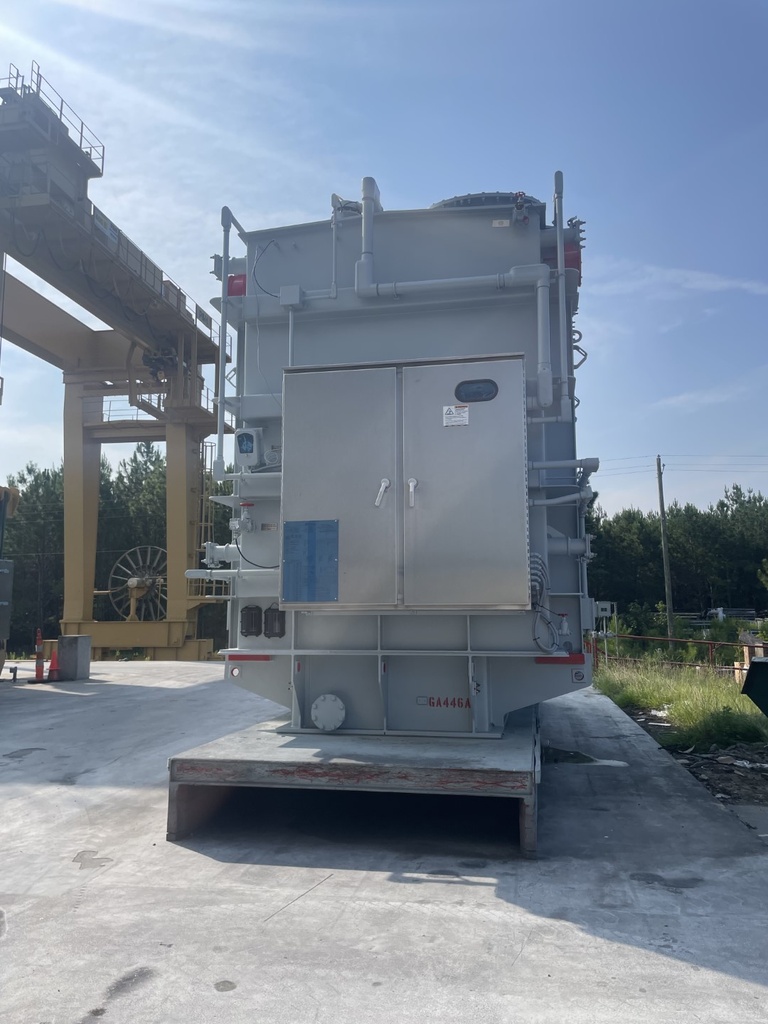

108 MVA 345000GrdY - 34500GrdY Georgia Transformer with LTC

One (1) 108/144/180 MVA Georgia Xfmr LTC Substation Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Mineral Oil Filled,
55/65 Deg C Rise, 7.6% Impedance, All CU Windings,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves, Oil Conservation System

HV: 345000 GrdY BIL: 1050 kV
LV: 34500 GrdY BIL: 200 kV

HV Taps: +/- 0.625% in 16 steps up and down

CORE & COIL WEIGHT 225041 lb
TANK & FITTINGS WEIGHT 144007 lb
FLUID WEIGHT 117826 lb
FLUID GALLONS 15775 gal (US)
TOTAL WEIGHT 488874 lb

Dimensions: TBD
