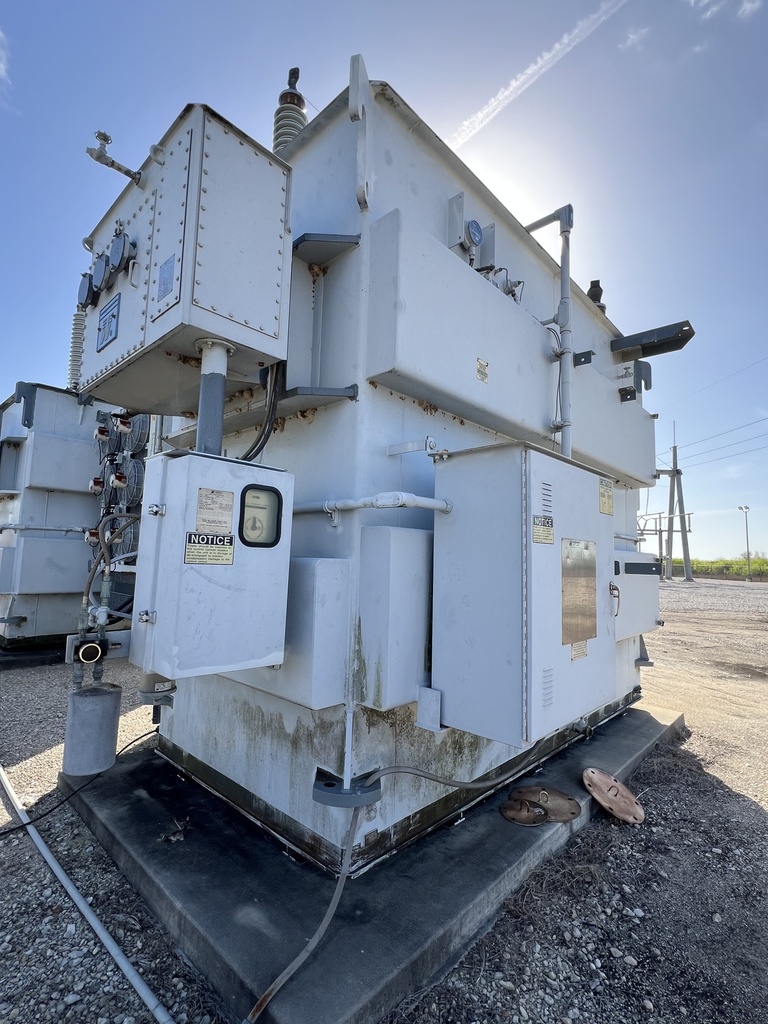

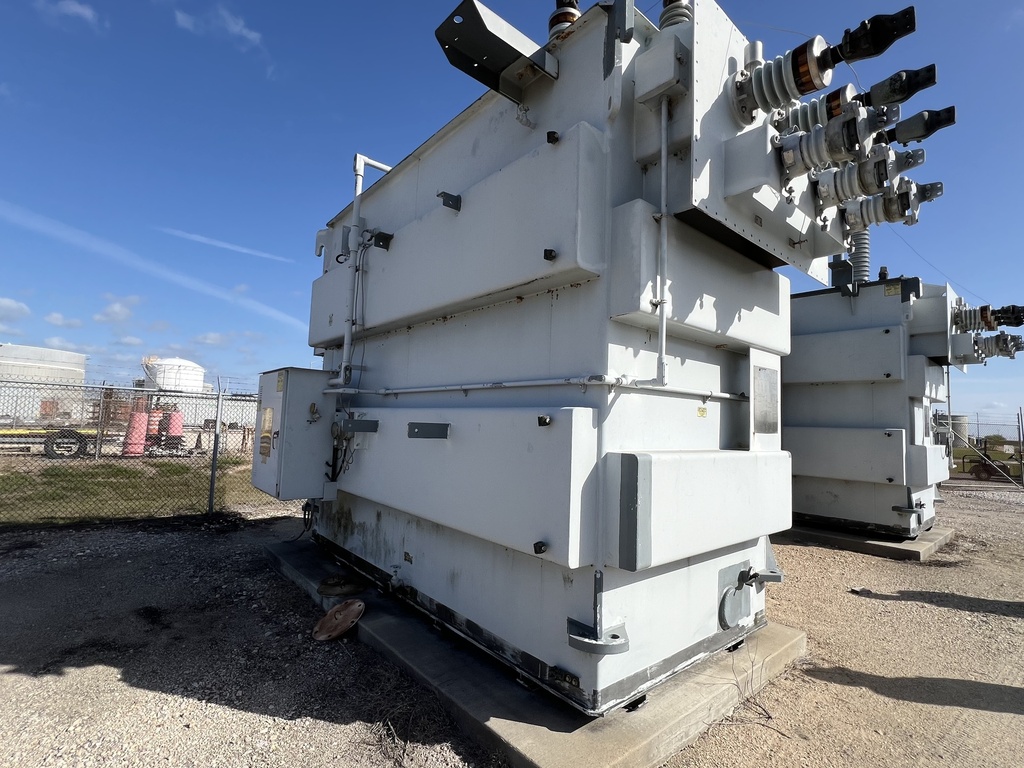

15MVA 138000D - 4160Y Waukesha LTC Substation Transformer

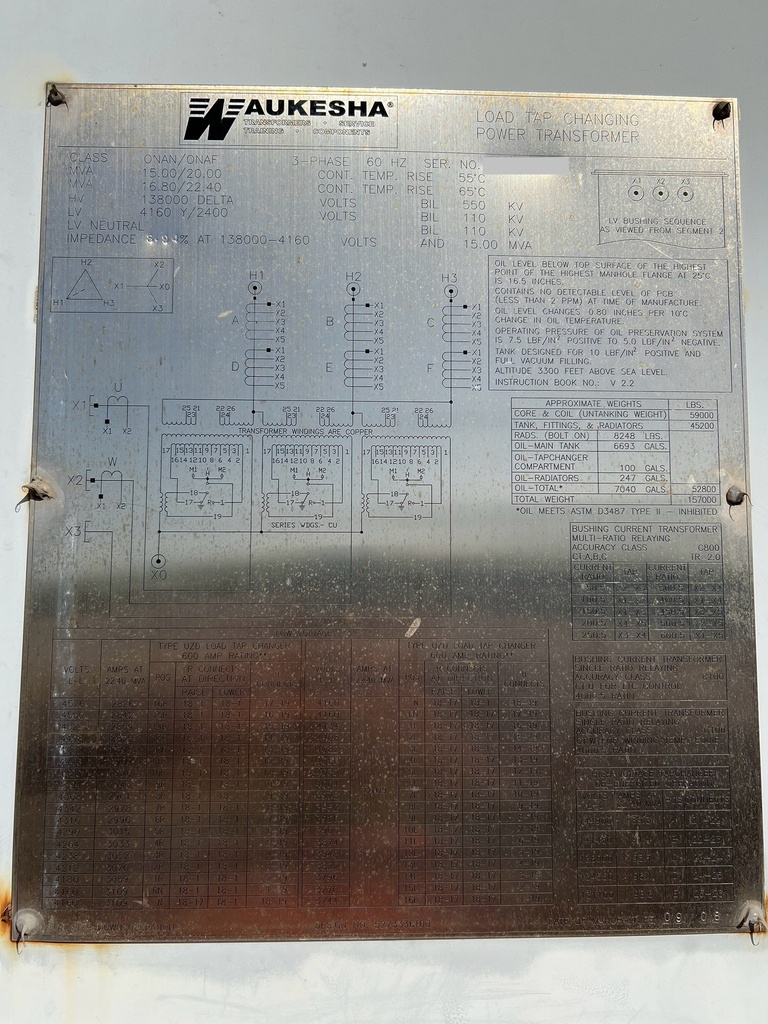

One (1) 15/16.8/20/22.4 MVA Waukesha LTC Substation Transformer
3 Ph, 60 Hz, ONAN/ONAF, Mineral Oil Filled,
55/65 Deg C Rise, 8.94% Impedance, All CU Windings,
Top-Side Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 550 kV
LV: 4160 Wye BIL: 110 kV

Taps: 144900-141450-138000-134550-131100

LV Taps: +/- 0.625% in 16 steps up and down

CORE & COIL WEIGHT 59000 lb
TANK & FITTINGS WEIGHT 45200 lb
FLUID WEIGHT 52800 lb
FLUID GALLONS 7040 gal (US)
TOTAL WEIGHT 157000 lb

Overall Dimensions: 260.1"L x 220.5"W x 228.8"H
Shipping Dimensions: 260.1"L x 121.7"W x 165.2"H
