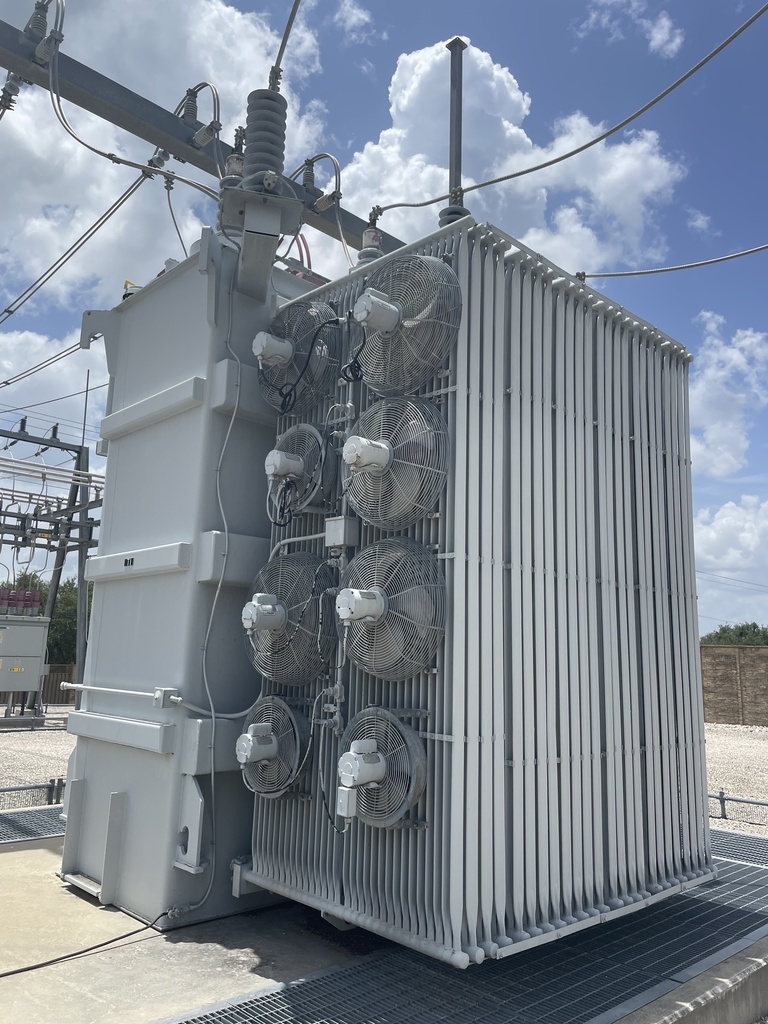

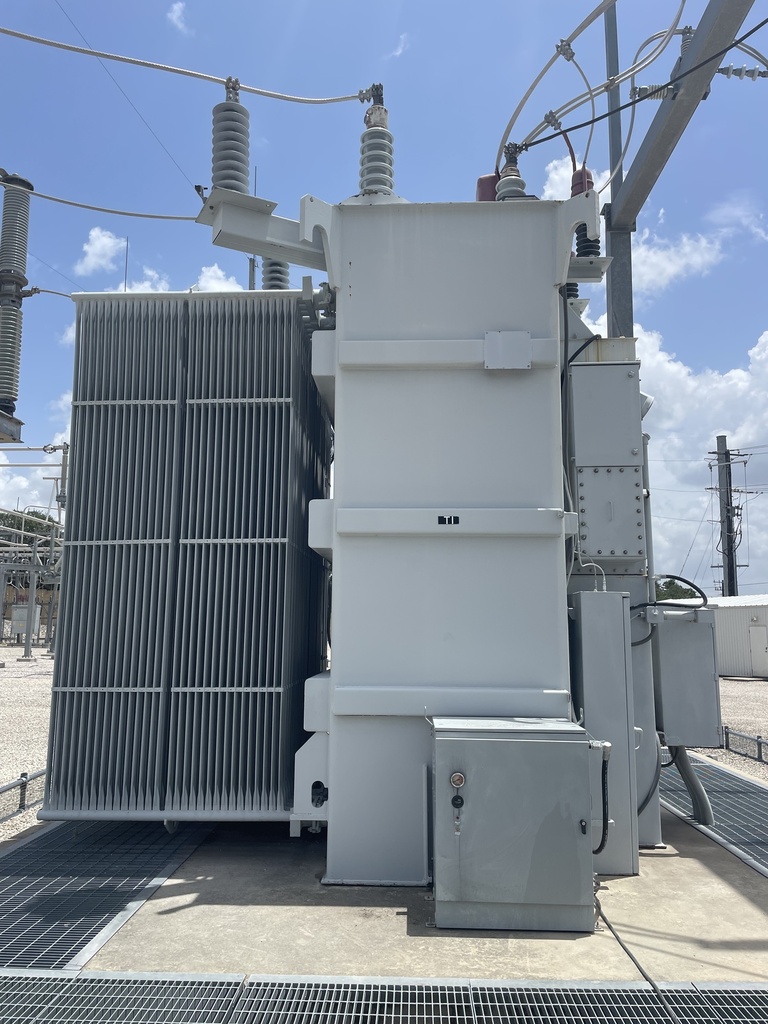

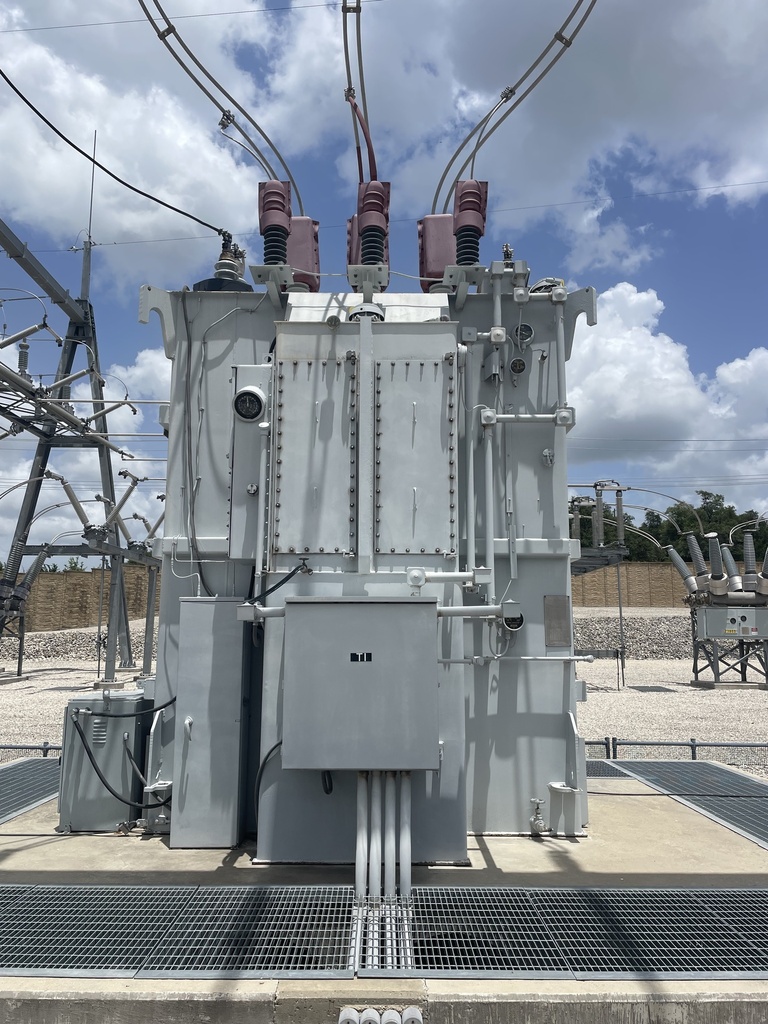

12 MVA 69000 D - 13090 Y x 26180 Y Westinghouse LTC Substation Transformer

One (1) 12/13.4/16/17.9/20/22.4 MVA Westinghouse LTC Substation Transformer
3 Ph, 60 Hz, OA/FA/FA, Mineral Oil Filled,
55/65 Deg C Rise, 7.6% Impedance, CU/AL Windings,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 69000 Delta BIL: 350 kV
LV: 13090 Wye BIL: 110 kV
LV2: 26180 Wye BIL: 150 KV

Taps: 72450-70725-69000-67275-65550

LV Taps: +/- 0.625% in 16 steps up and down

CORE & COIL WEIGHT 36700 lb
TANK & FITTINGS WEIGHT 27350 lb
FLUID WEIGHT 37800 lb
FLUID GALLONS 5035 gal (US)
TOTAL WEIGHT 101850 lb

Dimensions: TBD
