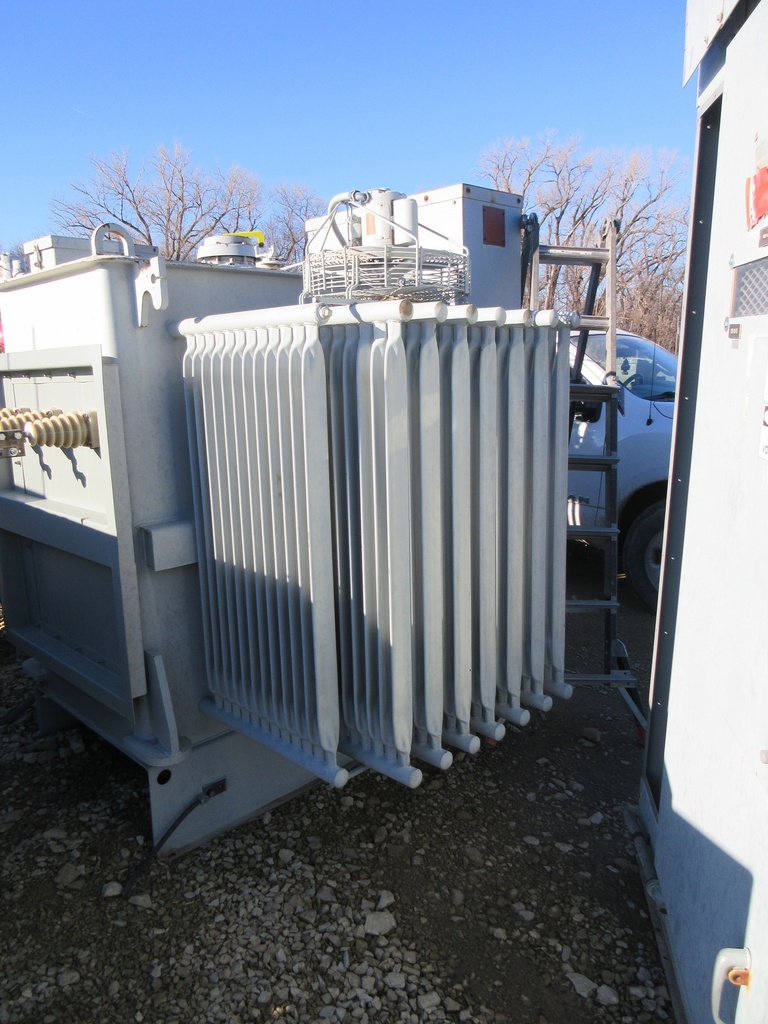

2000kVA 13200 D - 4160Y Westinghouse Substation Transformer

One (1) 2000/2300 kVA Westinghouse Substation Transformer,
3 Ph, 60 Hz, Pressure Relief Device, All AL Windings, 6.58% Impedance,
65 Deg C Rise, Class OA/FA, Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,

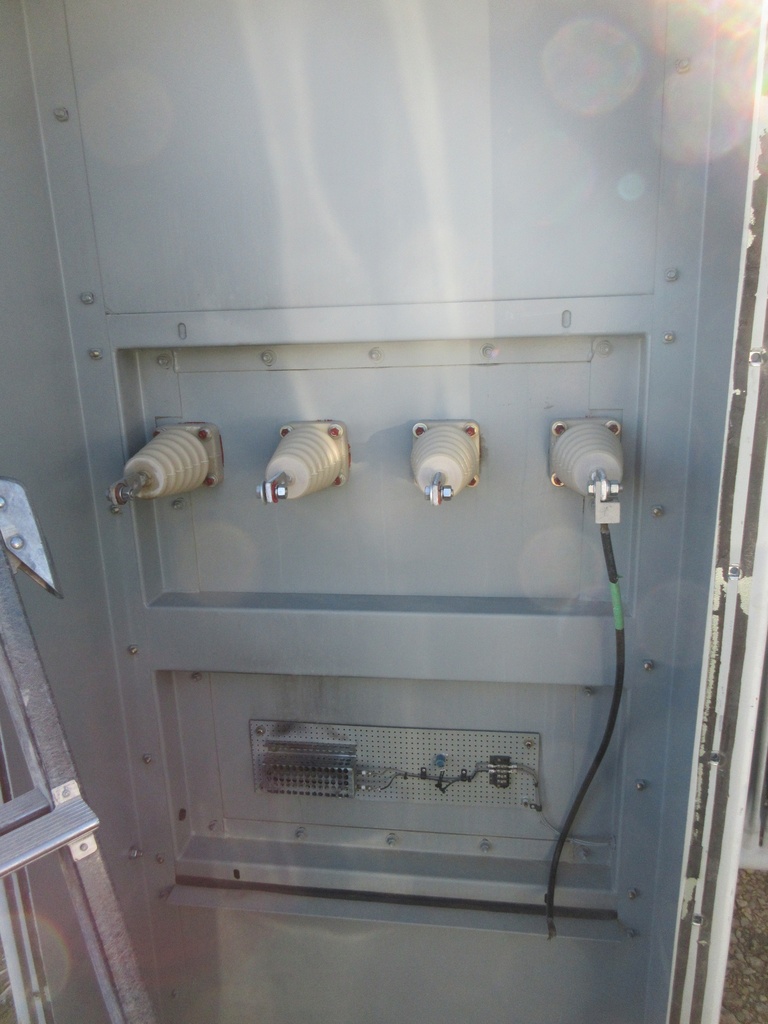

Drain and Sample Valve, Full Length ATCs-LV, Side-Side Bushings

HV: 13200 Delta BIL: 95 kV
LV: 4160 Wye BIL: 60 kV
Taps: 13860-13530-13200-12870-12540

Total Weight: 10301 LBS
Core & Coils: 4590 LBS
Tank & Fittings: 1996 LBS
Liquid (RSL): 2715 LBS 362 Gal

Dimensions: TBD
