10 MVA 34500 D - 4160Y/2402 Virginia Transformer Substation Transformer

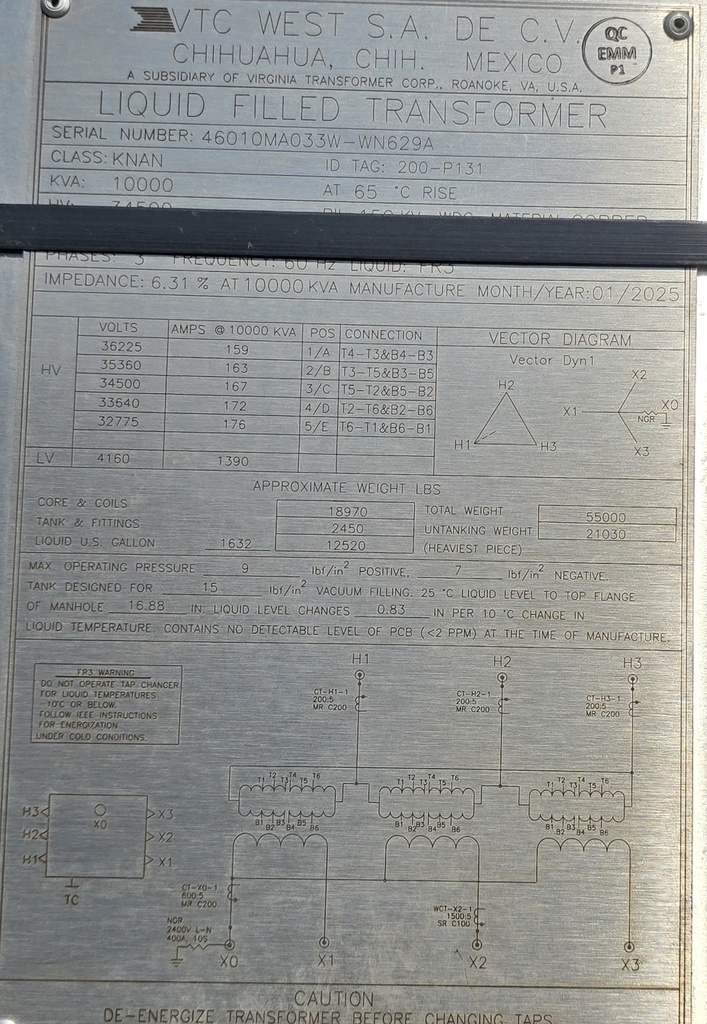

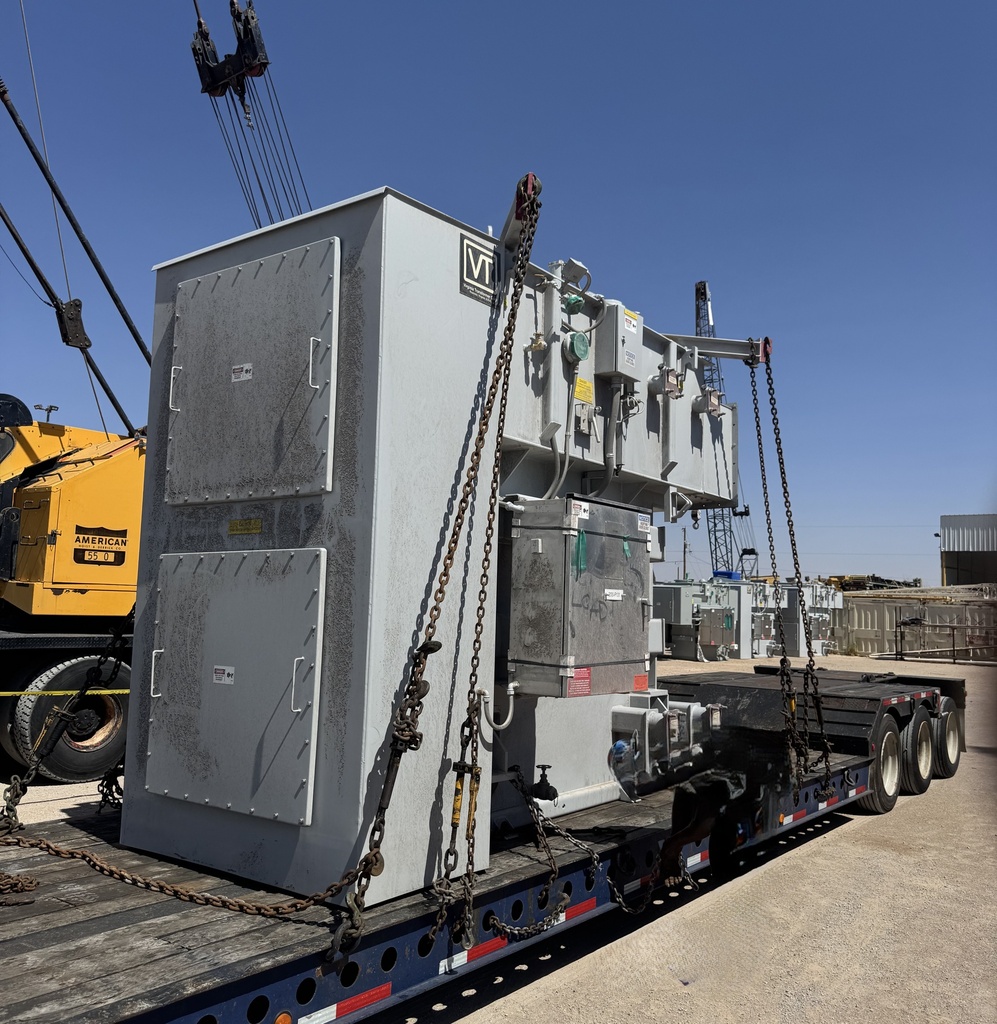

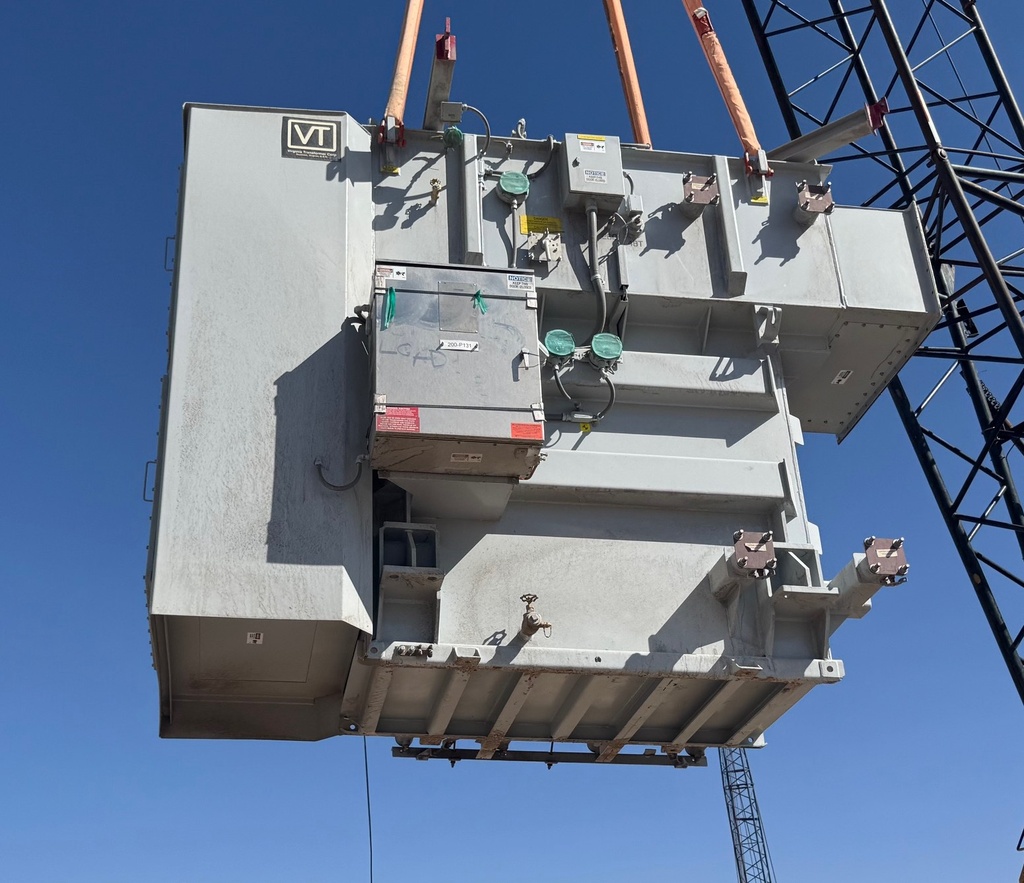

One (1) 10 MVA Virginia Transformer Substation Transformer
3 Ph, 60 Hz, KNAN, FR3 Filled,
65 Deg C Rise, 6.31% Impedance, All CU Windings,
Side-Side Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves, Full Length ATC HV / Partial ATC LV

HV: 34500 Delta BIL: 150 kV
LV: 4160/2420 Wye BIL: 60 kV

Taps: 36225-35360-34500-33640-32775

CORE & COIL WEIGHT 18970 lbs
TANK & FITTINGS WEIGHT 2450 lbs
FLUID WEIGHT 12520 lbs
FLUID GALLONS 1632 gal (US)
TOTAL WEIGHT 55000 lbs
SHIPPING WEIGHT 42480 lbs

Overall Dimensions: 156.50" H x 163.10" W x 168.83" D
Shipping Dimensions: 137.19" H x 163.10" W x 132.59" D
