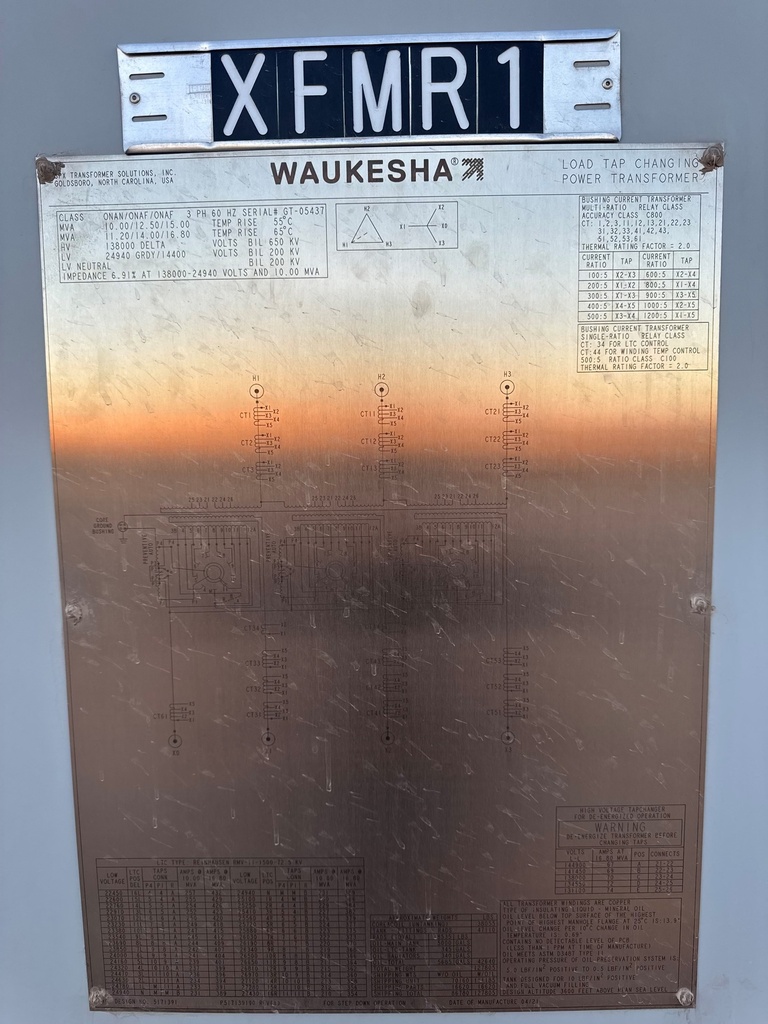

10 MVA 138000 D - 29490 GRDY Waukesha LTC Transformer

One (1) 10/11.2/12.5/14/15/16.8 MVA Waukesha LTC Substation Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Mineral Oil Filled,
55/65 Deg C Rise, 6.91% Impedance, All CU Windings,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 650 kV
LV: 24940 Wye BIL: 200 kV

Taps: 144900-141450-138000-134550-131100
LV Taps: +/- 0.625% in 16 steps up and down

CORE & COIL WEIGHT 38055 lb
TANK & FITTINGS WEIGHT 47110 lb
FLUID WEIGHT 42640 lb
FLUID GALLONS 5685 gal (US)
TOTAL WEIGHT 127805 lb
SHIPPING WEIGHT 70160 lb

Overall Dimensions: TBD
Shipping Dimensions: TBD
