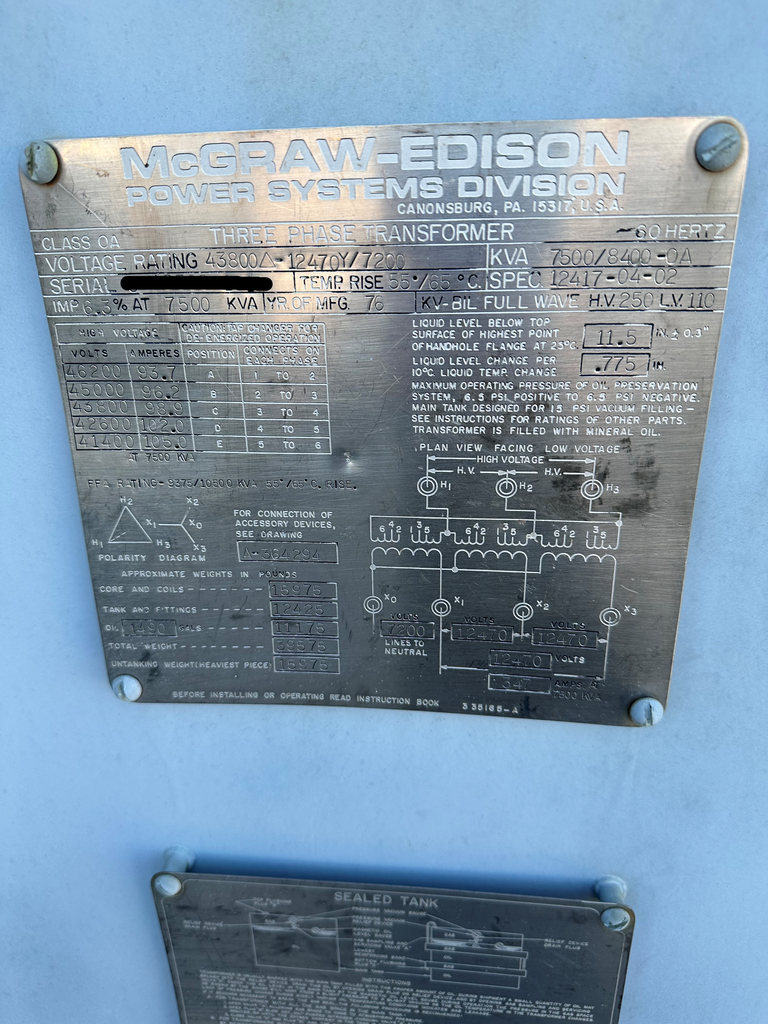

7500kVA 43800D - 12470Y McGraw Edison Substation Transformer

One (1) 7500/8400 kVA McGraw Edison Substation Transformer
3 Ph, 60 Hz, OA, Mineral Oil Filled,
55/65 Deg C Rise, 6.3% Impedance,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves **FFA Rating - 9375/10500 kVA

HV: 43800 Delta BIL: 250 kV
LV: 12470 Wye BIL: 110 kV

Taps: 46200-45000-43800-42600-41400

CORE & COIL WEIGHT 15975 lb
TANK & FITTINGS WEIGHT 12425 lb
FLUID WEIGHT 11175 lb
FLUID GALLONS 1490 gal (US)
TOTAL WEIGHT 39575 lb

Overall Dimensions: TBD
Shipping Dimensions: TBD
