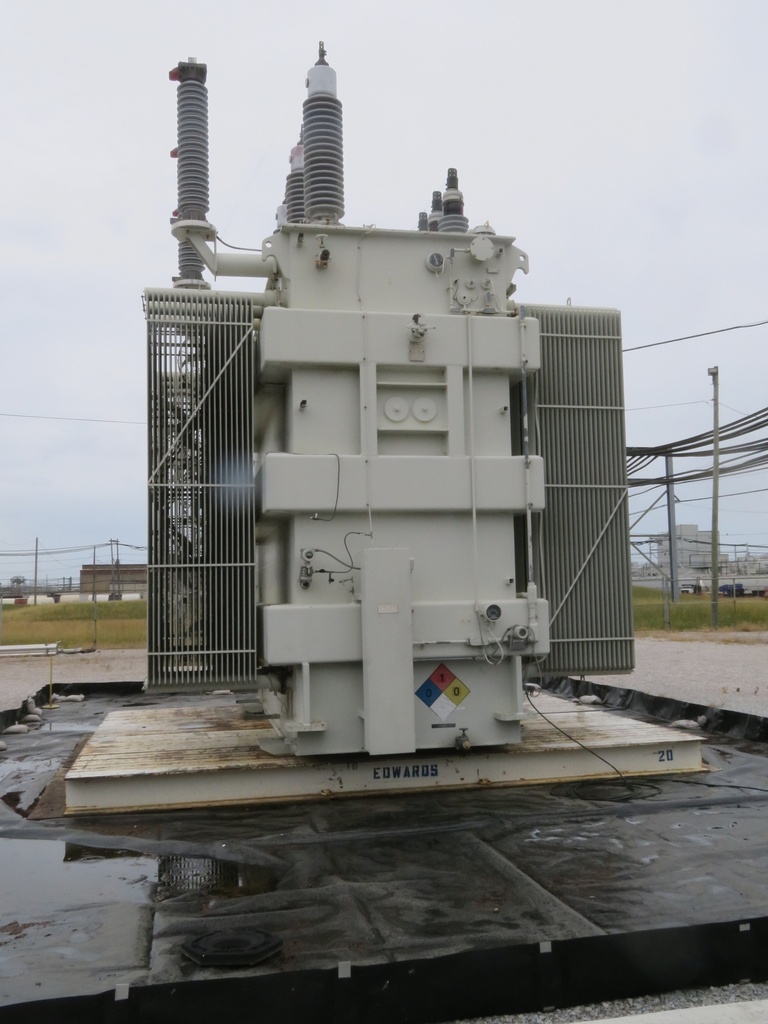

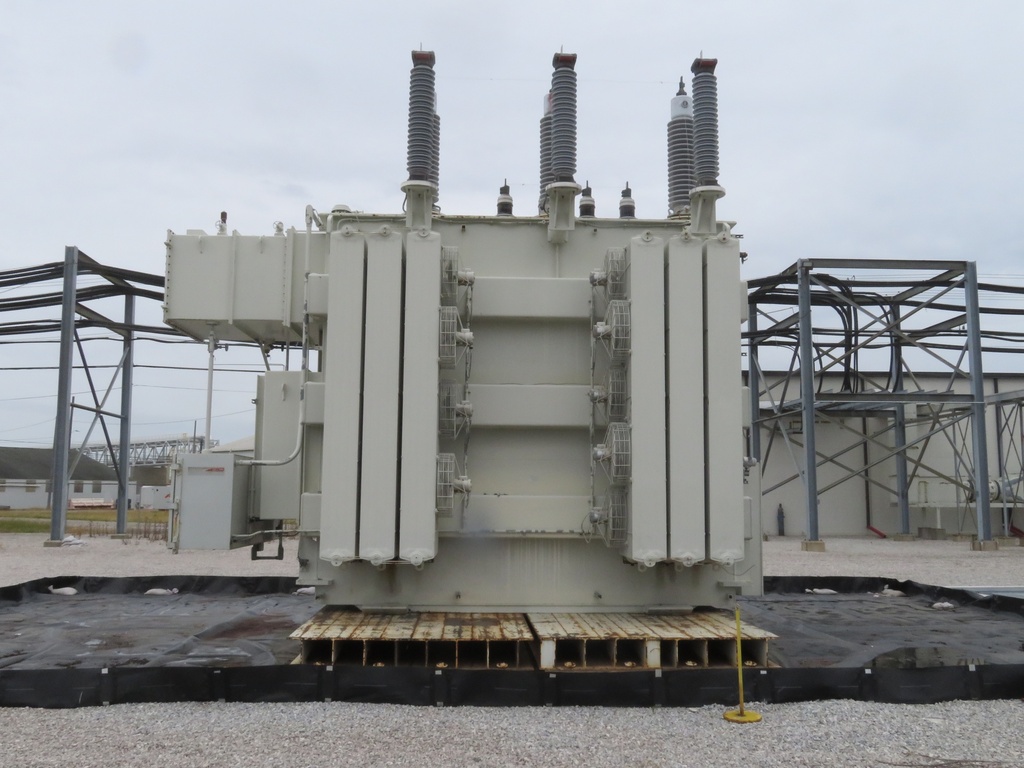

45 MVA 140000 D - 14000 Y McGraw Edison LTC Substation Transformer

One (1) 45/60/75 MVA McGraw Edison LTC Substation Transformer
3 Ph, 60 Hz, OA/FA/FA, Mineral Oil Filled,
65 Deg C Rise, 13.9% Impedance, All CU Windings,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 140000 Delta BIL: 650 kV
LV: 14000 Wye BIL: 110 kV

Taps: 147000-143500-140000-136500-133000
LV Taps: +/- 0.625% in 16 steps up and down

CORE & COIL WEIGHT lb
TANK & FITTINGS WEIGHT lb
FLUID WEIGHT lb
FLUID GALLONS gal (US)
TOTAL WEIGHT TBD lb

Overall Dimensions: TBD
Shipping Dimensions: TBD
