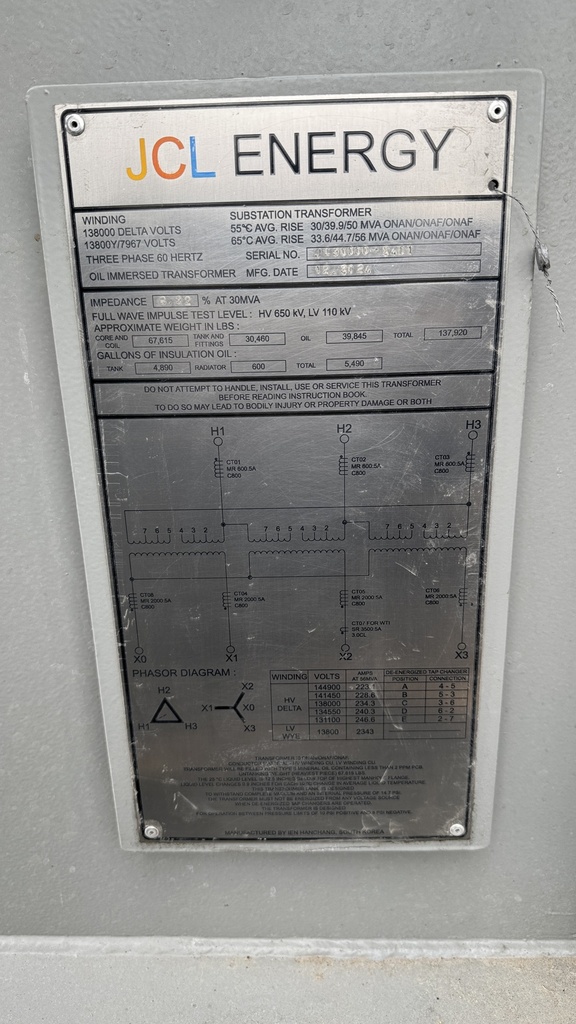

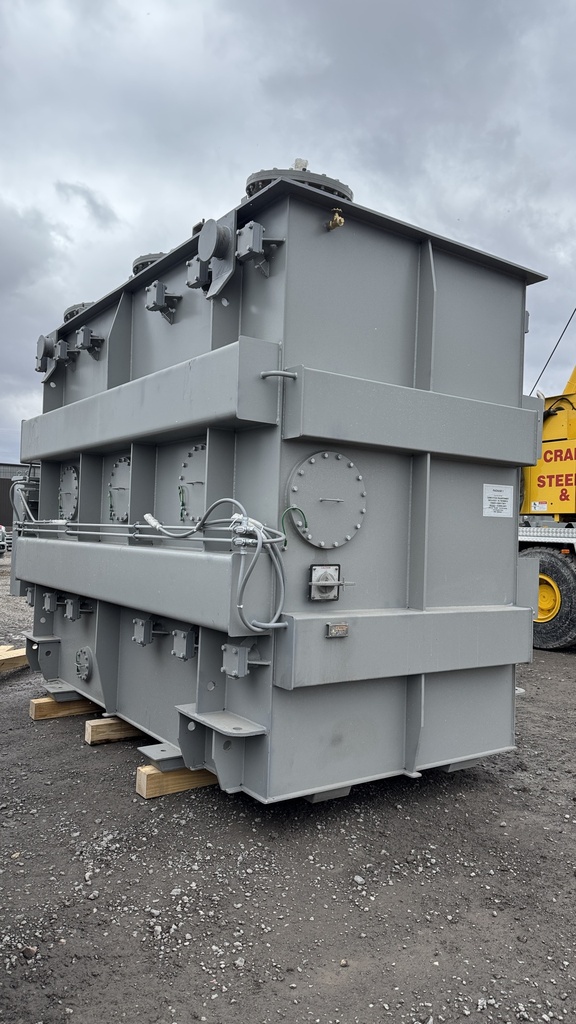

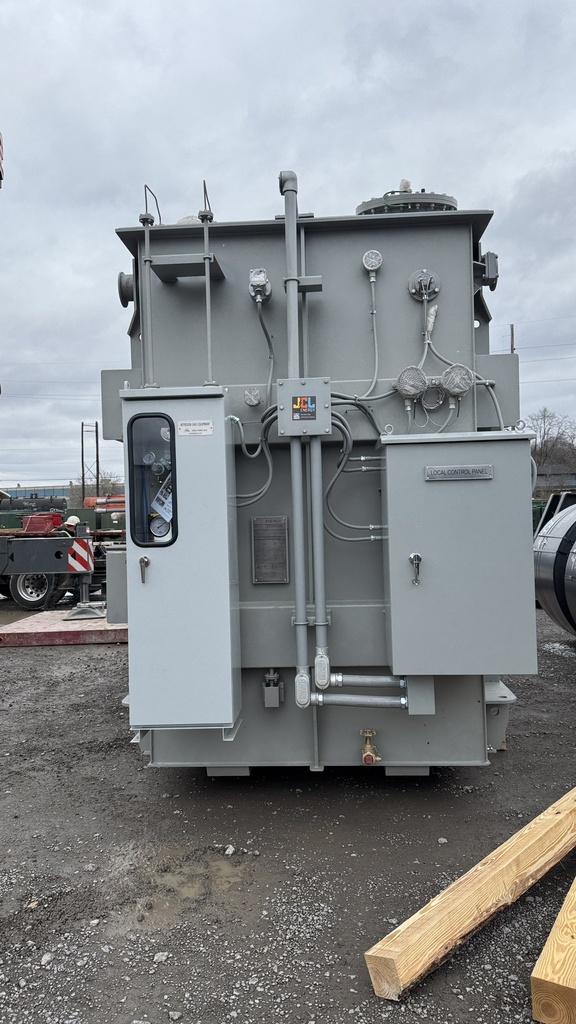

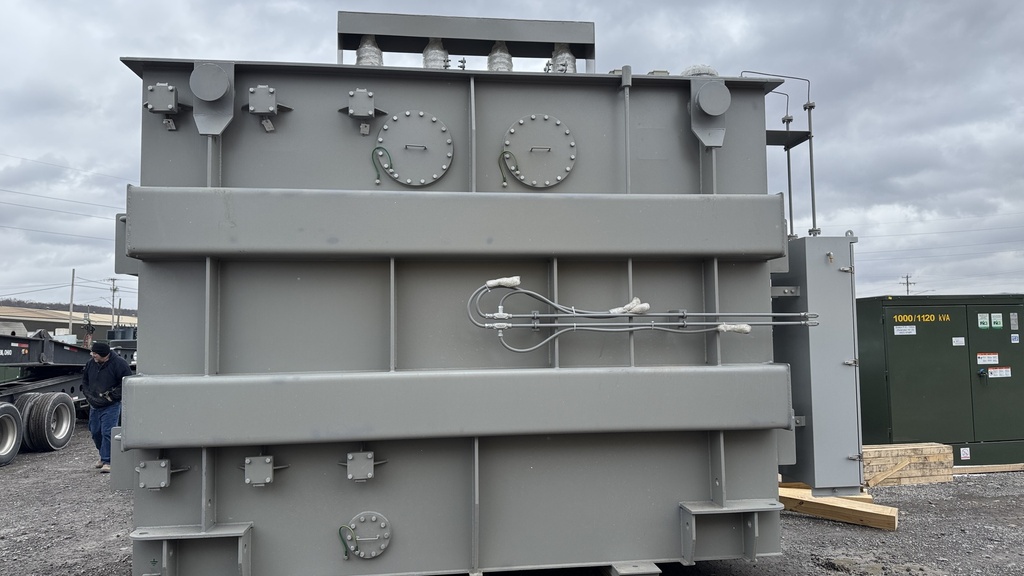

30MVA 138000 D - 13800 Y Substation Transformer

One (1) 30/33.6/39.9/44.7/50/56 MVA Substation Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Mineral Oil Filled,
55/65 Deg C Rise, % Impedance, All CU Windings,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 650 kV
LV: 13800 Wye BIL: 110 kV

Taps: 144900-141450-138000-134550-131100

CORE & COIL WEIGHT 67615 lb
TANK & FITTINGS WEIGHT 30460 lb
FLUID WEIGHT 39845 lb
FLUID GALLONS 5490 gal (US)
TOTAL WEIGHT 137920 lb

Overall Dimensions: 205"L x 197"W x 201"H
Shipping Dimensions: 192"L x 97"W x 145.5"H
