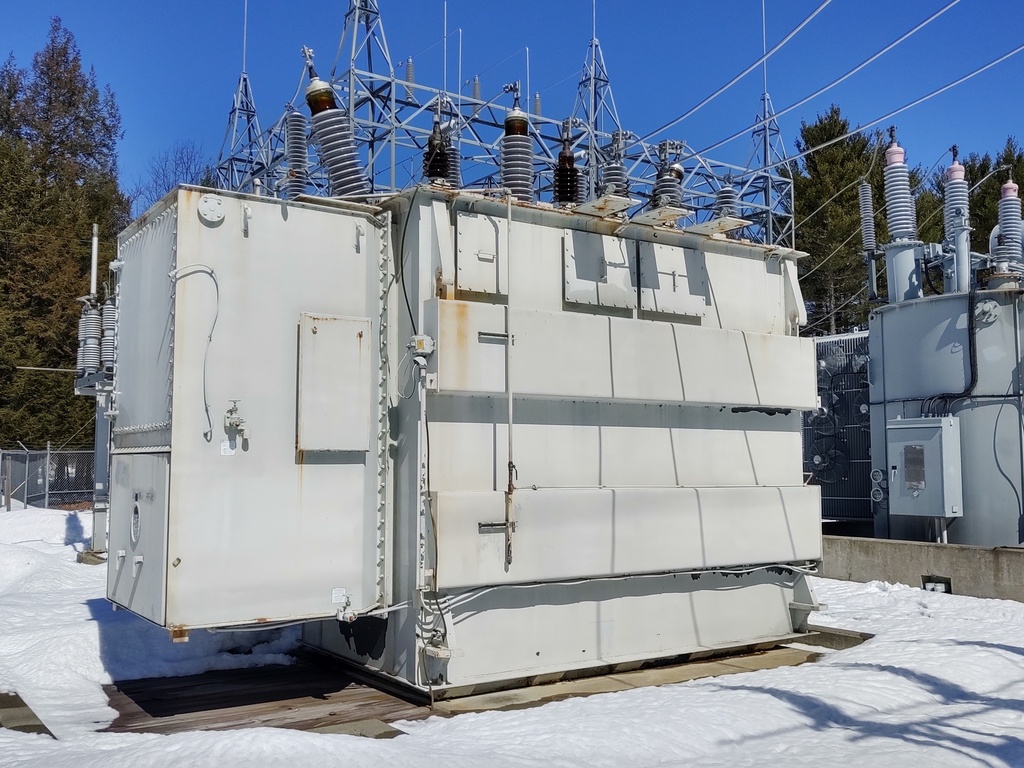

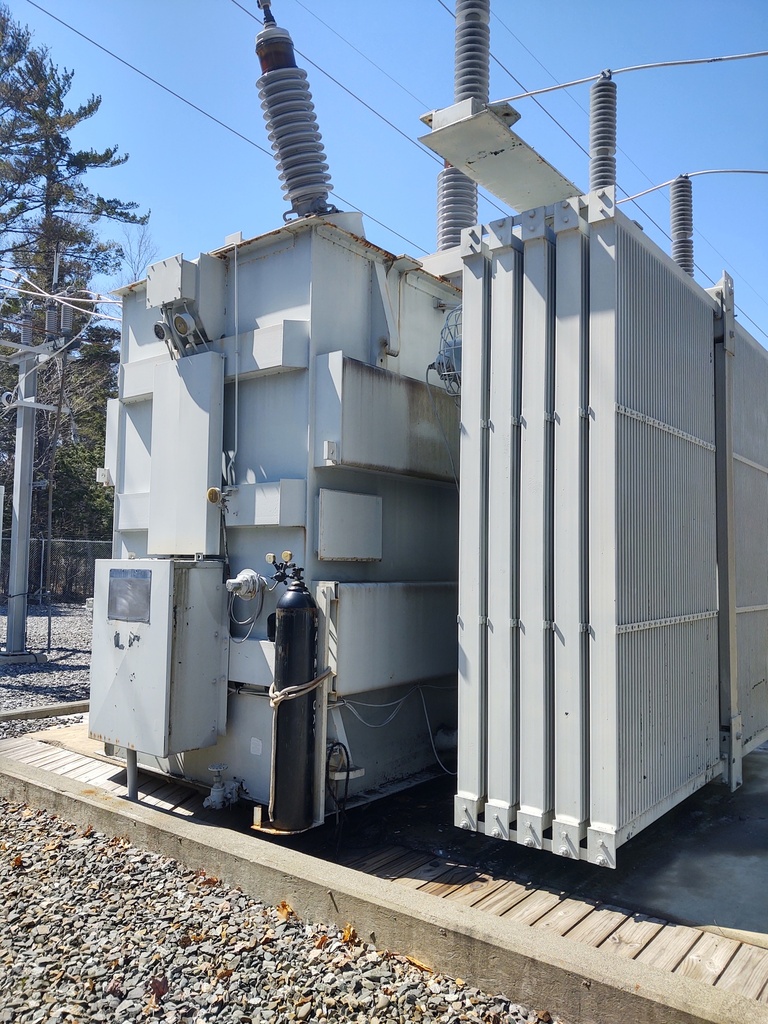

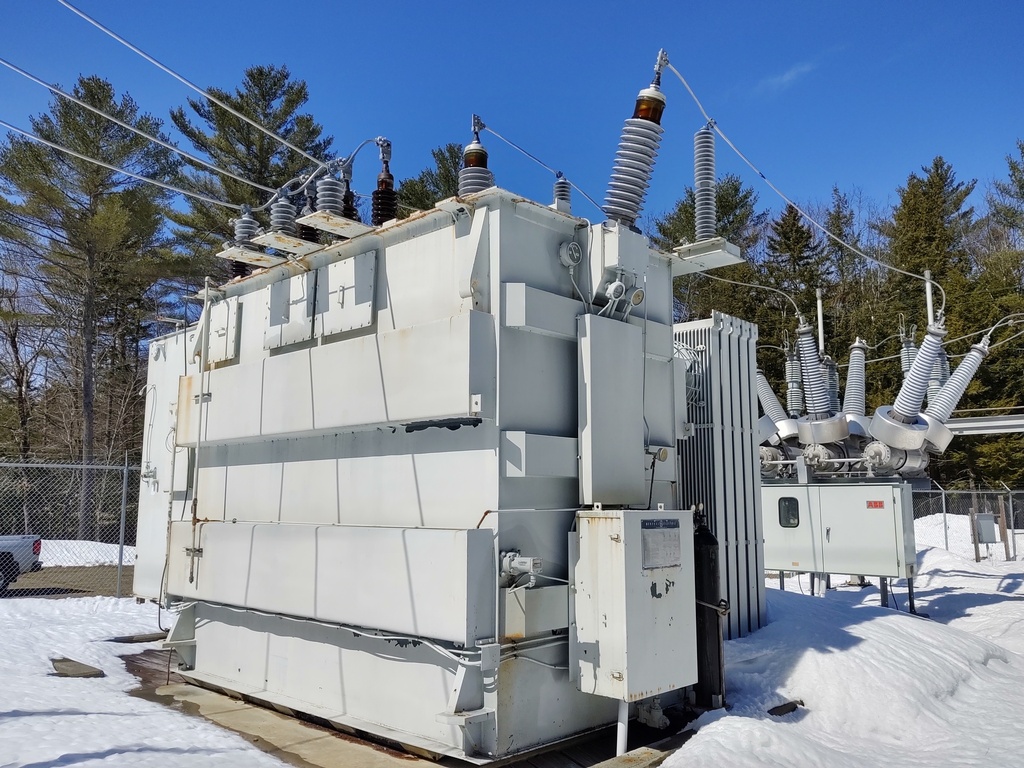

21MVA 138000D - 36300GY GE LTC Transformer

One (1) 21/28/35 MVA Generl Electric LTC Substation Transformer
3 Ph, 60 Hz, OA/FOA/FOA, Mineral Oil Filled,
65 Deg C Rise, 7.92% Impedance, Mechanism housing on ANSI 4,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 550 kV
LV: 36300 Ground Wye BIL: 200 kV

Taps: 141450-138000-134550-131100

LV Taps: +/- 0.625% in 16 steps up and down

CORE & COIL WEIGHT 58600 lb
TANK & FITTINGS WEIGHT 41400 lb
FLUID WEIGHT 49400 lb
FLUID GALLONS 6625 gal (US)
TOTAL WEIGHT 149400 lb

Dimensions: TBD
