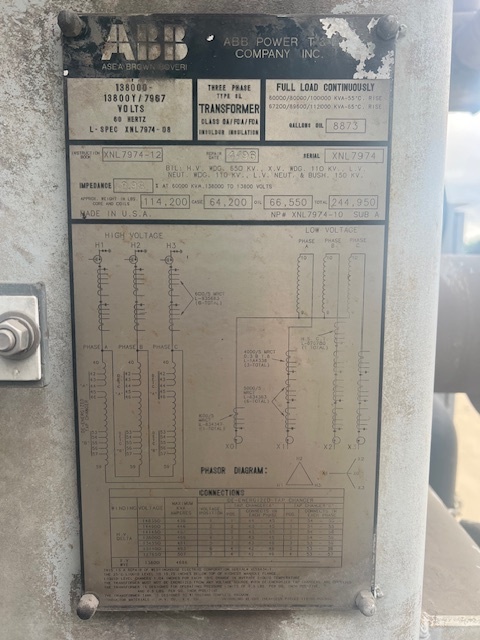

60 MVA 138000D - 13800Y ABB Substation Transformer

One (1) 60/80/100 MVA ABB Substation Transformer
3 Ph, 60 Hz, OA/FOA/FOA, Mineral Oil Filled,
55/65 Deg C Rise, 8.96% Impedance,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 650 kV
LV: 13800 Wye BIL: 110 kV

Taps: 144900-141450-138000-134550-131100

CORE & COIL WEIGHT 114200 lb
TANK & FITTINGS WEIGHT 64200 lb
FLUID WEIGHT 66550 lb
FLUID GALLONS 8873 gal (US)
TOTAL WEIGHT 244950 lb

Dimensions: 206"L x 123"W x 178"H
