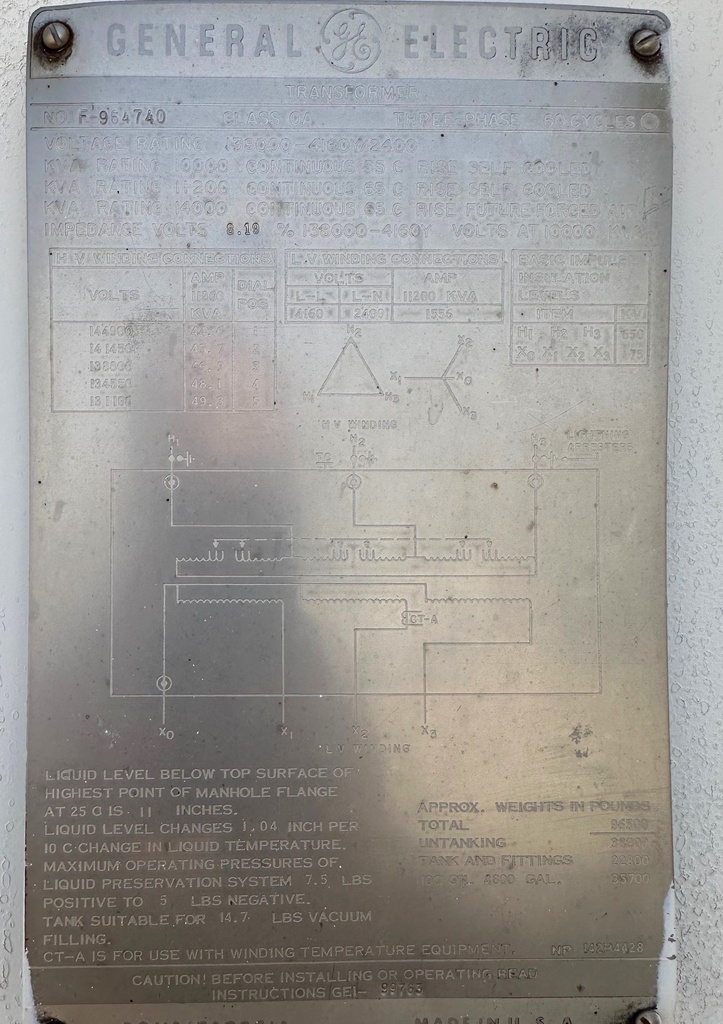

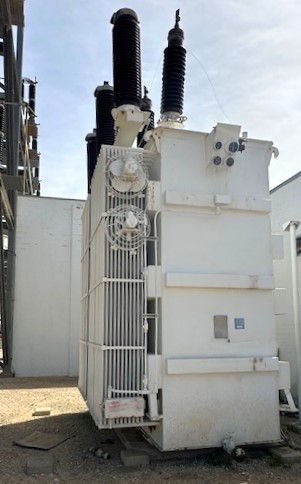

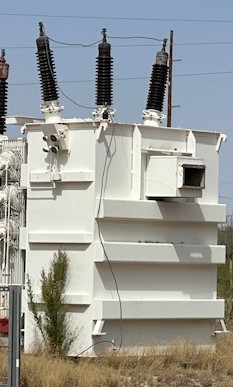

10MVA 138000D - 4160Y General Electric Substation Transformer

One (1) 10/14/17 MVA GE Substation Transformer
3 Ph, 60 Hz, OA/FA/FA, Mineral Oil Filled,
55/65 Deg C Rise, 8.34% Impedance,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 650 kV
LV: 4160 Wye BIL: 75 kV

Taps: 144900-141450-138000-134550-131100

CORE & COIL WEIGHT 38000 lb
TANK & FITTINGS WEIGHT 22800 lb
FLUID WEIGHT 35700 lb
FLUID GALLONS 4800 gal (US)
TOTAL WEIGHT 96500 lb

Dimensions: TBD
