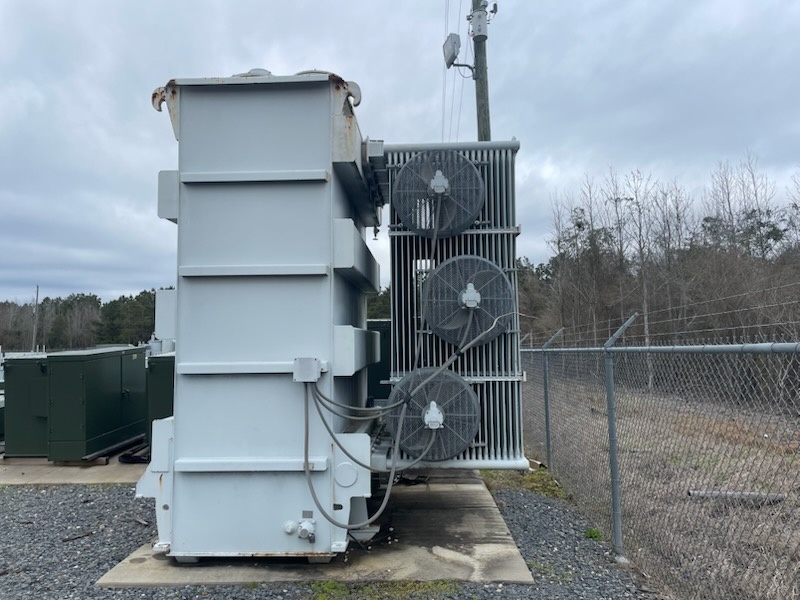

12 MVA 67000D - 12470Y T&R Substation Transformer

One (1) 12/13.44/16/17.875 MVA T&R Substation Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Mineral Oil Filled,
55/65 Deg C Rise, All CU Windings, 7.5% Impedance,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

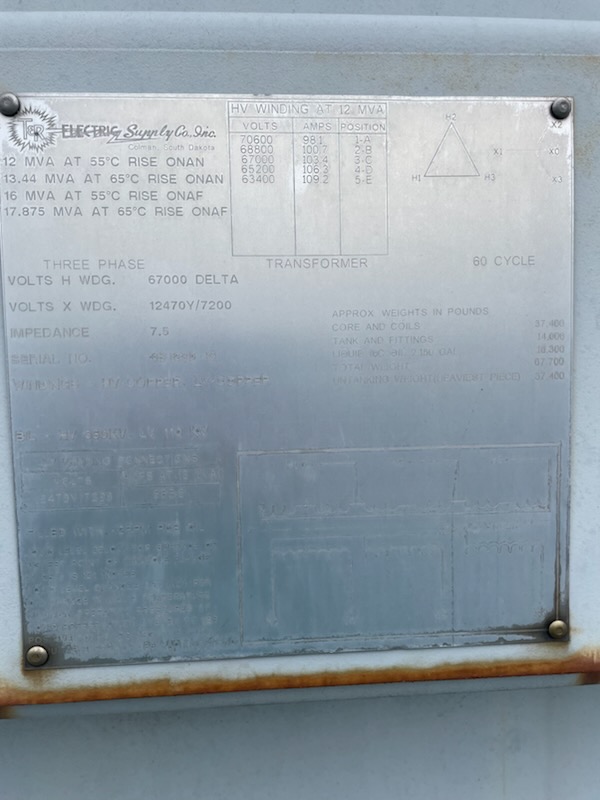

HV: 67000 Delta BIL: 550 kV
LV: 12470 Wye BIL: 110 kV

Taps: 70600-68800-67000-65200-63400

CORE & COIL WEIGHT 37400 lb
TANK & FITTINGS WEIGHT 14000 lb
FLUID WEIGHT 10300 lb
FLUID GALLONS 2180 gal (US)
TOTAL WEIGHT 67700 lb

Dimensions: TBD
