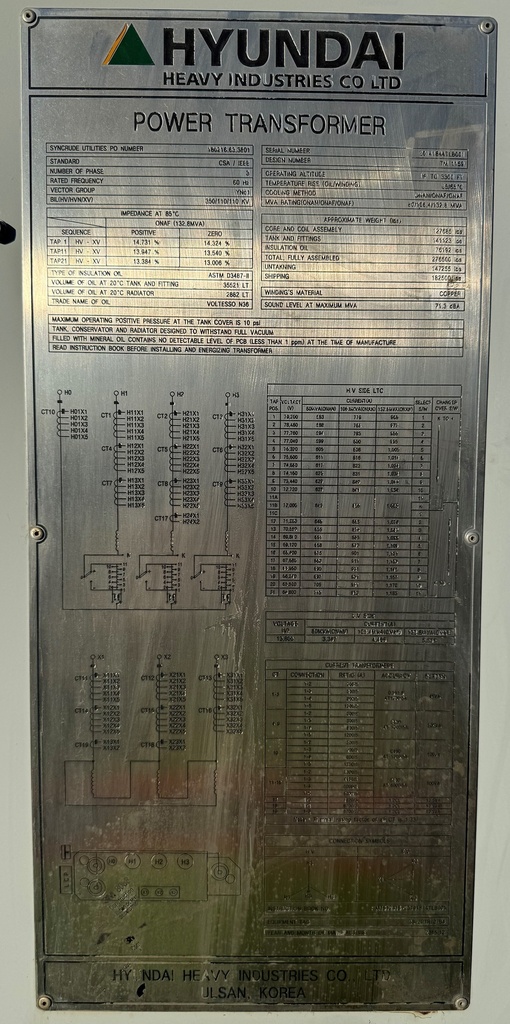

80 MVA 72000Y - 13800D Hyundai GSU Substation Transformer

One (1) 80/106.4/132.8 MVA Hyundai GSU Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Top-Top Bushings,
65/65 Deg C Rise, All CU Windings, 14.731% Impedance,
Liquid level Gauge, Liquid Temp Gauge,
Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves, Mineral Oil Filled; CSA/IEEE Standard

HV: 72000 Wye BIL: 350 kV
LV: 13800 Delta BIL: 110 kV

Taps: HV, +/- 0.625% in 32 steps up and down from nominal

CORE & COIL WEIGHT 127685 lb
TANK & FITTINGS WEIGHT 141123 lb
FLUID WEIGHT 76192 lb
FLUID GALLONS 10144 gal (US)
TOTAL WEIGHT 276500 lb

Shipping Dimensions:
Overall Dimensions:
