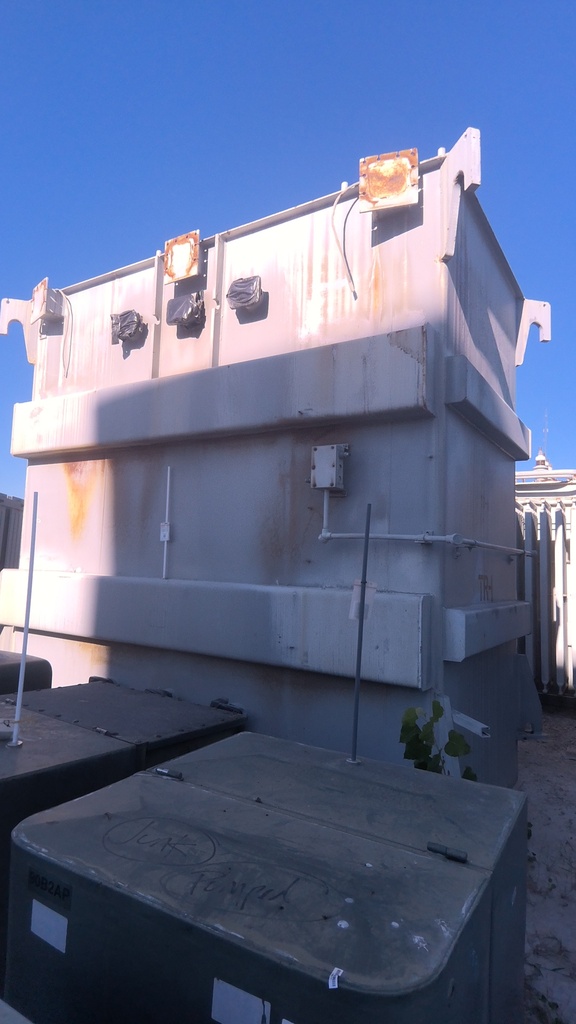

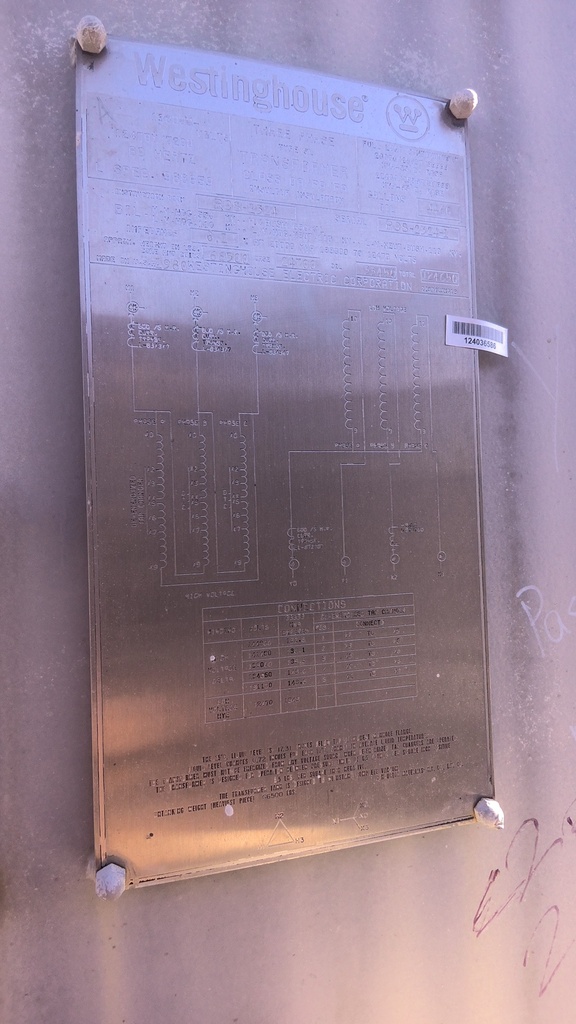

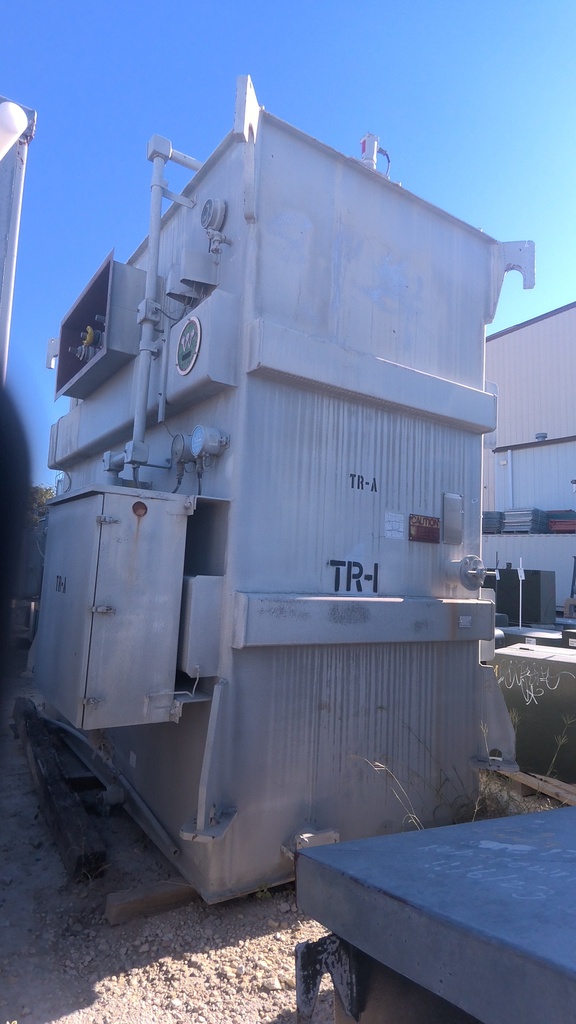

20 MVA 138000D - 12470Y Westinghouse Substation Transformer

One (1) 20/25 MVA Westinghouse Substation Transformer
3 Ph, 60 Hz, OA/FA/FA, Mineral Oil Filled,
55/65 Deg C Rise, All CU Windings, 8.2% Impedance,
Top-Side Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 550 kV
LV: 12470 Wye BIL: 110 kV

Taps: 144900-141450-138000-134550-131100

CORE & COIL WEIGHT 66500 lb
TANK & FITTINGS WEIGHT 24700 lb
FLUID WEIGHT 33450 lb
FLUID GALLONS 4460 gal (US)
TOTAL WEIGHT 124650 lb

Dimensions: 156"L x 90"W x 168"H
