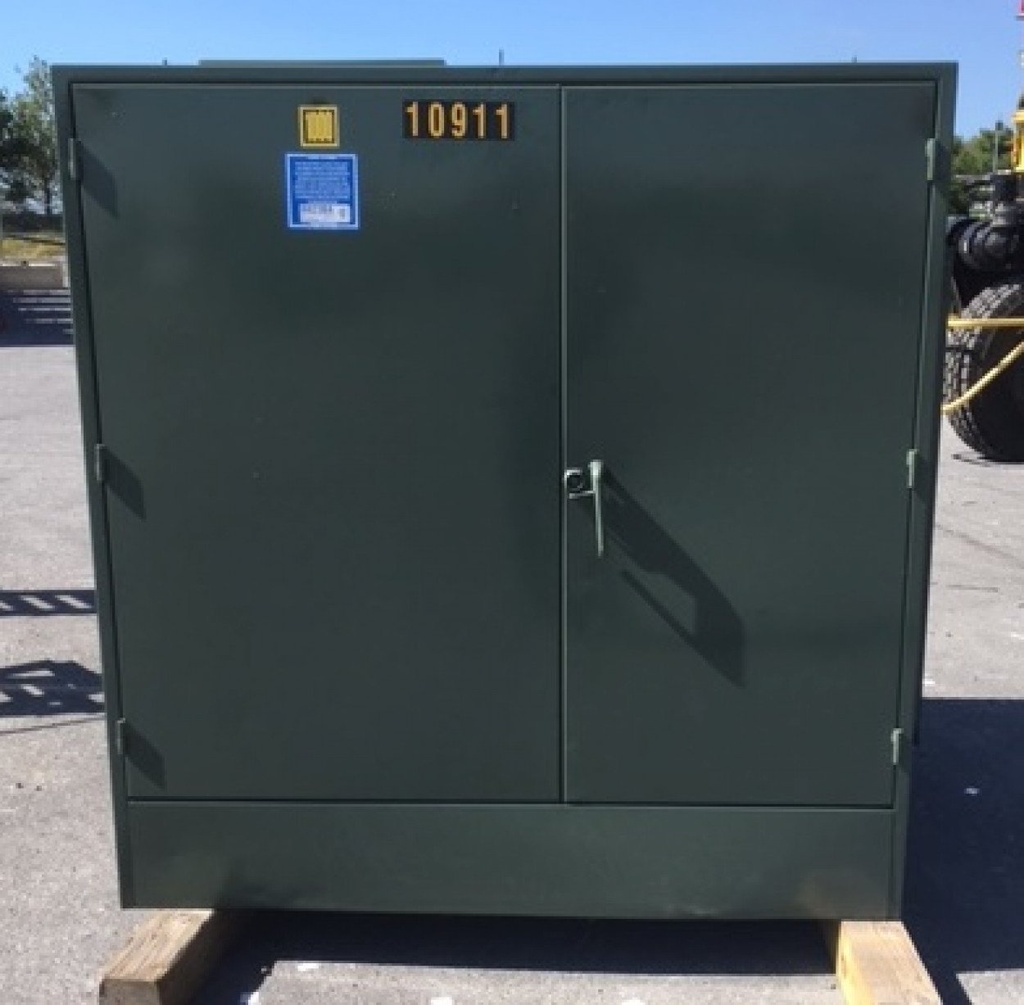

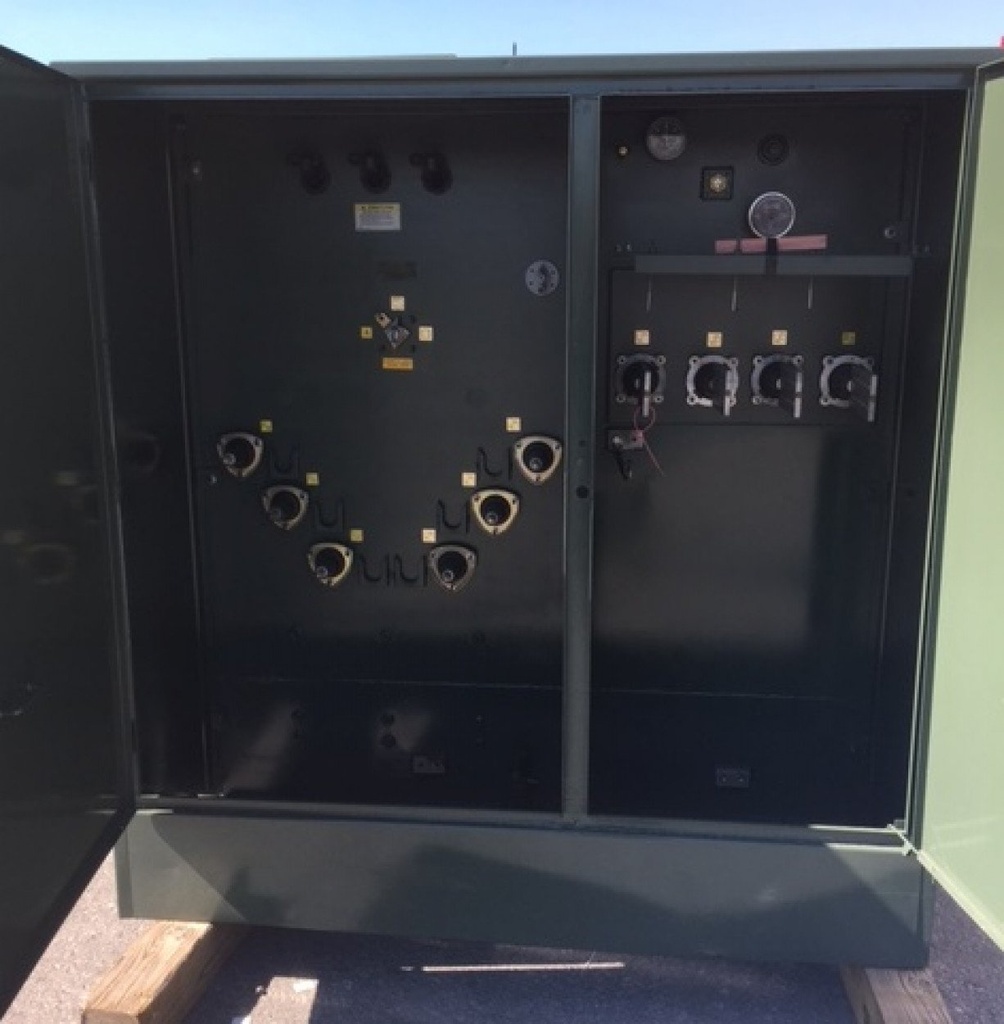

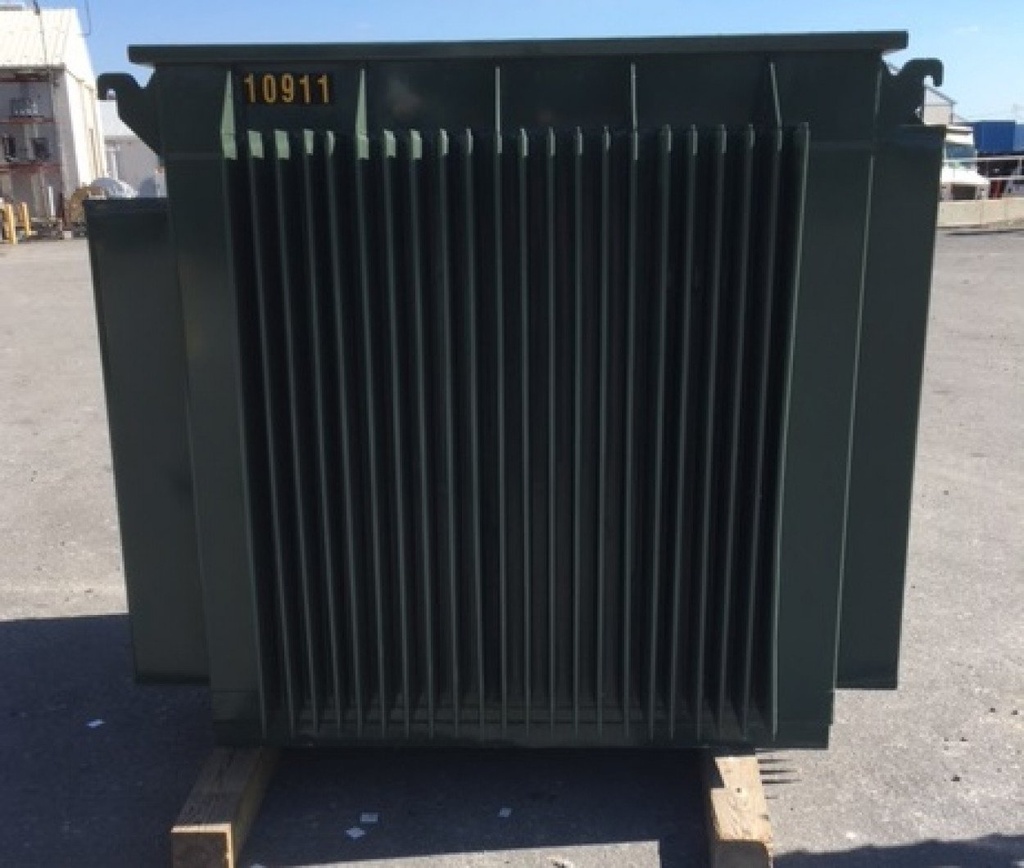

1000 kVA 12470D - 480Y T&R Padmount Transformer

1000 KVA T&R Padmount Transformer, 60hz, 65 Deg C Rise
Class ONAN, 3 Ph, All Aluminum Windings, Dead Front, Loop Feed,
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,
Pressure Relief Valve, Tap Changer, Bay-O-Net Fuses

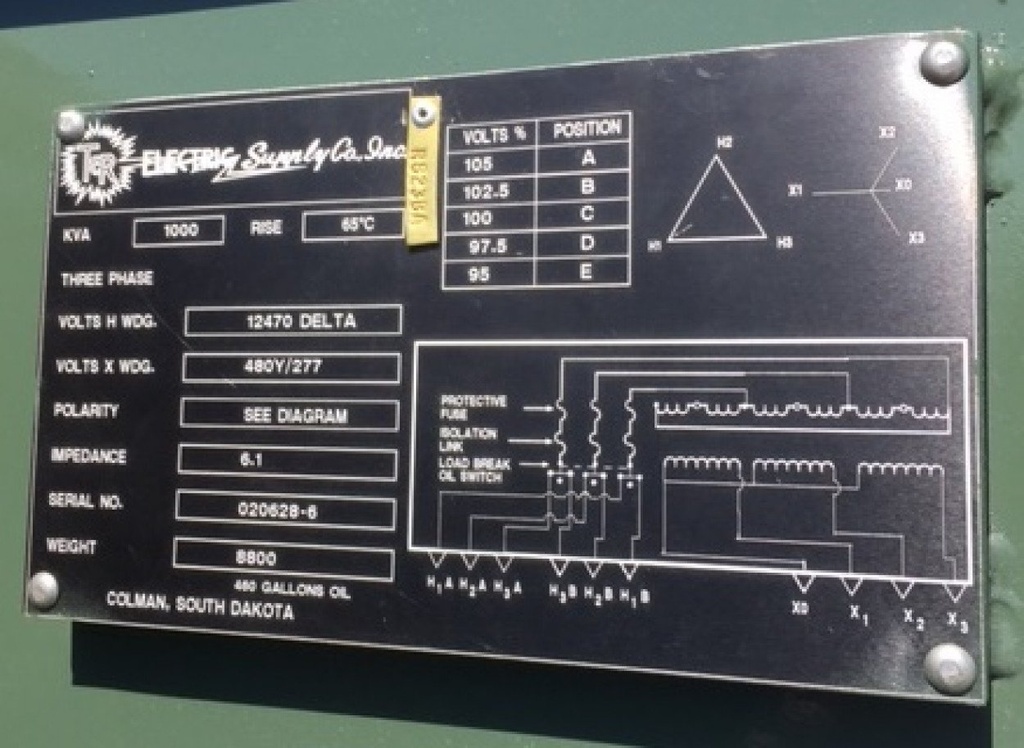

HV: 12470 Delta 95 kV BIL
LV: 480Y/277 30 kV BIL

Taps: 13093-12870-12470-12158-11846

Total Weight: 8800 lbs
Core & Coils: lbs
Tank & Fitt: lbs
Liquid (Oil): lbs (460 Gal)

75"H x 84.5"L x 75"D
