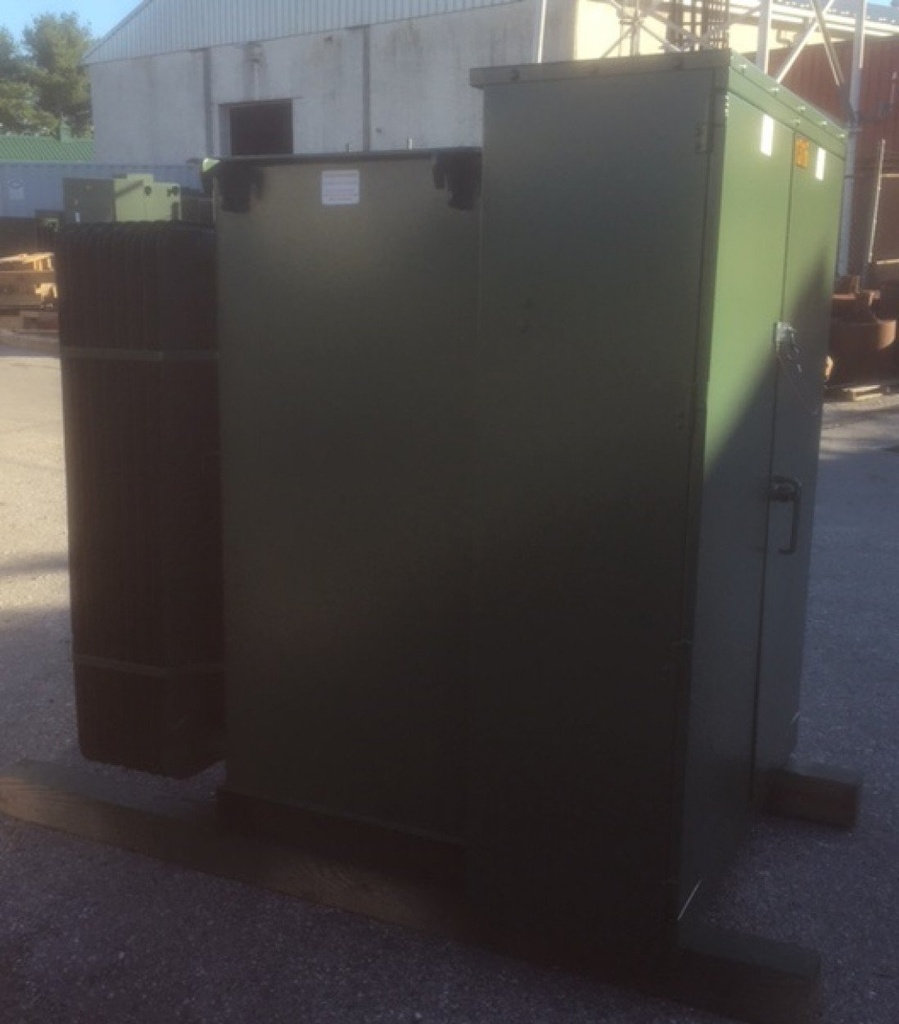

1000 kVA 4160D x 14400D - 480Y GE Padmount Transformer
Product Number:
046487
Full Product Description
1000 KVA GE Padmount Transformer, 60hz, 65 Deg C Rise

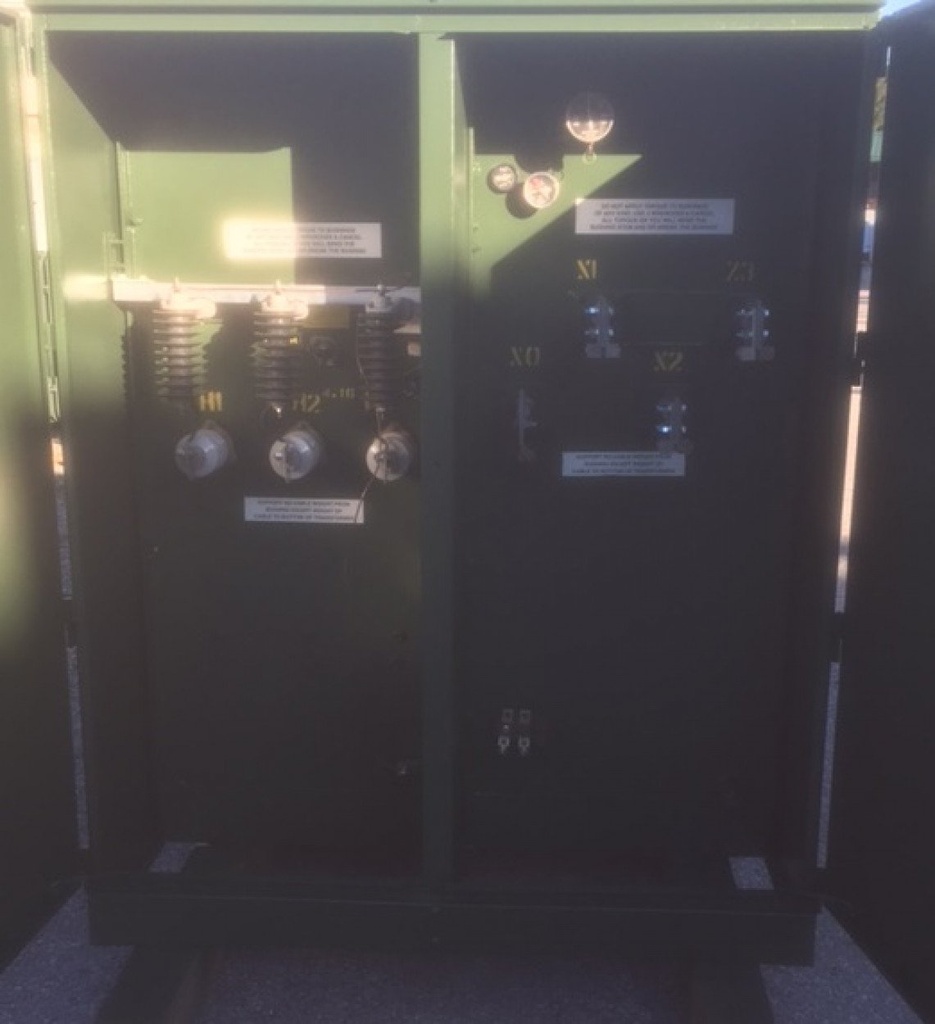

Class ONAN, 3 Ph, All Aluminum Windings, Live Front, Radial Feed,
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,
Pressure Relief Valve, Tap Changer

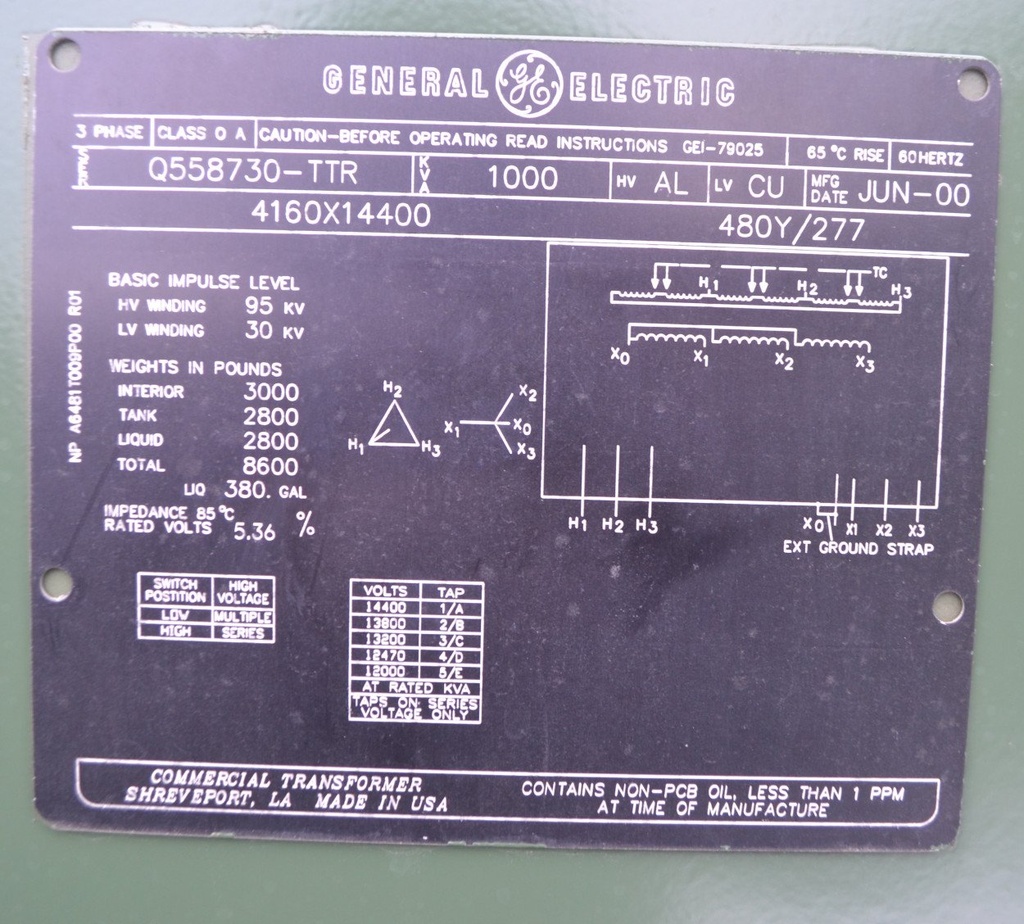

HV: 4160 x 14400 Delta 95 kV BIL
LV: 480Y/277 30 kV BIL
Taps: 14400-13800-13200-12470-12000
Total Weight: 8600 lbs
Core & Coils: 3000 lbs
Tank & Fitt: 2800 lbs
Liquid (Oil): 2800 lbs (380 Gal)
81"H x 65.5"L x 50.5"D
