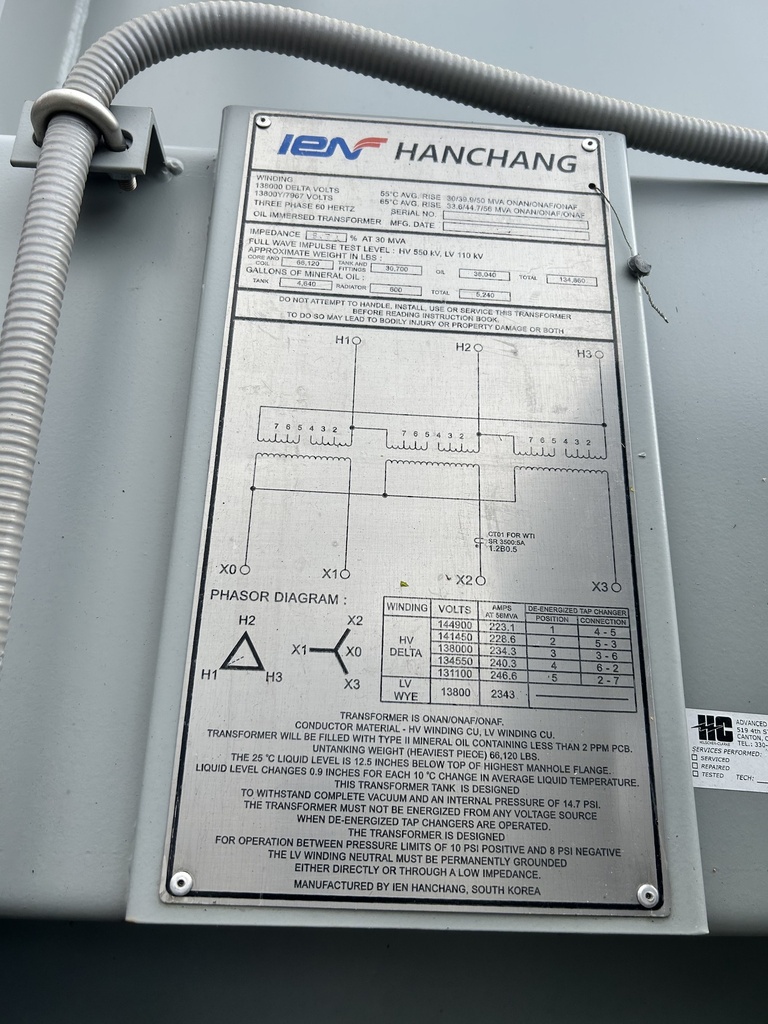

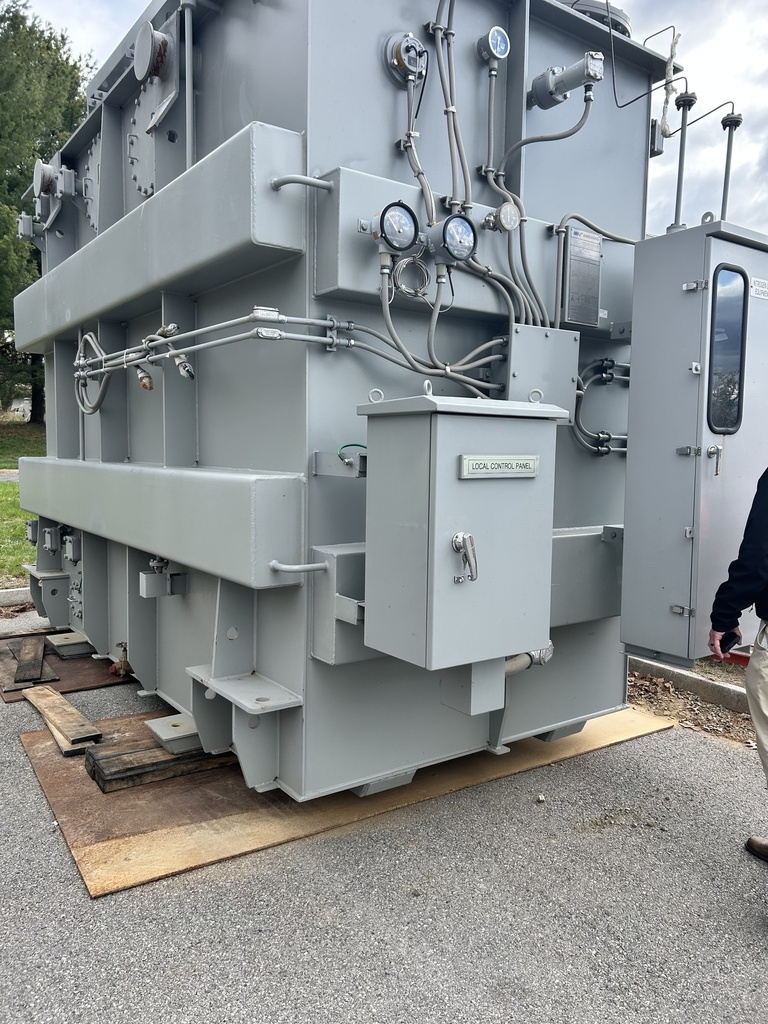

30 MVA 138000D - 13800Y Hanchang Substation Transformer

One (1) 30/33.6/39.9/44.7/50/56 MVA Hanchang Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Mineral Oil Filled
55/65 Deg C Rise, All CU Windings, 8.74% Impedance,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves

HV: 138000 Delta BIL: 550 kV
LV: 13800 Wye BIL: 110 kV

Taps: 144900-141450-138000-134550-131100

CORE & COIL WEIGHT 66120 lb
TANK & FITTINGS WEIGHT 30700 lb
FLUID WEIGHT 38040 lb
FLUID GALLONS 5240 gal (US)
TOTAL WEIGHT 134860 lb
