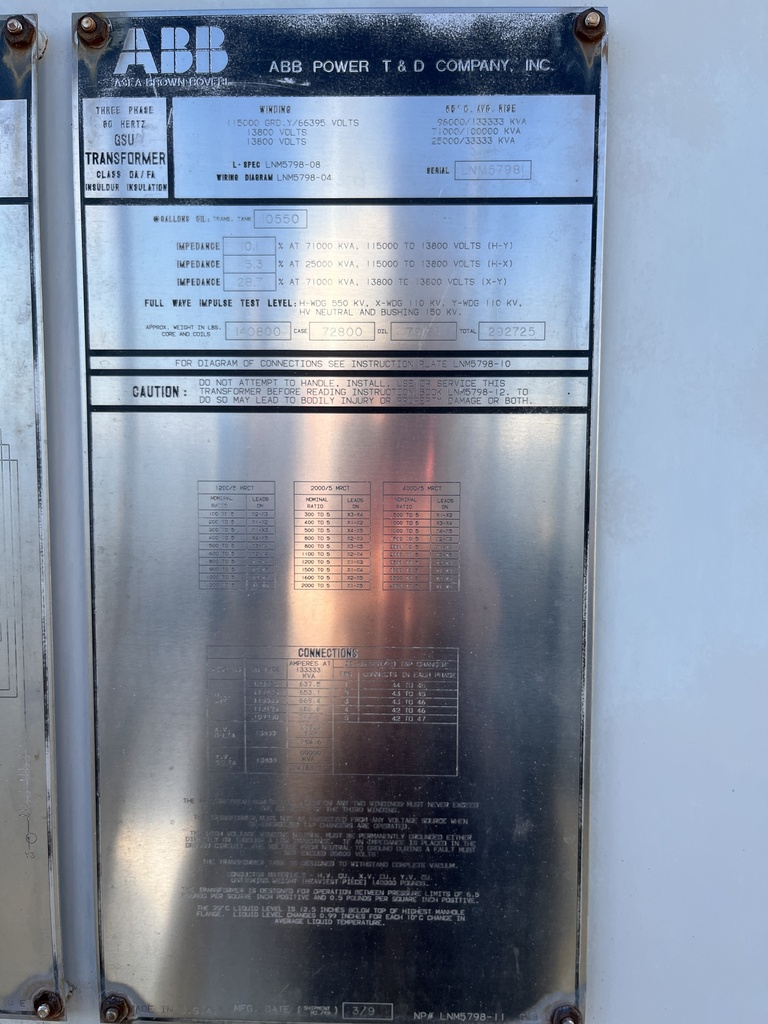

96/133 MVA 115000GRDY - 13800D ABB GSU Substation Transformer with Split Secondary

One (1) 71/96/100/133 MVA ABB GSU Transformer with Split Secondary
3 Ph, 60 Hz, OA/FA, Top-Top Bushings,
65 Deg C Rise, All CU Windings, 10.1% Impedance,
Liquid level Gauge, Liquid Temp Gauge,
Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves, Mineral Oil Filled

HV: 115000 GRD Y BIL: 550 kV
LV1: 13800 Delta (At 100MVA) BIL: 110 kV
LV2: 13800 Delta (At 33MVA) BIL: 110 kV

Taps: 120750-117675-115000-112125-109250

CORE & COIL WEIGHT 140800 lb
TANK & FITTINGS WEIGHT 72800 lb
FLUID WEIGHT 79125 lb
FLUID GALLONS 10550 gal (US)
TOTAL WEIGHT 292725 lb

Shipping Dimensions:
Overall Dimensions:
