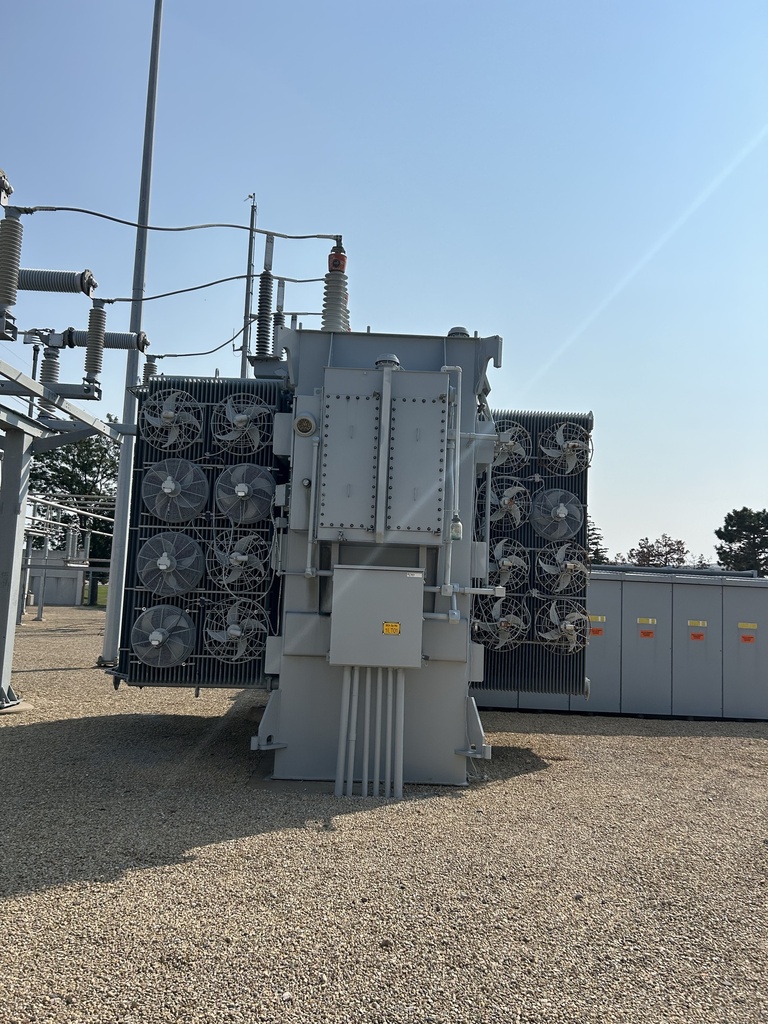

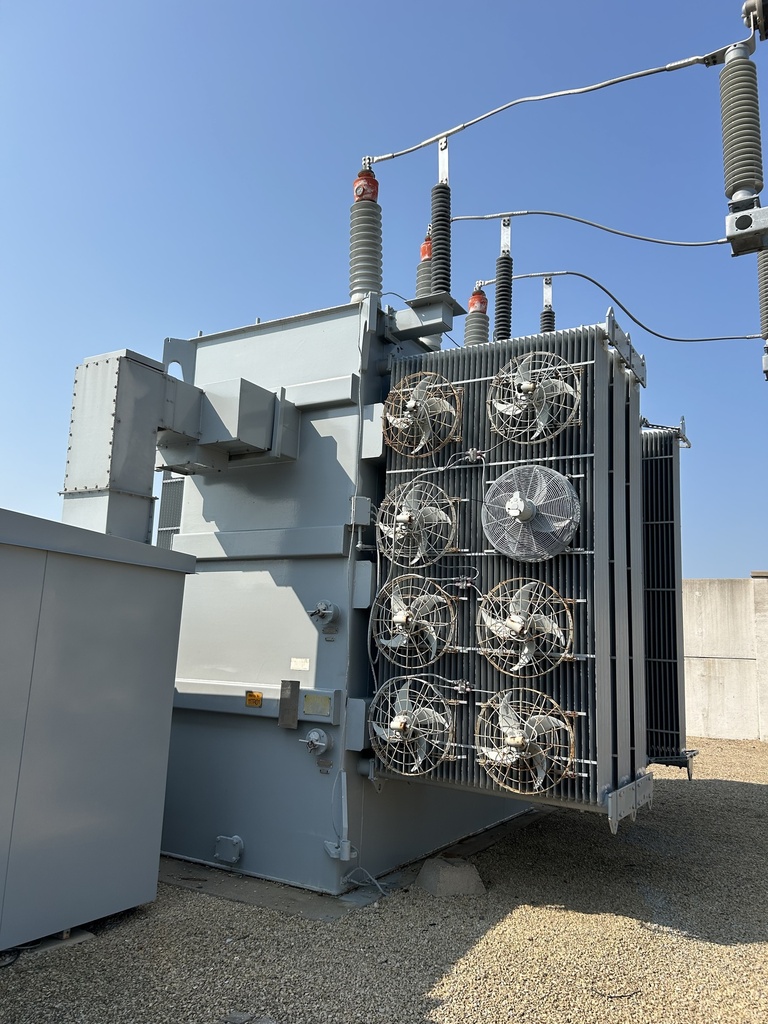

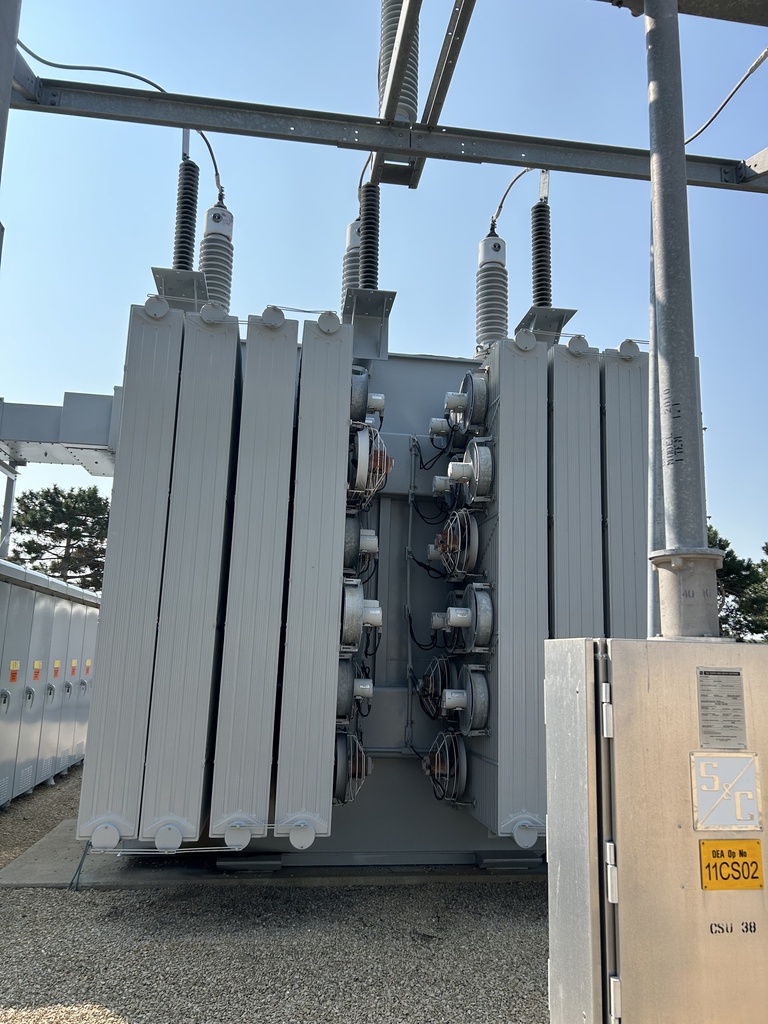

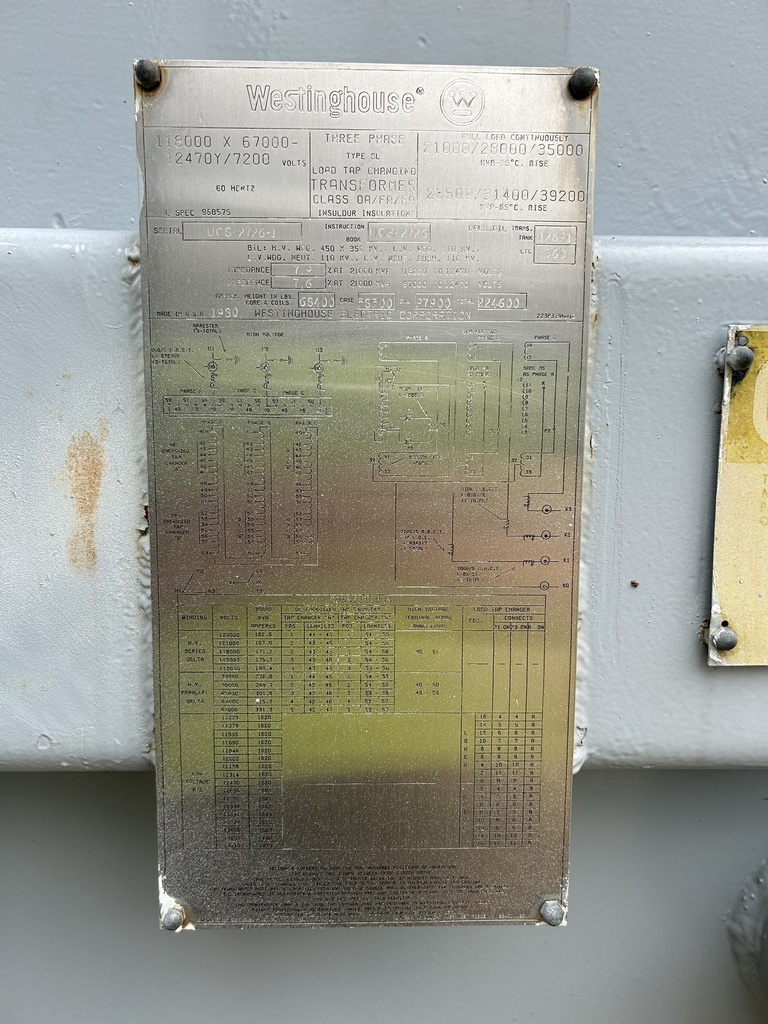

21MVA 118000D x 67000D - 12470Y Westinghouse LTC Substation Transformer
Substation Transformer
Product Number:
046460
Full Product Description
JVT-3934
One (1) 21/23.5/28/31.4/35/39.2 MVA Westinghouse Dual Primary LTC Substation Transformer
3 ph, 60 Hz, OA/FA/FA, 65 Deg C Rise, Dual Primary, LTC,
All Copper Windings, 7.9% Impedance, Liquid Level Gauge,
Liquid Temp Gauge, Vacuum Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Top-Side Bushings
HV1: 118000 Delta BIL: 450 KV
HV2: 67000 Delta BIL: 350 KV
LV: 12470 Wye BIL: 110 KV
HV1 Taps: 124000-121000-118000-115000-112000
HV2 Taps: 73000-70000-67000-64000-61000
LV Taps: +/- 0.625% in 32 steps
CORE & COIL WEIGHT 68400 lb
TANK & FITTINGS WEIGHT 58300 lb
FLUID WEIGHT 97900 lb
FLUID GALLONS 13051 gal (US)
TOTAL WEIGHT 224600 lb
SHIPPING WEIGHT: 112700 lb Less Rads and Accessories
Shipping Dimensions - Main Tank: 104"W x 224"L x 199"H
