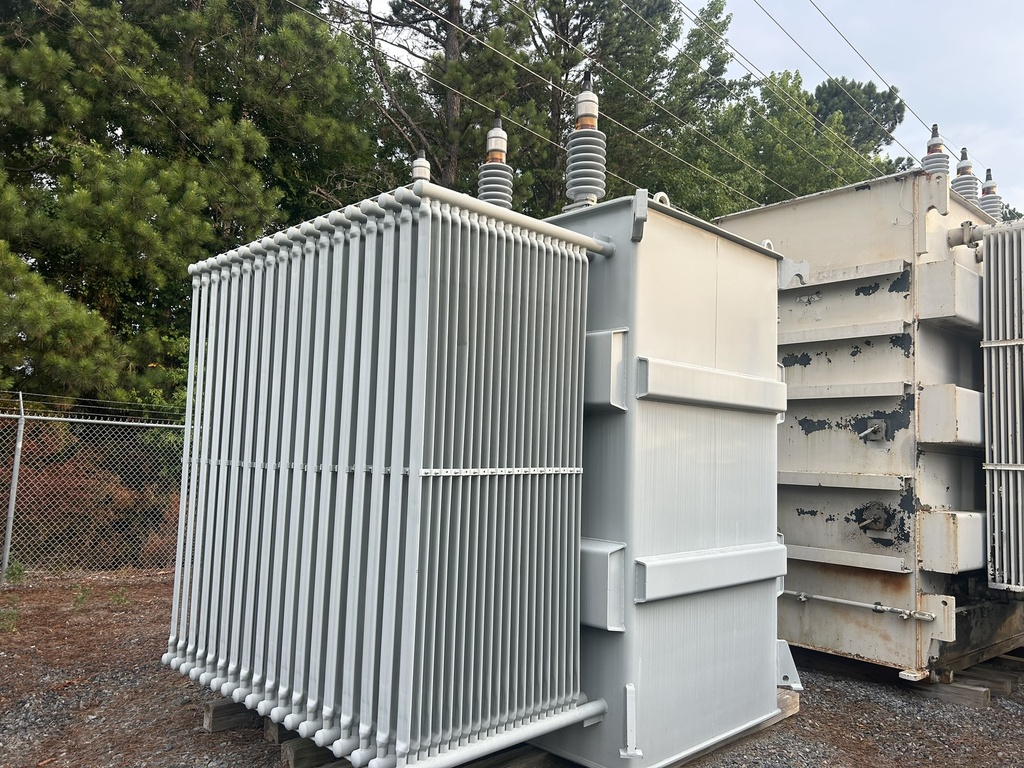

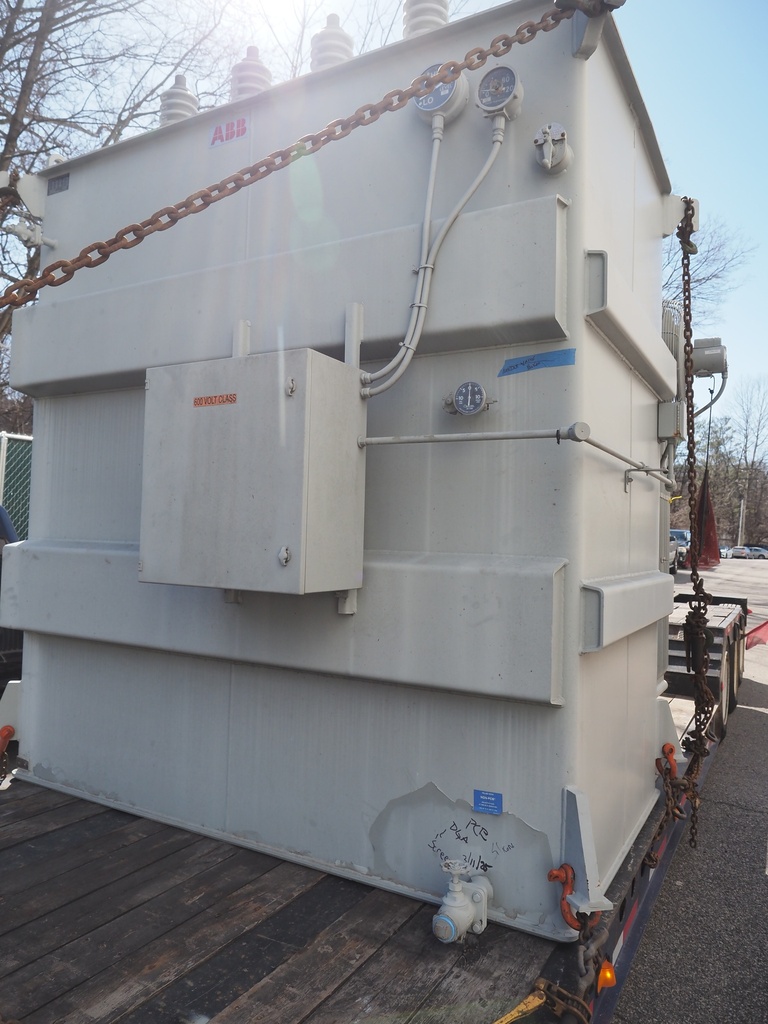

10/11.2/12.5/14 MVA 43800D - 4160Y ABB Substation Transformer

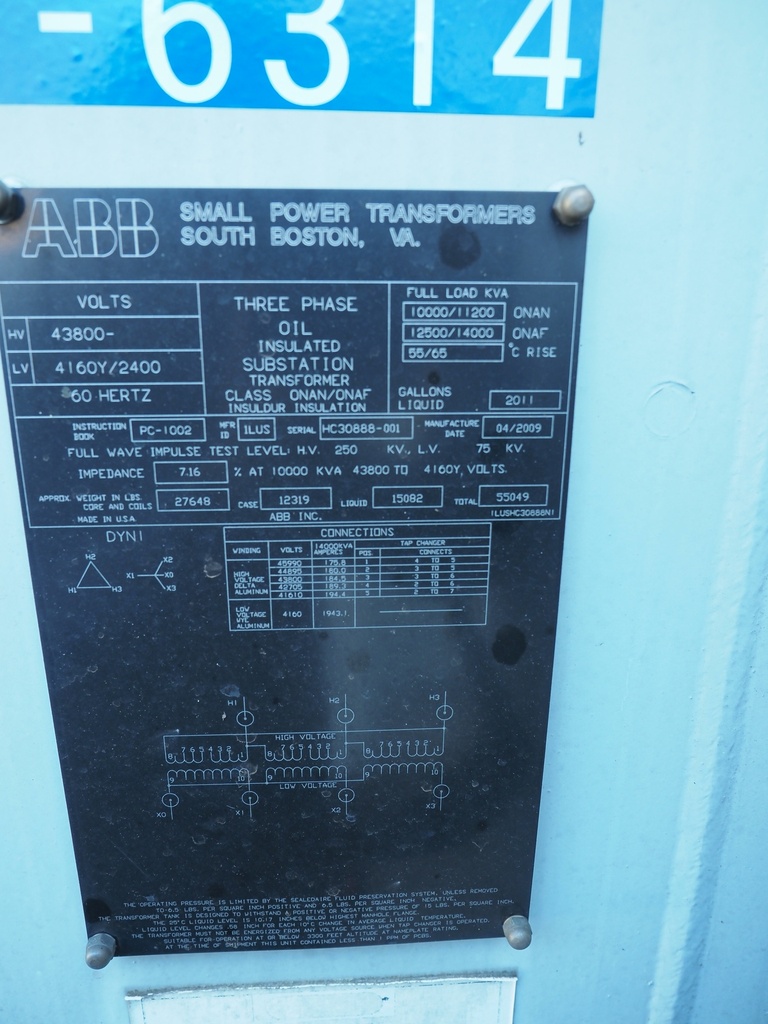

T-6314

One (1) 10/11.2/12.5/14 MVA ABB Transformer,

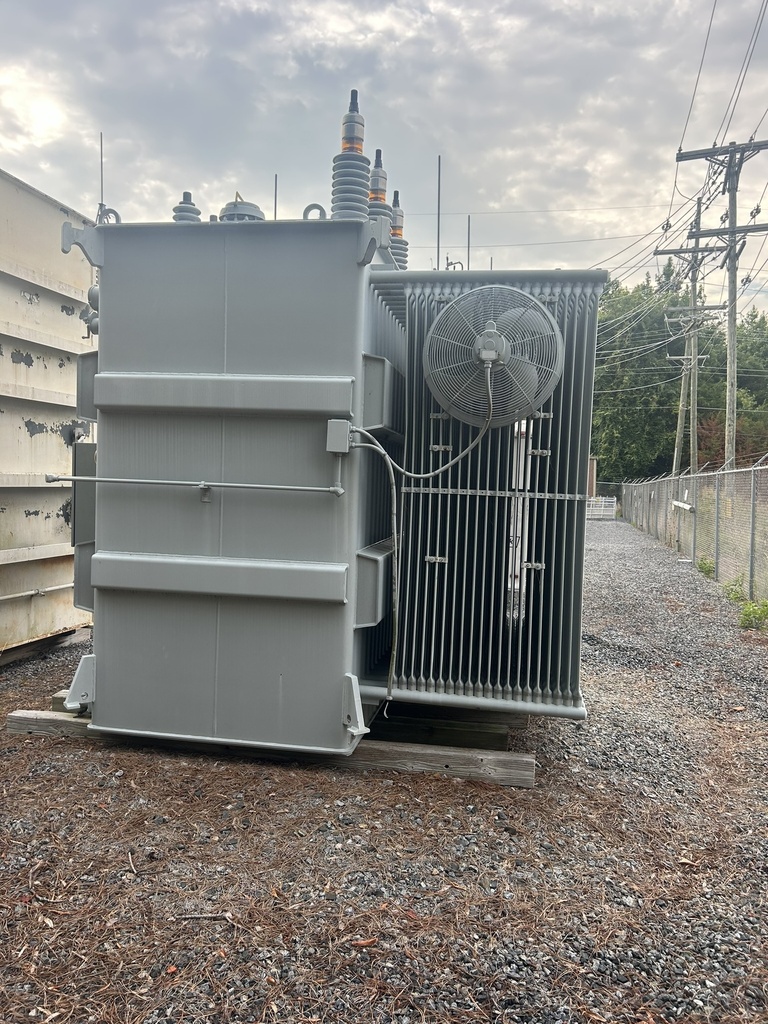

3 Ph, 60 Hz, ONAN/ONAF,
55/65 Deg C Rise, 7.16% Impedance,

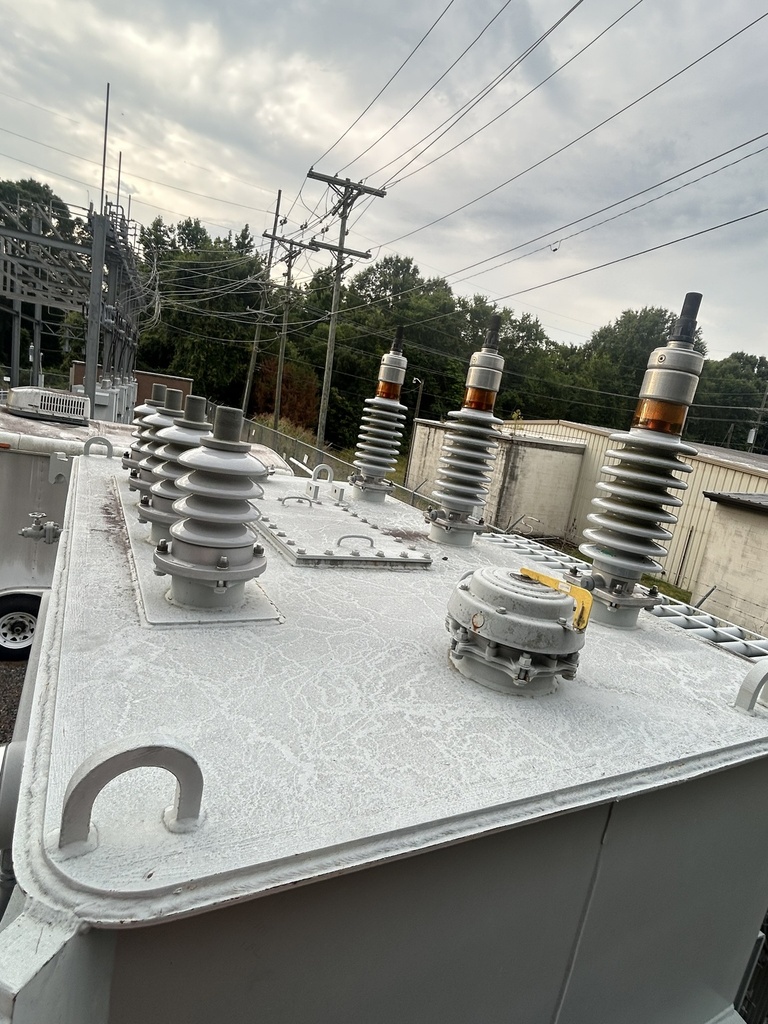

Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauge, Pressure Relief Device,
Drain & Sample Valves, Mineral Oil Filled

HV: 43800 Delta BIL: 250 kV
LV: 4160 Wye BIL: 75 kV

Taps: 45990-44895-43800-42705-41610

CORE & COIL WEIGHT 27648 lb
TANK & FITTINGS WEIGHT 12319 lb
FLUID WEIGHT 15082 lb
FLUID GALLONS 2011 gal (US)
TOTAL WEIGHT 55049 lb

Shipping Dimensions:
Overall Dimensions:
