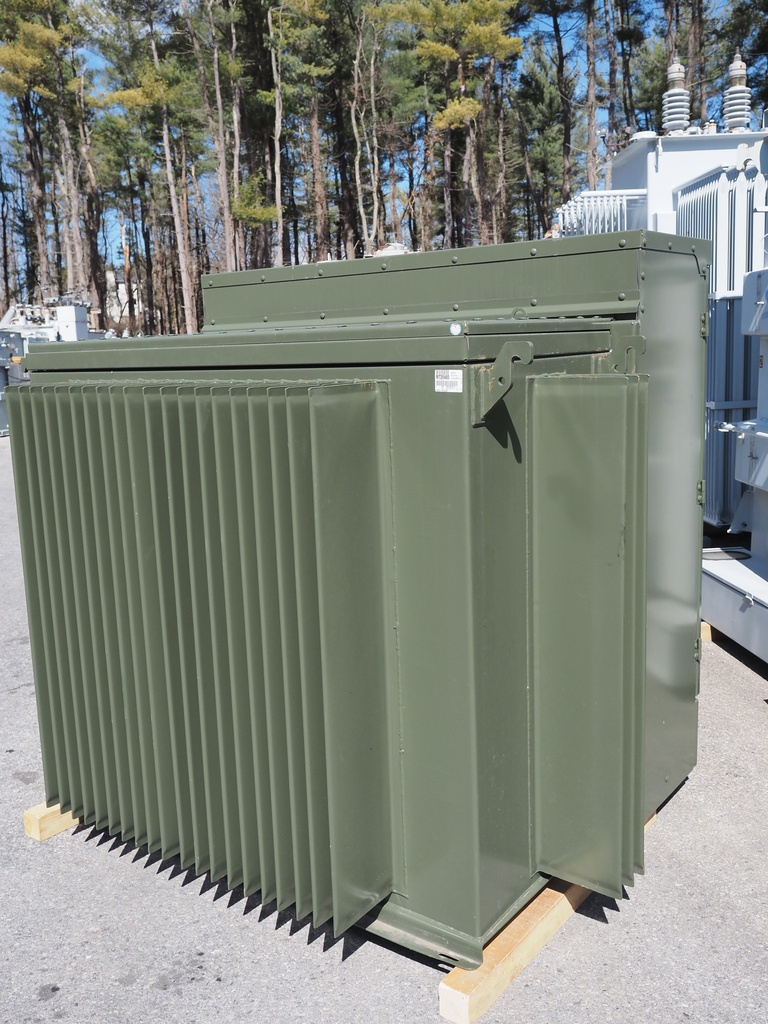

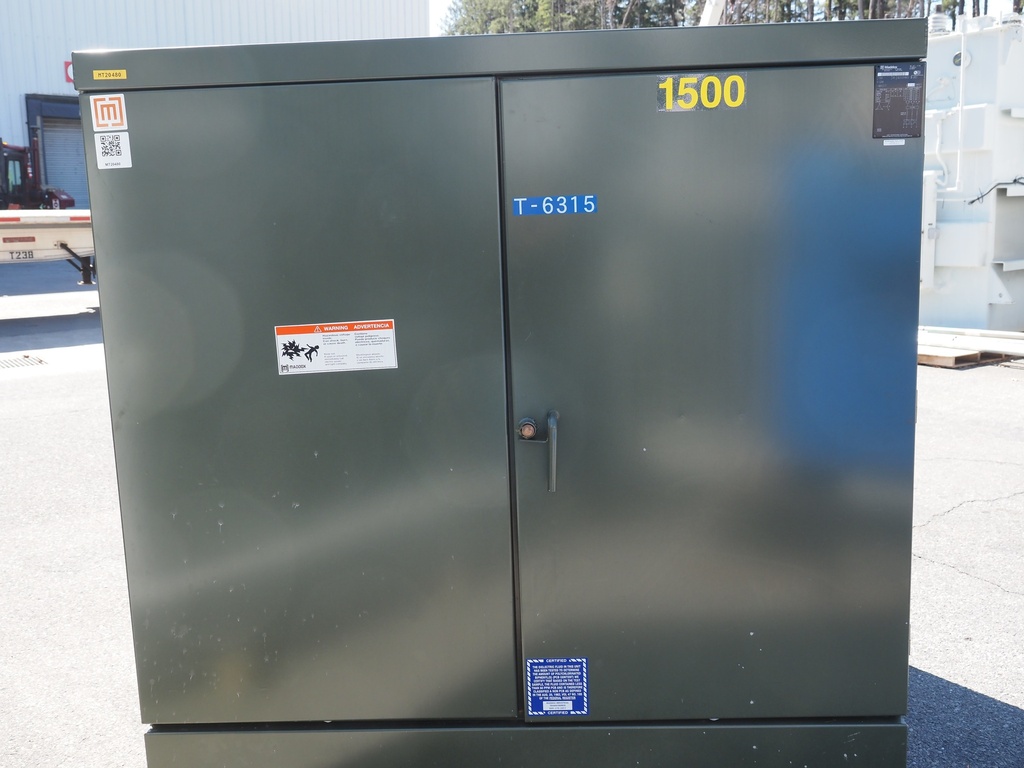

1500 KVA 13200D-480Y/277 Maddox Padmount, Dead Front, Loop Feed

1500 KVA Maddox Padmount Transformer, 60hz, 85 Deg C Rise

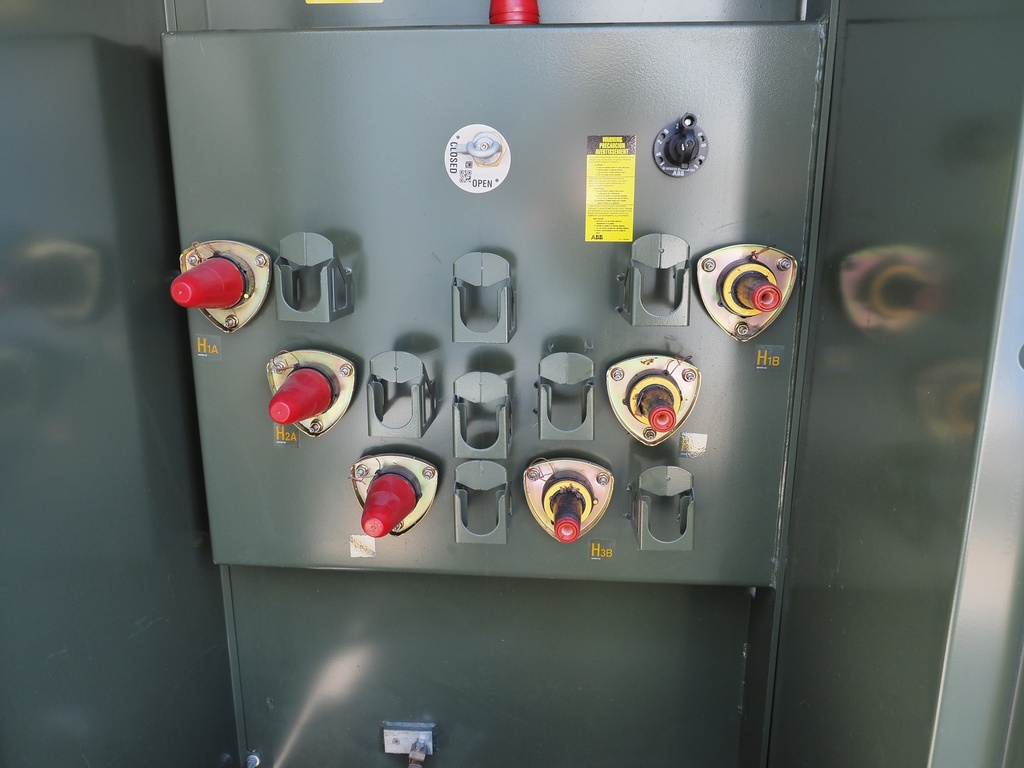

Class ONAN, 3 Ph, All Alumuinum Windings, Dead Front, Loop Feed,
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,

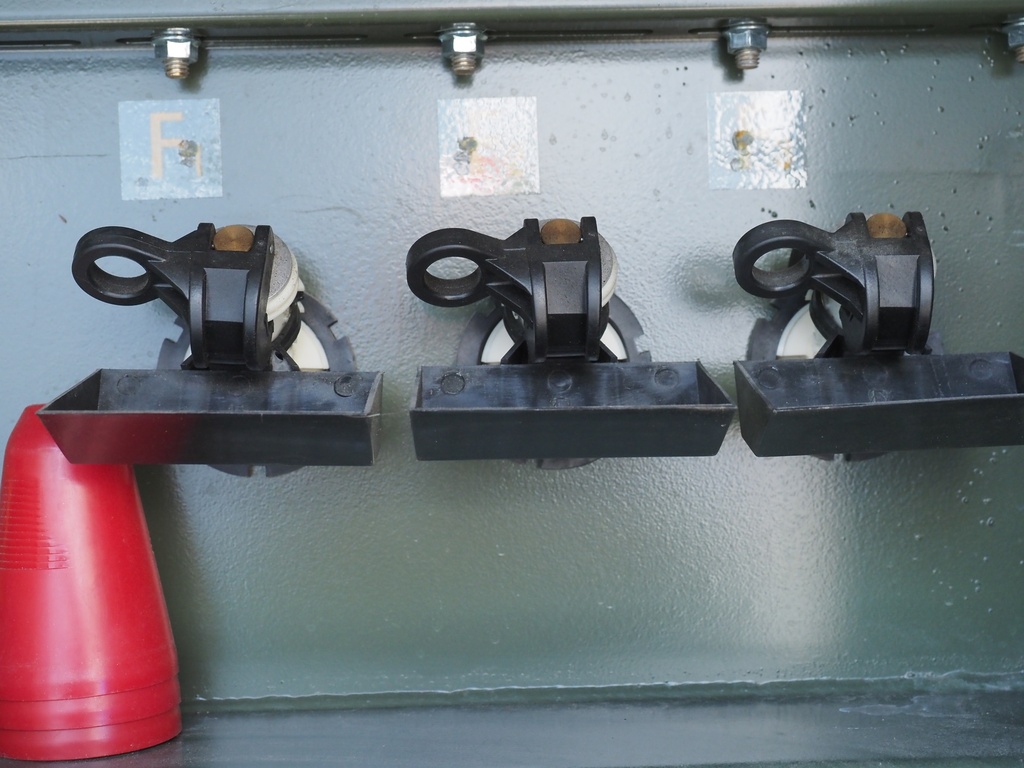

Pressure Relief Valve, Tap Changer, Bayonet Fuses

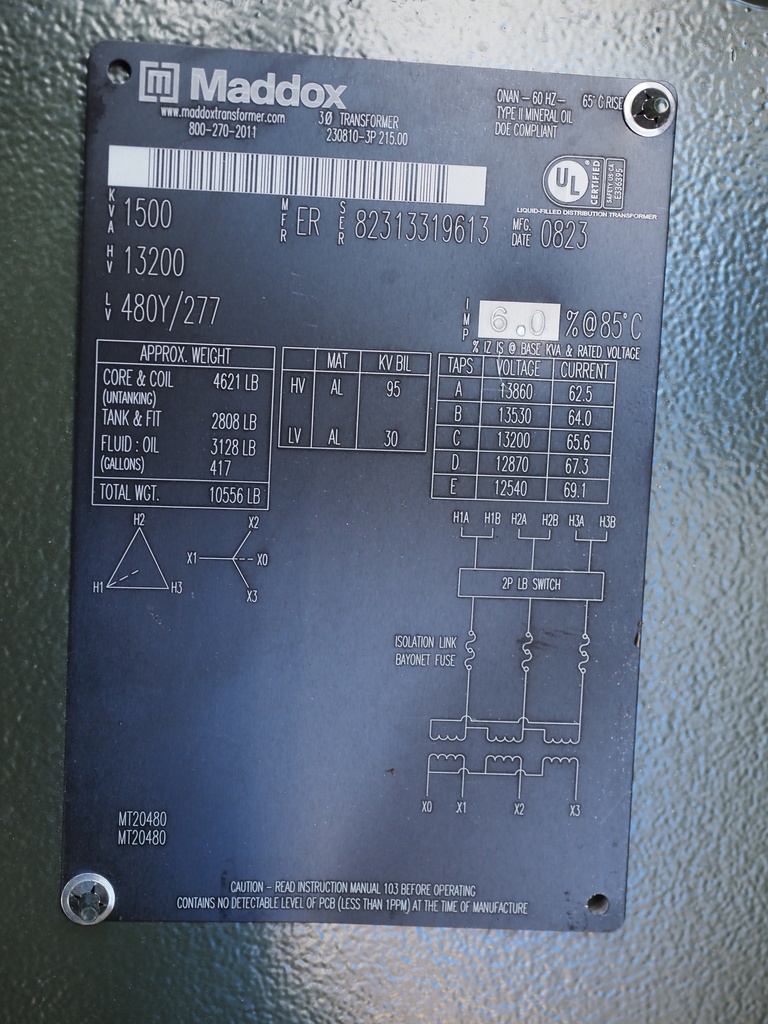

HV: 13200 Delta 95 kV BIL
LV: 480Y/277 30 kV BIL

Taps: 13800-13530-13200-12870-12540

Total Weight: 10556 lbs
Core & Coils: 4621 lbs
Tank & Fitt: 2808 lbs
Liquid (Oil): 3128 lbs (417 Gal)

73'H x 88"L x 67.5"D
