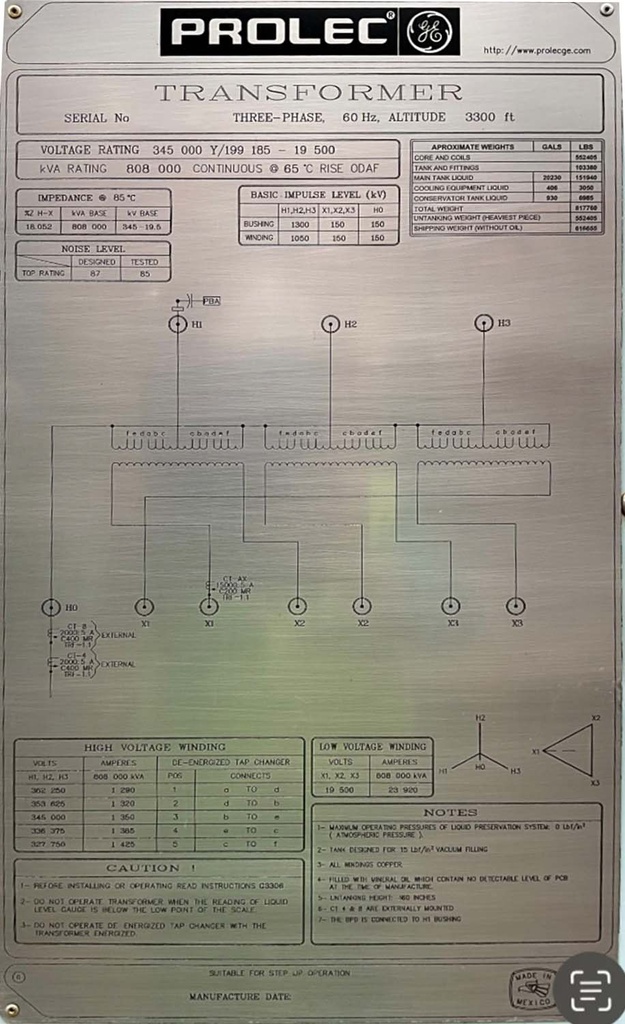

808 MVA 345000Y - 19500D GE Prolec Substation Transformer

One (1) 808 MVA GE Prolec Transformer GSU Transformer
3 Ph, 60 Hz, ODAF, Oil Preservation System,
65 Deg C Rise, All CU Windings, 18.052% Impedance,
Top-Side Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves, Mineral Oil Filled

HV: 345000 Wye BIL: 1050 kV
LV: 19500 Delta BIL: 150 kV

Taps: 362250-353625-345000-336375-327750

CORE & COIL WEIGHT 552405 lb
TANK & FITTINGS WEIGHT 103380 lb
FLUID WEIGHT 161975 lb
FLUID GALLONS 21566 gal (US)
TOTAL WEIGHT 817760 lb
