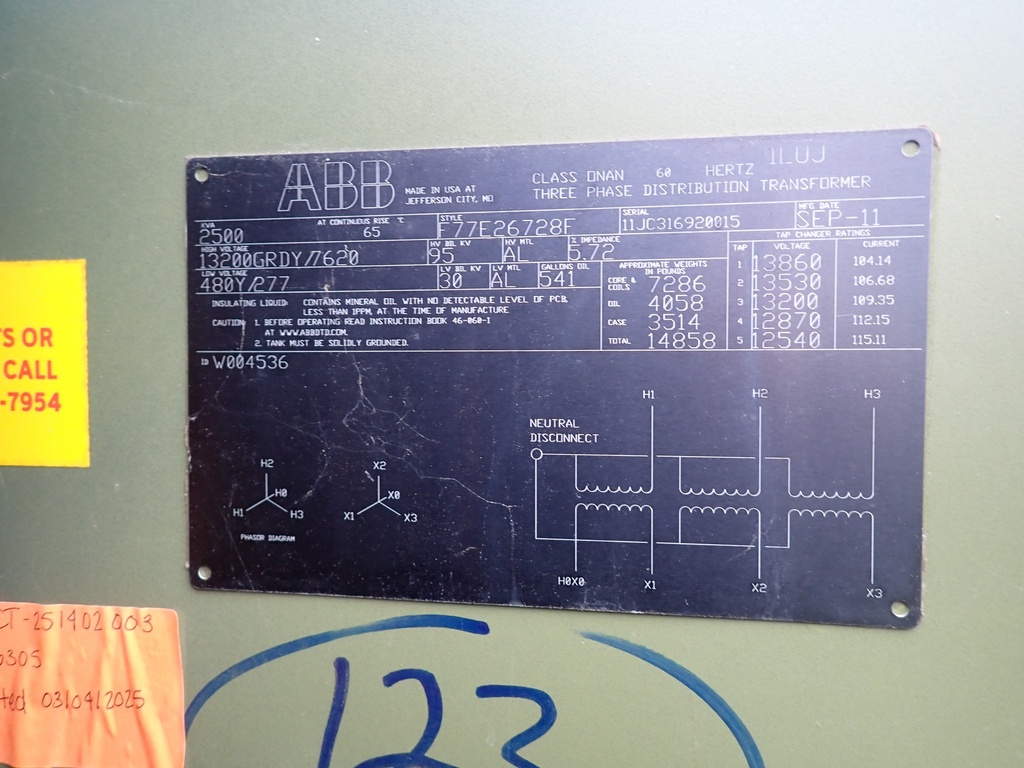

2500 KVA 13200 GRDY/7620 480Y/277 ABB Pad-Mount, DF/RF

2500 KVA ABB Pad-Mount Transformer, 3 Ph, 60hz, Class ONAN,
65 Deg C Rise, All Alumunium Windings, Dead Front, Radial Feed,
Tap Changer, Pressure Relief Valve, Drain and Sample Valve, 5.72% IMP

HV: 13200 GRDY/7620 95 kV BIL
LV: 480Y/277 30 kV BIL

TAPS: 13860-13530-13200-12870-12540

Total Weight: 14858 lbs
Core & Coils: 7286 lbs
Tank & Fitts: 3514 lbs
Liquid (Oil): 4058 lbs (451 Gal)

DIMS: 72"H x 97"W x 69"D
