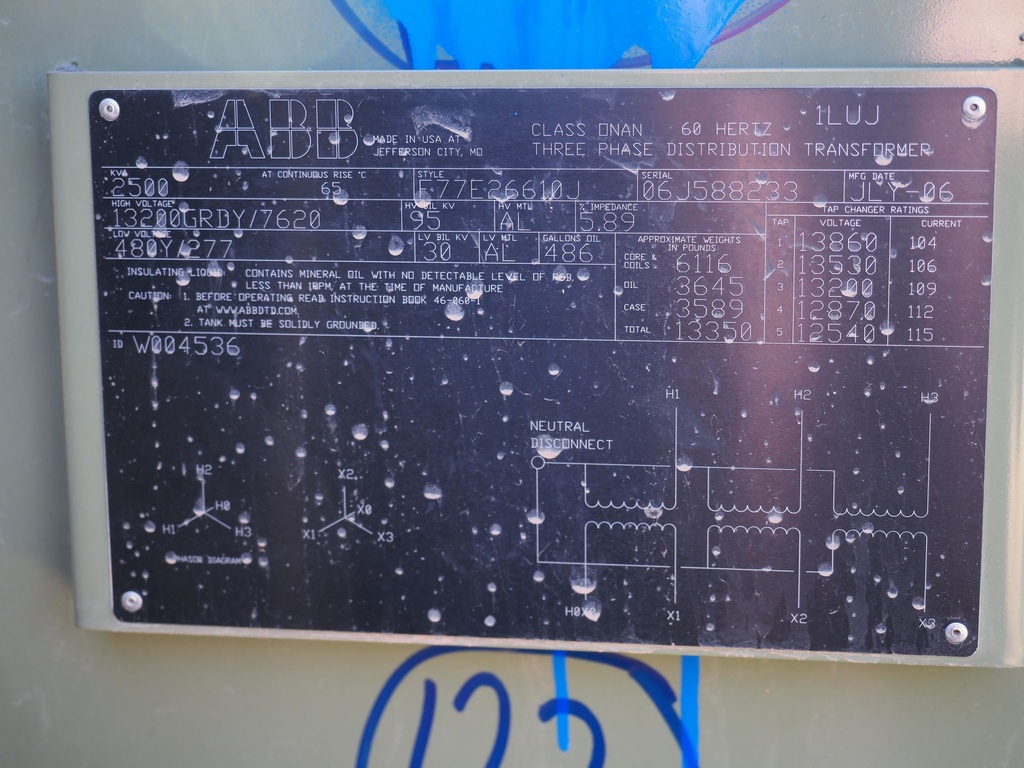

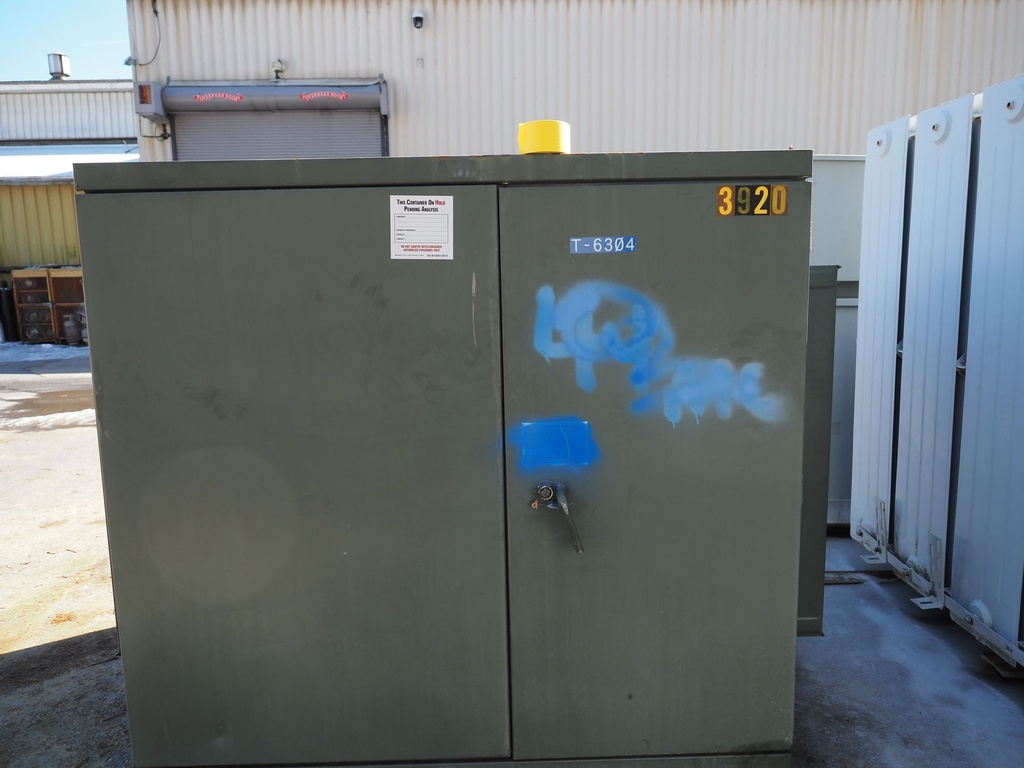

2500 KVA 13200 GRDY/7620 480Y/277, ABB, Pad-Mount, DF/RF
Product Number:
046403
Full Product Description
2500 KVA ABB Pad-Mount Transformer, 3 Ph, 60hz, Class ONAN
65 Deg C Rise, All ALuminum Windings, Dead Front, Radial Feed,
Pressure Relief Valve, Drain and Sample Valve, Tap Changer, 5.89% IMP
HV: 13200 GRDY/7620 95 kV BIL
LV: 480Y/277 30 kV BIL
TAPS: 13860-13530-13200-12870-12540
Total Weight: 13350 lbs
Core & Coils: 6116 lbs
Tank & Fitts: 3589 lbs
Liquid (Oil): 3645 lbs (486 Gal)
DIMS: 67.5" x 94"W x 72.5"D
