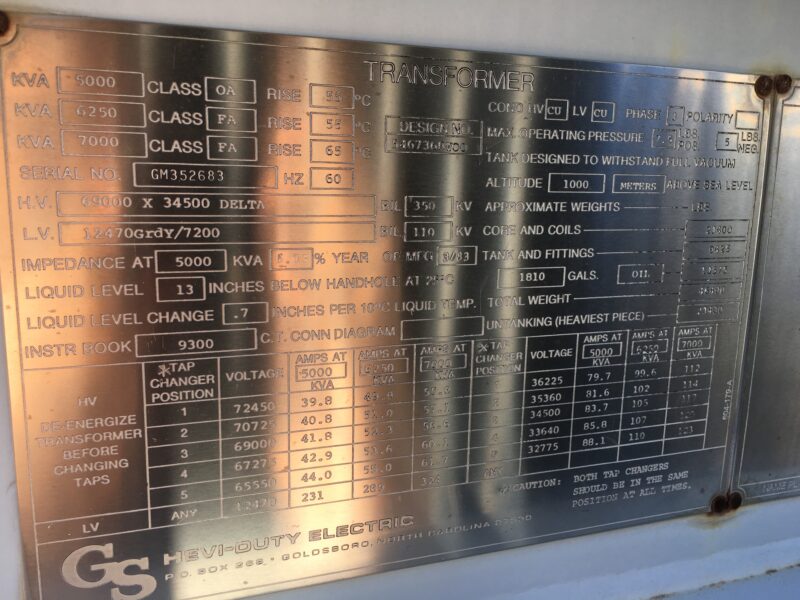

5000KVA 69000 x 34500 D - 12470 GrdY Hevi-Duty Electric Substation Transformer
Product Number:
046401
Full Product Description
One (1) 5/6.25/7 MVA Hevi-Duty Electric Substation Transformer
3 ph, 60 Hz, OA/FA/FA, 55/65 Deg C Rise,
All Copper Windings, 5.15% Impedance, Liquid
Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,
Drain & Sample Valve, Top-Top Bushings
HV1: 69000 Delta BIL: 350 KV
HV2: 34500 Delta BIL: 350 KV
LV: 12470 Wye BIL: 110 KV
HV1 Taps: 72450-70725-69000-67275-65550
HV2 Taps: 36225-35360-34500-33640-32775
CORE & COIL WEIGHT lb
TANK & FITTINGS WEIGHT lb
FLUID WEIGHT lb
FLUID GALLONS gal (US)
TOTAL WEIGHT lb
Dimensions: Coming Soon
