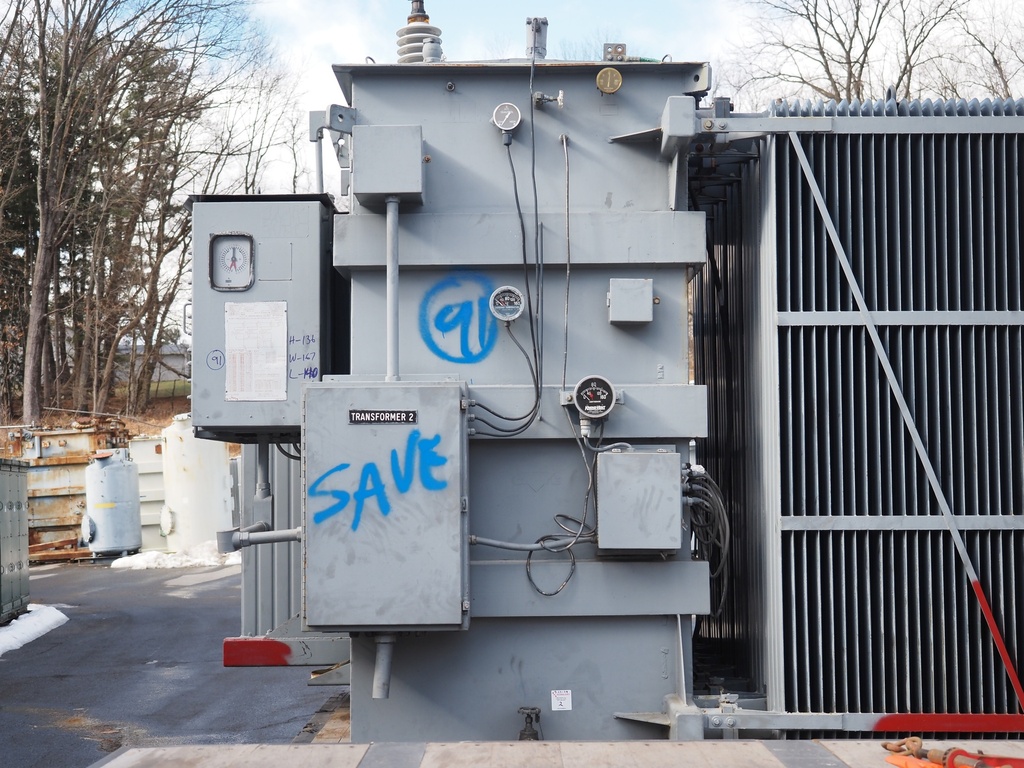

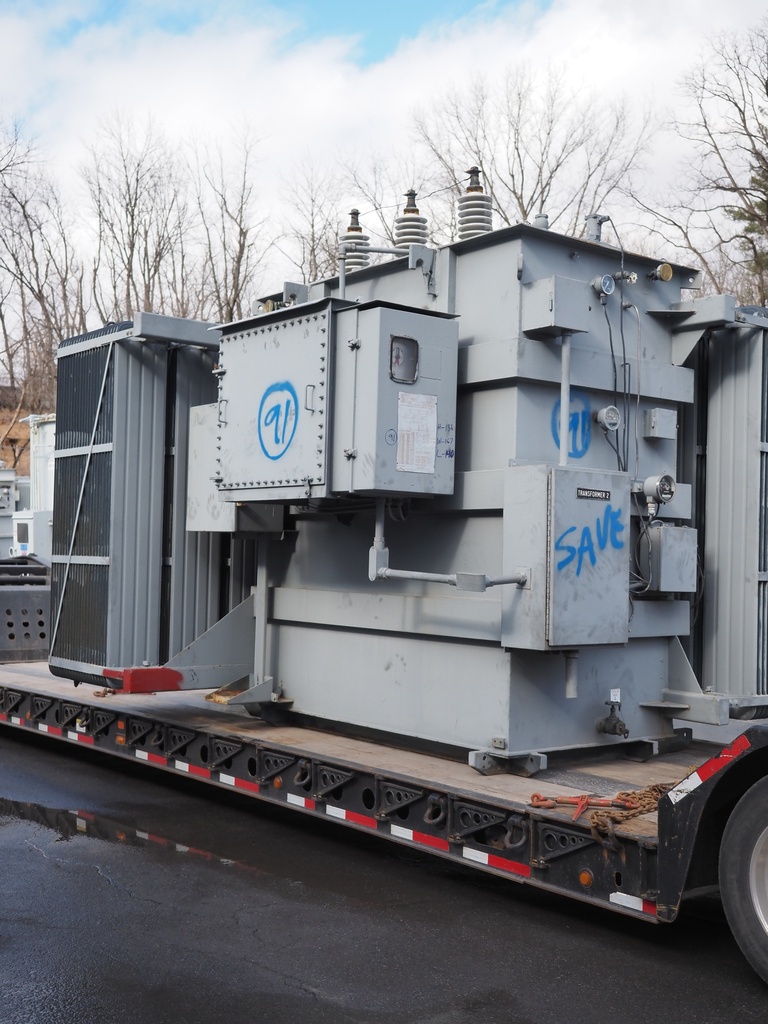

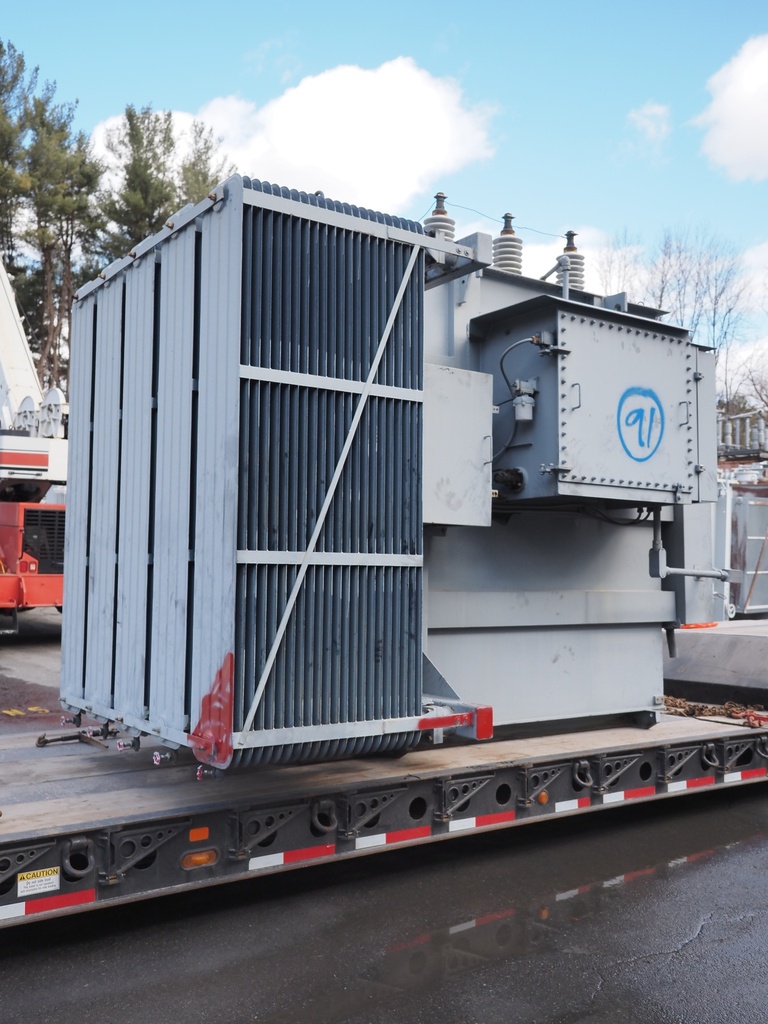

10 MVA 26400 D - 4160 Y Carte Substation Transformer with LTC

One (1) 10/12.5 MVA Carte Substation Transformer with LTC

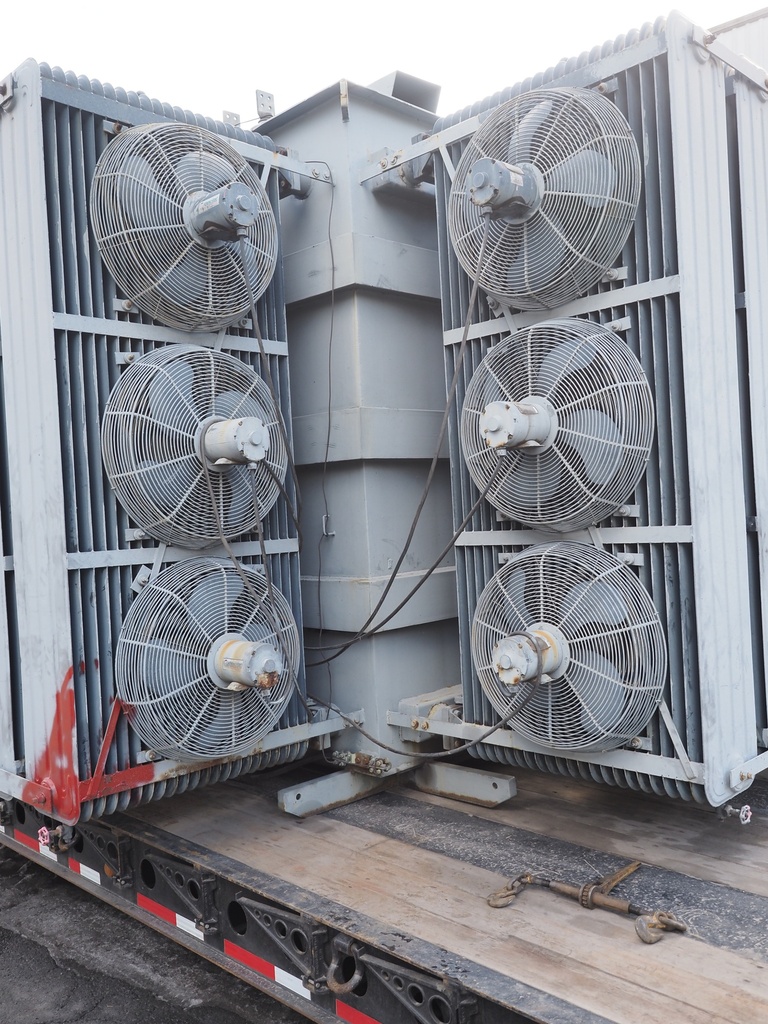

3 Phase, 60 Hz, OA/FA, 6.10% Impedance, 55 Deg C Rise,
All AL Windings, Liquid level Gauge, Liquid Temp Gauge, Vacuum
Pressure Gauge, Pressure Relief Device, Drain & Sample Valve,
Mineral Oil Filled

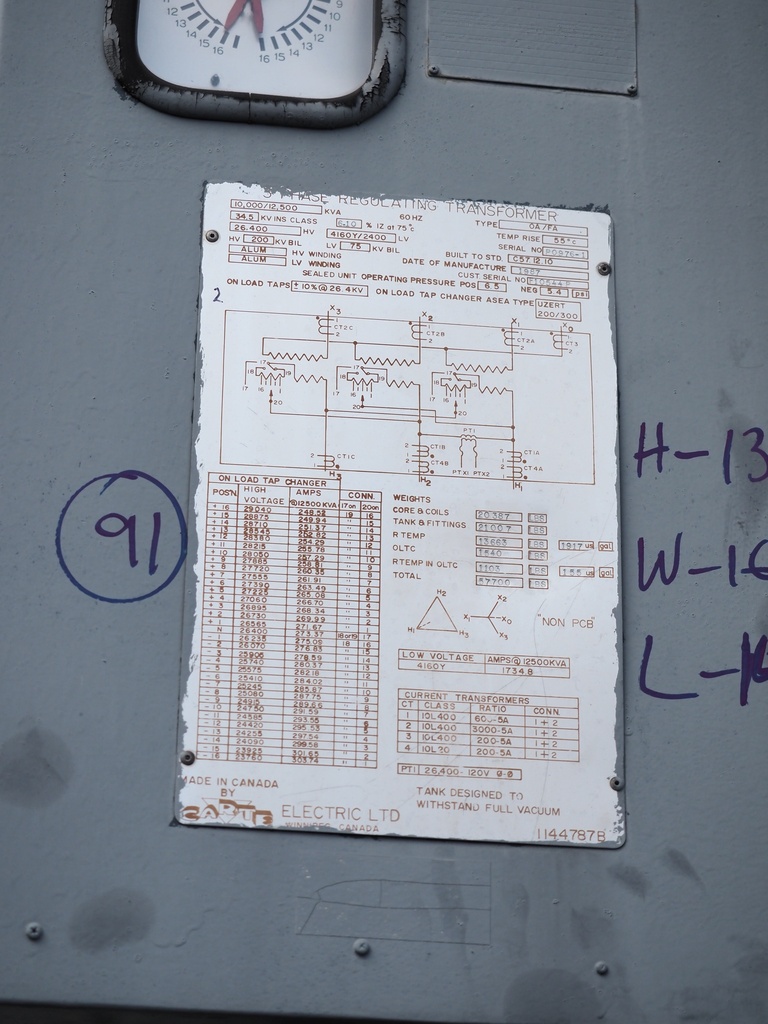

HV: 26400 Delta BIL: 200 kV
LV: 4160 Wye BIL: 75 kV

HV Taps: +/- 0.625% in 16 Steps up & down

CORE & COIL WEIGHT 20387 lb
TANK & FITTINGS WEIGHT 21007 lb
FLUID WEIGHT 13663 lb
FLUID GALLONS 1917 gal (US)
TOTAL WEIGHT 57700 lb

TOTAL DIMENSIONS Coming Soon
