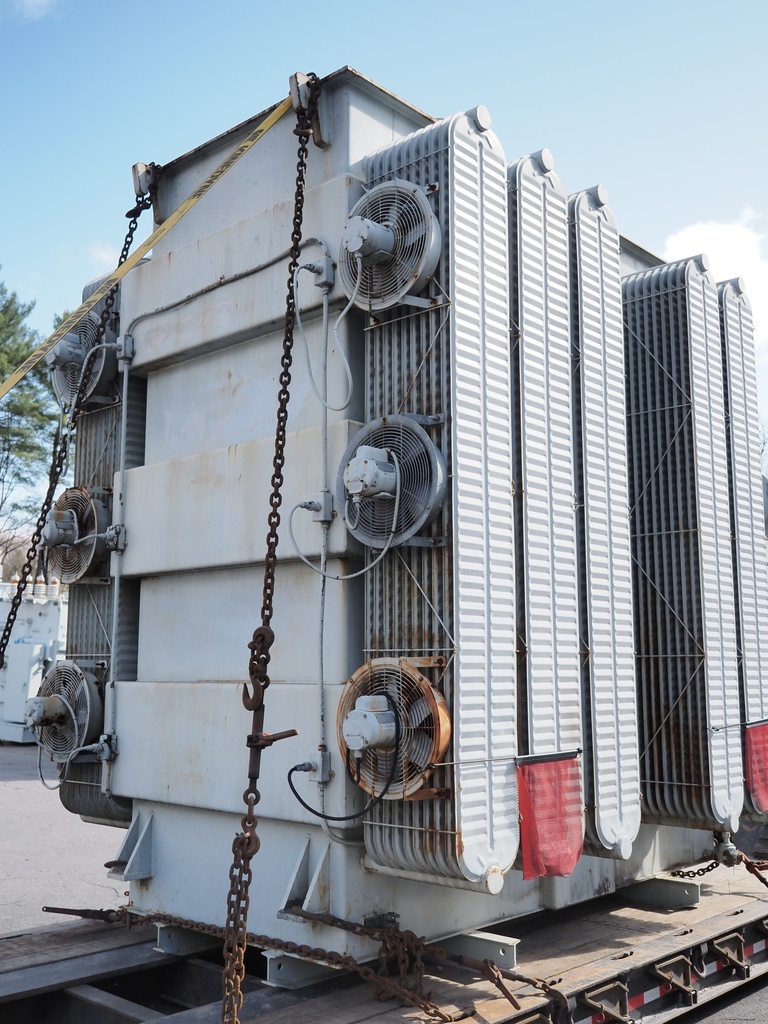

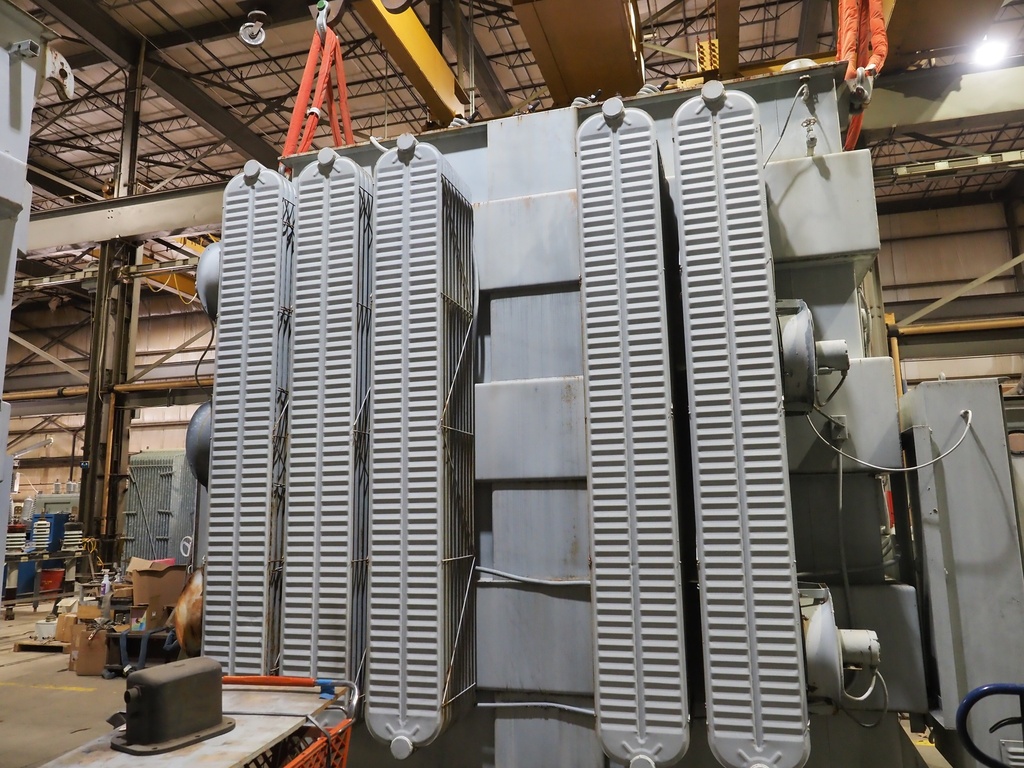

12 MVA 115000D - 12470Y Kuhlman Substation Transformer

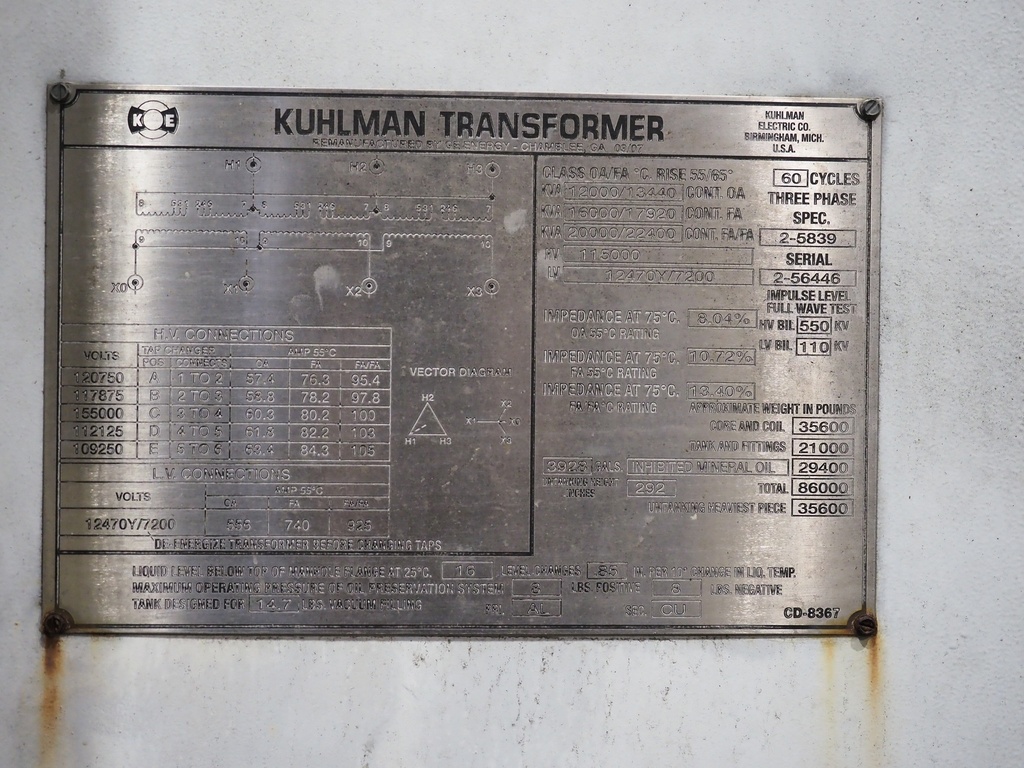

One (1) 12/13.4/16/17.9/20/22.4 MVA Kuhlman Substation Transformer
3 Phase, 60 Hz, OA/FA/FA, 8.04% Impedance, 55/65 Deg C Rise,
AL/CU Windings, Liquid level Gauge, Liquid Temp Gauge, Vacuum
Pressure Gauge, Pressure Relief Device, Drain & Sample Valve,
Mineral Oil Filled

HV: 115000 Delta BIL: 550 kV
LV: 12470 Wye BIL: 110 kV

Taps: 120750-117875-115000-112125-109250

CORE & COIL WEIGHT 35600 lb
TANK & FITTINGS WEIGHT 21000 lb
FLUID WEIGHT 29400 lb
FLUID GALLONS 3923 gal (US)
TOTAL WEIGHT 86000 lb

TOTAL DIMENSIONS Coming Soon
