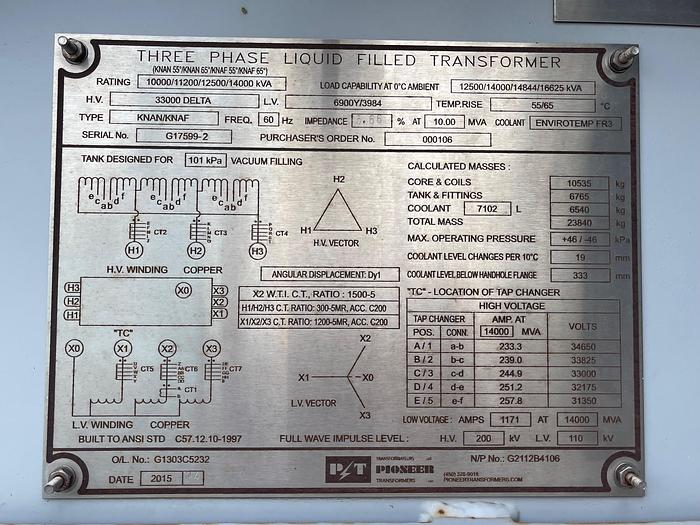

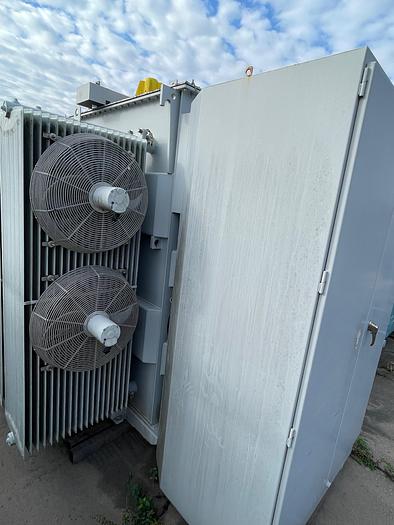

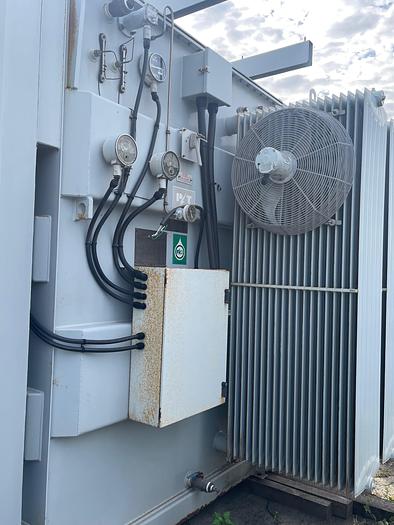

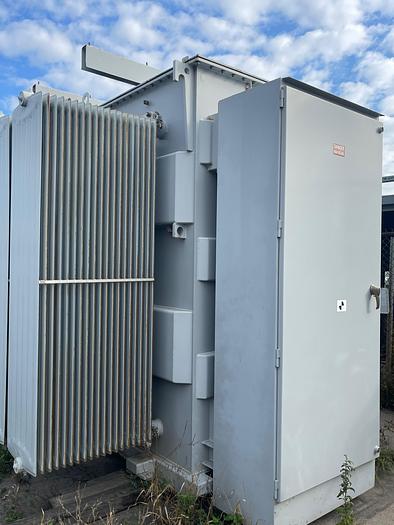

10 MVA 33000D - 6900Y Pioneer Substation Transformer

One (1) 10/11.2/12.5/14 MVA Pioneer Substation Transformer
3 ph, 60 Hz, KNAN/KNAN/KNAF/KNAF, 55/65 Deg C Rise,
All Copper Windings, 5.66% Impedance, Liquid

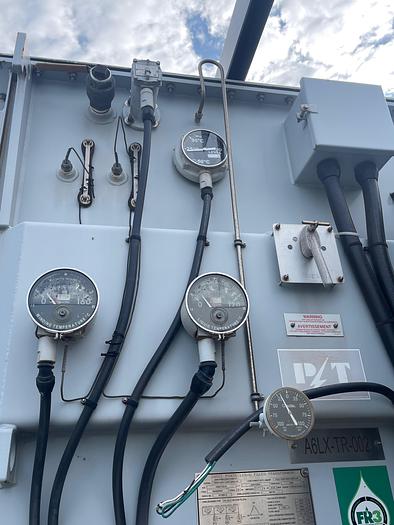

Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,
Pressure Release Valve, Winding Temp Gauge,
Drain & Sample Valve

HV: 33000 Delta BIL: 200 KV
LV: 6900 Wye BIL: 110 KV

Taps: 34650-33825-33000-32175-31350

CORE & COIL WEIGHT 23225 lb
TANK & FITTINGS WEIGHT 14914 lb
FLUID WEIGHT 14418 lb
FLUID GALLONS 1876 gal (US)
TOTAL WEIGHT 52558 lb
