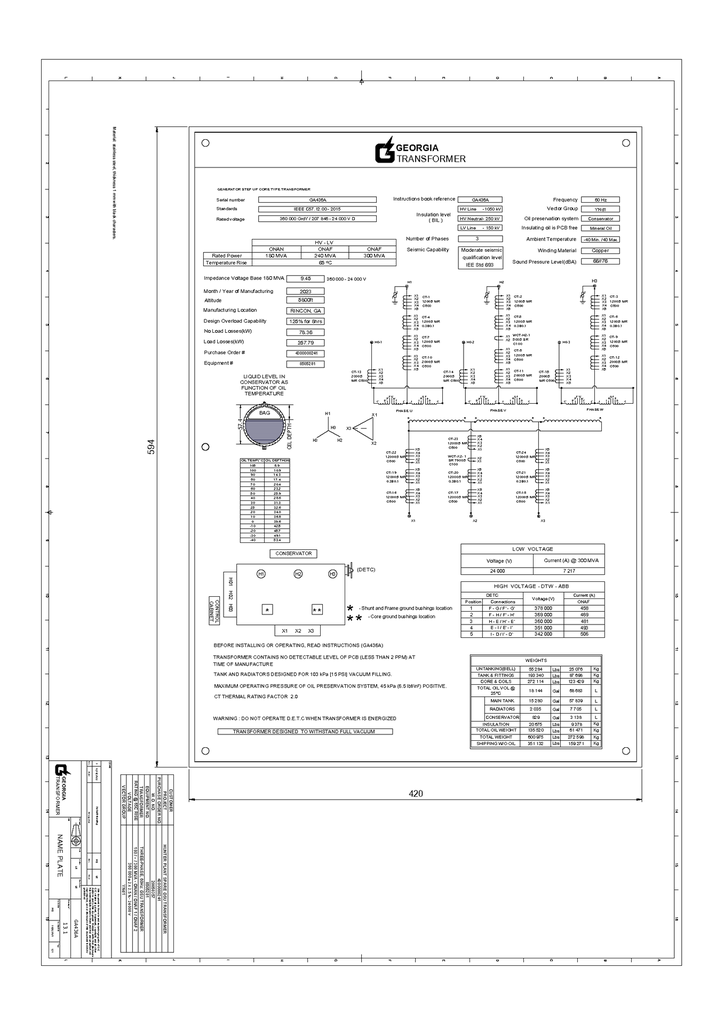

180 MVA 360000 GrdY - 24000 GrdY Georgia Transformer GSU Transformer

One (1) 180/240/300 MVA Georgia Transformer GSU Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Oil Preservation System,
65 Deg C Rise, All CU Windings, 9.45% Impedance,
Top-Side Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves, Mineral Oil Filled

HV: 360000 GrdY BIL: 1050 kV
LV: 24000 GrdY BIL: 150 kV

Taps: 378000-369000-360000-351000-342000

CORE & COIL WEIGHT 272114 lb
TANK & FITTINGS WEIGHT 193340 lb
FLUID WEIGHT 135520 lb
FLUID GALLONS 18144 gal (US)
TOTAL WEIGHT 600975 lb
