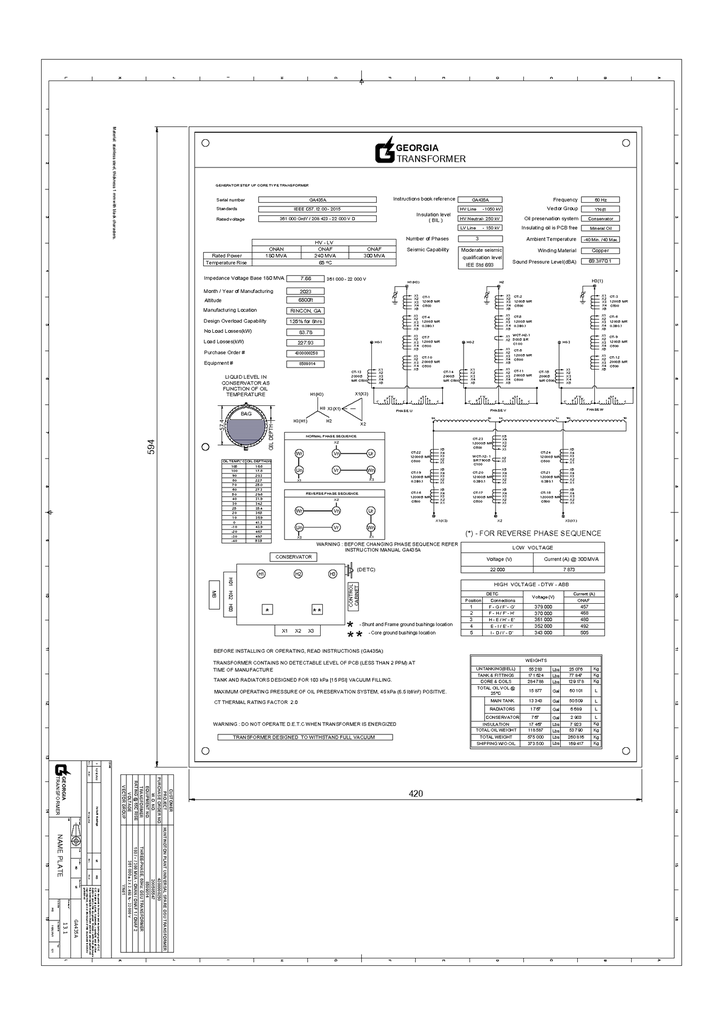

180 MVA 361000 GrdY - 22000 GrdY Georgia Transformer GSU Transformer

One (1) 180/240/300 MVA Georgia Transformer GSU Transformer
3 Ph, 60 Hz, ONAN/ONAF/ONAF, Oil Preservation System,
65 Deg C Rise, All CU Windings, 7.66% Impedance,
Top-Side Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauges, Pressure Relief Device,
Drain & Sample Valves, Mineral Oil Filled

HV: 361000 GrdY BIL: 1050 kV
LV: 22000 GrdY BIL: 150 kV

Taps: 379000-370000-361000-352000-343000

CORE & COIL WEIGHT 284788 lb
TANK & FITTINGS WEIGHT 171624 lb
FLUID WEIGHT 118587 lb
FLUID GALLONS 15877 gal (US)
TOTAL WEIGHT 575000 lb
