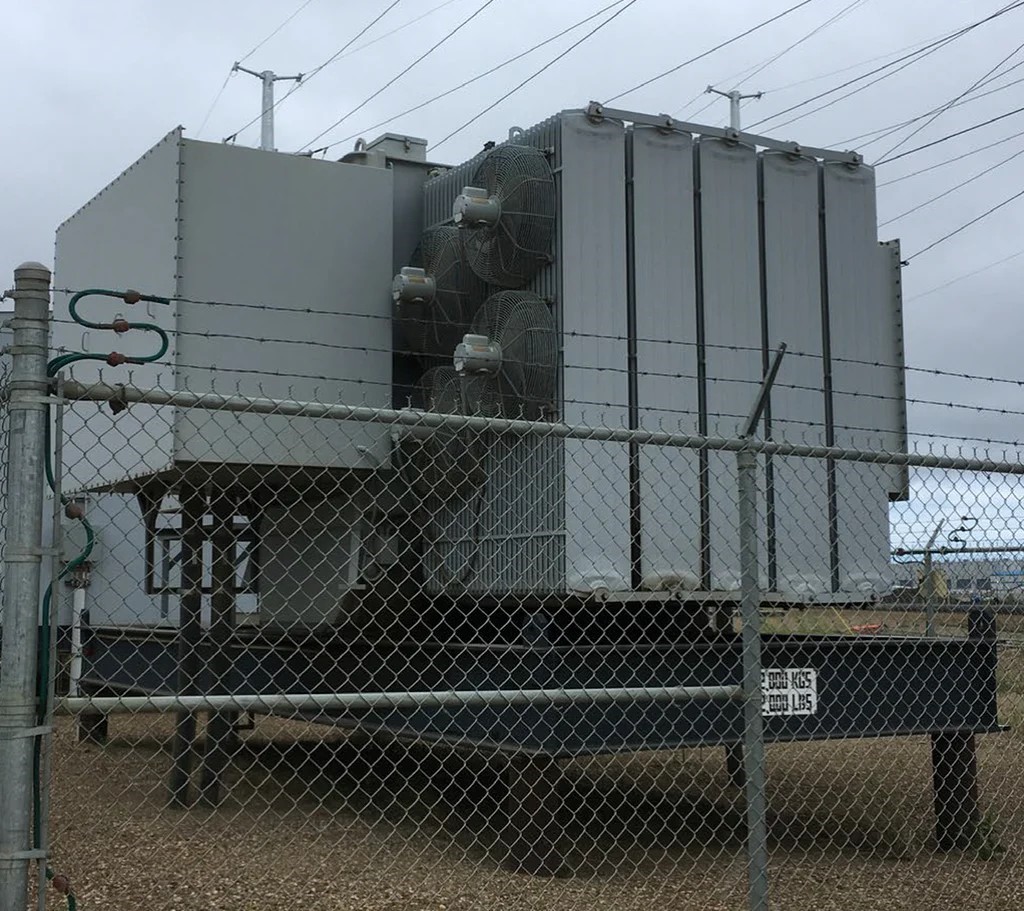

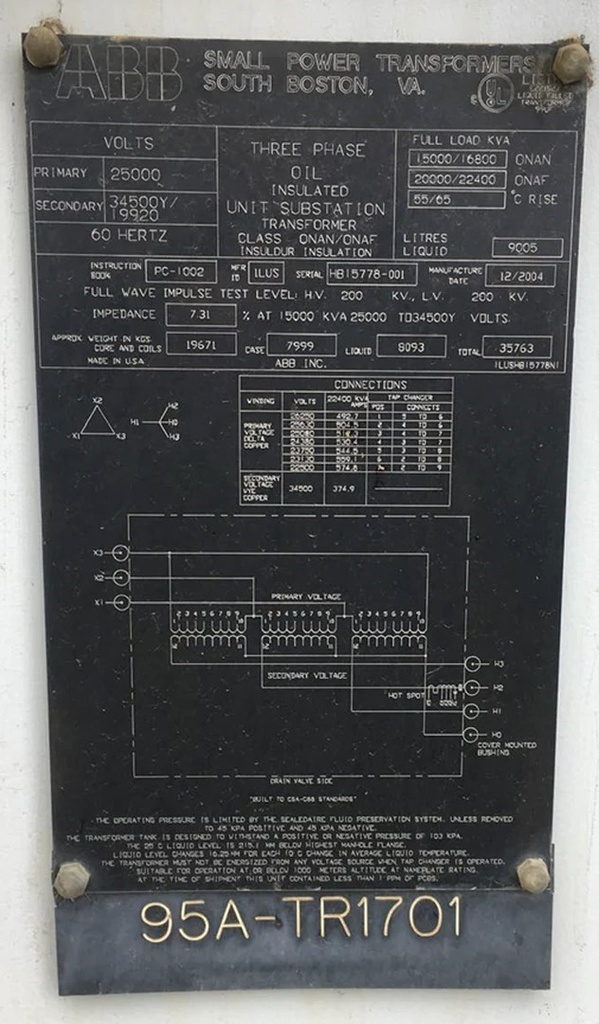

15 MVA 25000D - 34500Y ABB Substation Transformer

KVA: 15000 KVA
Manufacturer: ABB
Primary - First: 25000 V
Primary - First Vector: Delta
Secondary - First: 34500 V
Secondary - First Vector: Wye
Phase: 3
HERTZ: 60
CLASS: ONAN/ONAF
TEMPERATURE RISE: 55/65 °C
IMPEDANCE: 7.31
Primary - First BIL: 200 kV
Secondary - First BIL: 200 kV
HV BUSHING LOCATION: Side
HV Air Terminal Chamber: Full
LV BUSHING LOCATION: Side
LV Air Terminal Chamber: Full
CORE & COIL WEIGHT: 19671 kg
TANK & FITTINGS WEIGHT: 7999 kg
FLUID WEIGHT: 8093 kg
TOTAL WEIGHT: 35763 kg
FLUID TYPE: Mineral Oil
Manufacture Date: 12/2004
